coolcept fleX XL

StecaGrid 4213, StecaGrid 5513, StecaGrid 7013, StecaGrid 8513, StecaGrid 10013

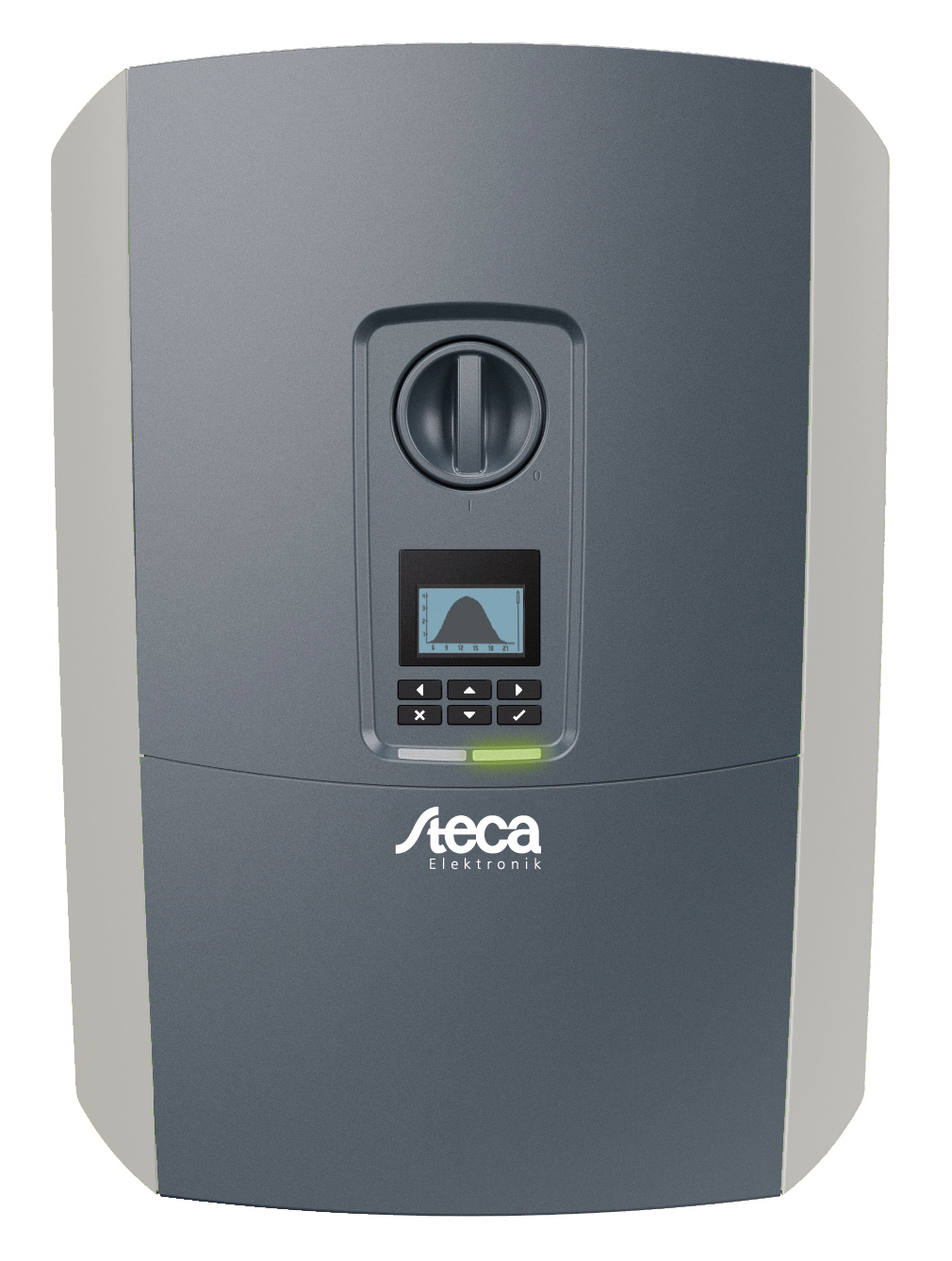

coolcept flex XL G Display web.jpg

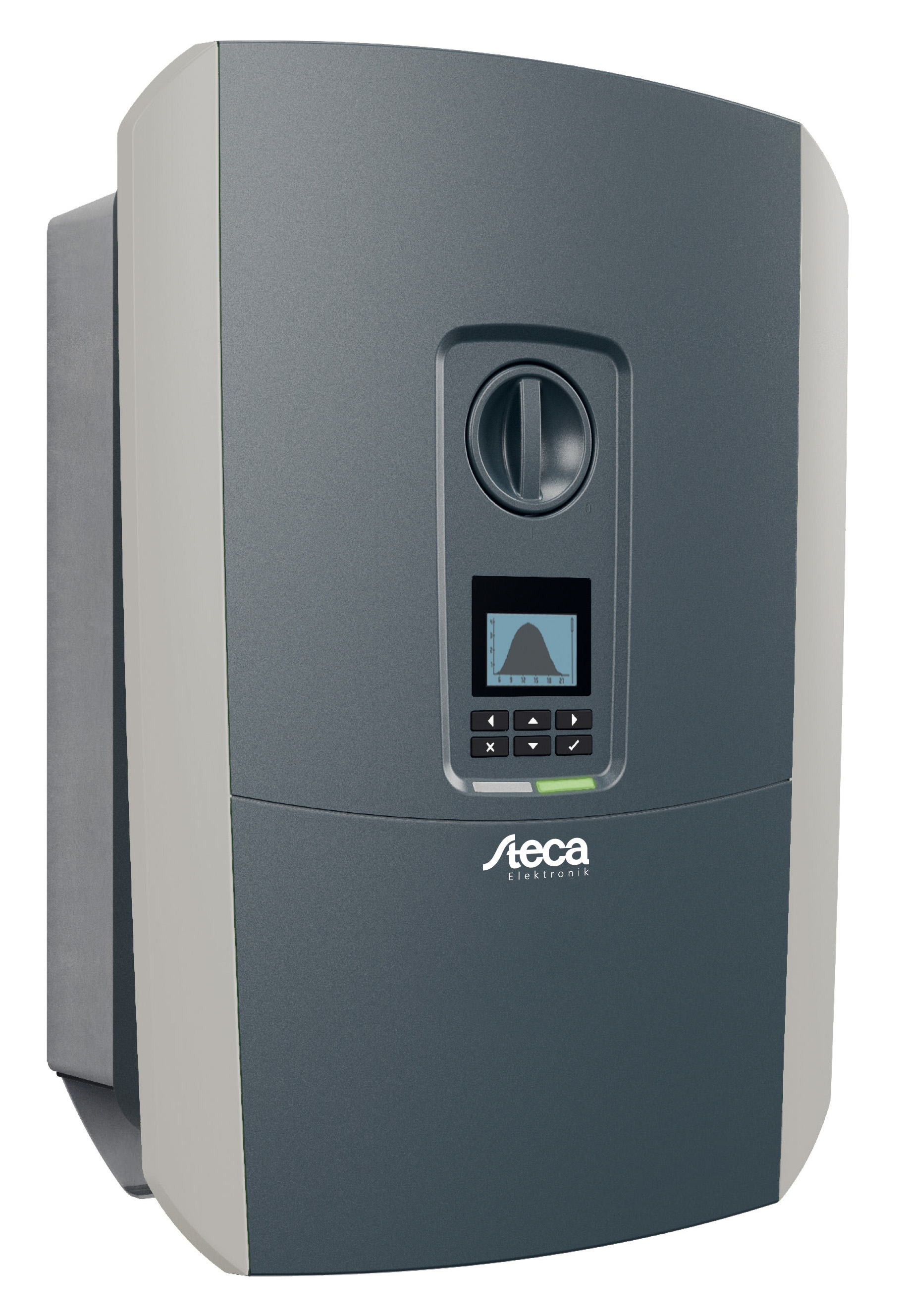

coolcept flex XL S Display web.jpg
X
coolcept flex XL G Display web.jpg
coolcept flex XL S Display web.jpg

Description

Simply flexible, powerful and efficient

Thanks to its broad input voltage range and different power classes, the coolcept fleX XL is suited for almost all forms of equipment. The coolcept fleX XL provides a product range of 4.2 – 10 kW and contains two MPP trackers. This broad voltage and current range thus makes all arrangements easily possible. Maximum yields can be achieved as a result using innovative shadow management.
Through the high flexibility of the coolcept fleX XL almost any photovoltaics system can be fitted with this Steca inverter.

Simply more communicative

The large number of communication interfaces renders further components for monitoring unnecessary. In addition, the coolcept fleX XL supports the advanced technologies which are found in the smart home area.
- Display, data logger, system monitoring, network and control response interfaces are integrated as standard
- Local and mobile system monitoring via PC, smartphone or tablet
- Free-of-charge solar portal – Steca sunCloud – for monitoring of the PV system
- Commissioning, configuration and display of graphically arranged yield data directly via the inverter display
- Connection of an external energy meter as an option
- EEBus and Sunspec for smart home integration

Simply more comfortable

The design of the coolcept fleX XL was conceived with comfortable, safe installation and operation in mind.
- Ergonomic grip rails for easy handling
- Front-fitted, robust circuit breaker with an easy-to-read switching status
- Safe installation due to a clear, separate terminal compartment and protected power electronics
- Tool-free installation of the PV plug thanks to Phoenix SUNCLIX

Downloads

Certificates

  •  coolcept fleX XL certificate Declaration of confirmity EN · pdf · 0.765 MB
  •  coolcept fleX XL certificate VDE-AR-N 4105:2011-08 · pdf · 0.843 MB
  •  coolcept fleX XL certificate SE GCC EN 50438:2013 · pdf · 0.652 MB
  •  coolcept fleX XL certificate NO EN 50438:2013 · pdf · 0.659 MB
  •  coolcept fleX XL certificate PL EN 50438:2013 · pdf · 0.670 MB
  •  coolcept fleX XL certificate EN EN 50438:2013 · pdf · 0.657 MB
  •  coolcept fleX XL certificate DIN VDE 0126-1-1 (VDE V 0126-1-1):2013-08 · pdf · 0.642 MB
  •  coolcept fleX XL certificate UTE C15-712-1, Juillet 2013 · pdf · 0.656 MB
  •  coolcept fleX XL certificate UNE 206007-1:2013 · pdf · 0.764 MB
  •  coolcept fleX XL certificate ÖVE/ÖNORM E 8001-4-712/A2:2016 · pdf · 0.650 MB
  •  coolcept fleX XL certificate RD 1699/2011 y IEC 62109-2:2011 · pdf · 0.653 MB
  •  coolcept fleX XL certificate IEC 61727:2004-12 and IEC 62116:2014 · pdf · 0.647 MB
  •  coolcept fleX XL certificate Engineering Recommendation G83/2 · pdf · 0.661 MB

Commercial guarantee extension

  •  coolcept fleX XL commercial guarantee extension FR · pdf · 0.146 MB
  •  coolcept fleX XL commercial guarantee extension PL · pdf · 0.329 MB
  •  coolcept fleX XL commercial guarantee extension DE · pdf · 0.050 MB
  •  coolcept fleX XL commercial guarantee extension EN · pdf · 0.151 MB

Product data sheet

  •  coolcept fleX XL productdatasheet DE · pdf · 0,224 MB
  •  coolcept fleX XL productdatasheet EN · pdf · 0.224 MB
  •  coolcept fleX XL productdatasheet FR · pdf · 0,224 MB

Further downloads

  •  coolcept fleX XL download Flyer DE · pdf · 1.966 MB
  •  coolcept fleX XL download Flyer EN · pdf · 1.455 MB
  •  coolcept fleX XL download manufacturers declaration EN · pdf · 0.114 MB
  •  coolcept fleX XL download Herstellereklärung DE · pdf · 0.117 MB

Manuals

  •  coolcept fleX XL manual _short · pdf · 7.373 MB

Product pics, technical drawings, etc.

  •  coolcept fleX XL product pic · jpg, 300 DPI, high quality · 0.697 MB
  •  coolcept fleX XL product pic · jpg, 72 DPI, web quality · 0.133 MB
  •  coolcept fleX XL product pic 3D · jpg, 300 DPI, high quality · 1.448 MB
  •  coolcept fleX XL product pic 3D · jpg, 72 DPI, web quality · 0.517 MB

Technical data

 StecaGrid 4213StecaGrid 5513StecaGrid 7013StecaGrid 8513StecaGrid 10013
DC input side (PV generator)
Maximum input voltage
1000 V
Operating input voltage range
120 V … 720 V
Number of MPP tracker
2
Maximum input current
2 x 13.0 A
Maximum input power at maximum active output power
4330 W
5670 W
7220 W
8760 W
10310 W
AC output side (Grid connection)
Grid voltage
320 V … 460 V (depending on regional settings)
Rated grid voltage
400 V
Maximum output current
6.7 A
8.8 A
11.2 A
13.6 A
16.0 A
Maximum active power (cos phi = 1)
4200 W
5500 W
7000 W
8500 W
10000 W
Maximum apparent power
4200 VA
5500 VA
7000 VA
8500 VA
10000 VA
Rated power
4200 W
5500 W
7000 W
8500 W
10000 W
Rated frequency
50 Hz
Frequency
47 Hz … 52.5 Hz (depending on regional settings)
Night-time power loss
< 7.9 W
Feeding phases
three-phase
Total harmonic distortion (cos phi = 1)
< 3 %
Power factor cos phi
0.8 capacitive … 0.8 inductive
Characterisation of the operating performance
Max. efficiency
97.1 %
97.1 %
97.2 %
97.2 %
97.2 %
European efficiency
96.2 %
96.2 %
96.5 %
96.5 %
96.5 %
Own consumption
< 7.9 W
Power derating at full power from
50 °C (Tamb)
Safety
Isolation principle
yes
Grid monitoring
yes, integrated
Residual current monitoring
yes, integrated (internal personal protection according to EN 62109-2, RCCB type B)
Protection class
RCCB Typ B
Operating conditions
Area of application
outdoors & indoors
Ambient temperature
-20 °C … +60 °C
Relative humidity
4 % … 100 %
Noise emission (typical)
42 dBA
Fitting and construction
Degree of protection
IP 65 / IP 55 (casing/fan)
Overvoltage category
III (AC), II (DC)
DC Input side connection
Phoenix Contact SUNCLIX (2 pairs)
AC output side connection
Spring-type terminal strip
Dimensions (X x Y x Z)
563 x 405 x 233 mm
Weight
17.9 kg
17.9 kg
19.9 kg
19.9 kg
19.9 kg
Communication interface
Ethernet LAN (RJ45), Connection of energy meter for collecting energy data (Modbus RTU), 4x Digital inputs (e.g. for digital ripple control receiver), USB 2.0, Potential-free contact for self-consumption control, Webserver (user interface)
Integrated DC circuit breaker
yes, compliant with VDE 0100-712
Cooling principle
temperature controlled fan, variable speed, internal (dustproof)
Test certificate
CE, GS, EN 62109-1, EN 62109-2, EN 60529, CEI 0-21, EN 50438*, G83/2, IEC 61727, IEC 62116, RD 1699, TOR D4, UNE 206006 IN, UNE 206007-1 IN, UTE C15-712-1, VDE 0126-1-1, VDE-AR-N 4105
