Description

Reliable technology – even more versatile

With coolcept fleX KATEK Memmingen introduces the successor generation to the established coolcept-topology. Coolcept fleX offers a creative energy concept for any modern home.

What is coolcept fleX?
The brand-new electronic platform is being used as the technological heart of the next generation of solar electronics and connects photovoltaics-based power generation, load management, and even e-mobility for the first time ever. The coolcept fleX platform is open with regard to its future use, it is still implemented on a single board. This extremely small and compact format permits the use of affordable standard components on the circuit board. Thus making it possible to use the same device
for various differing applications.

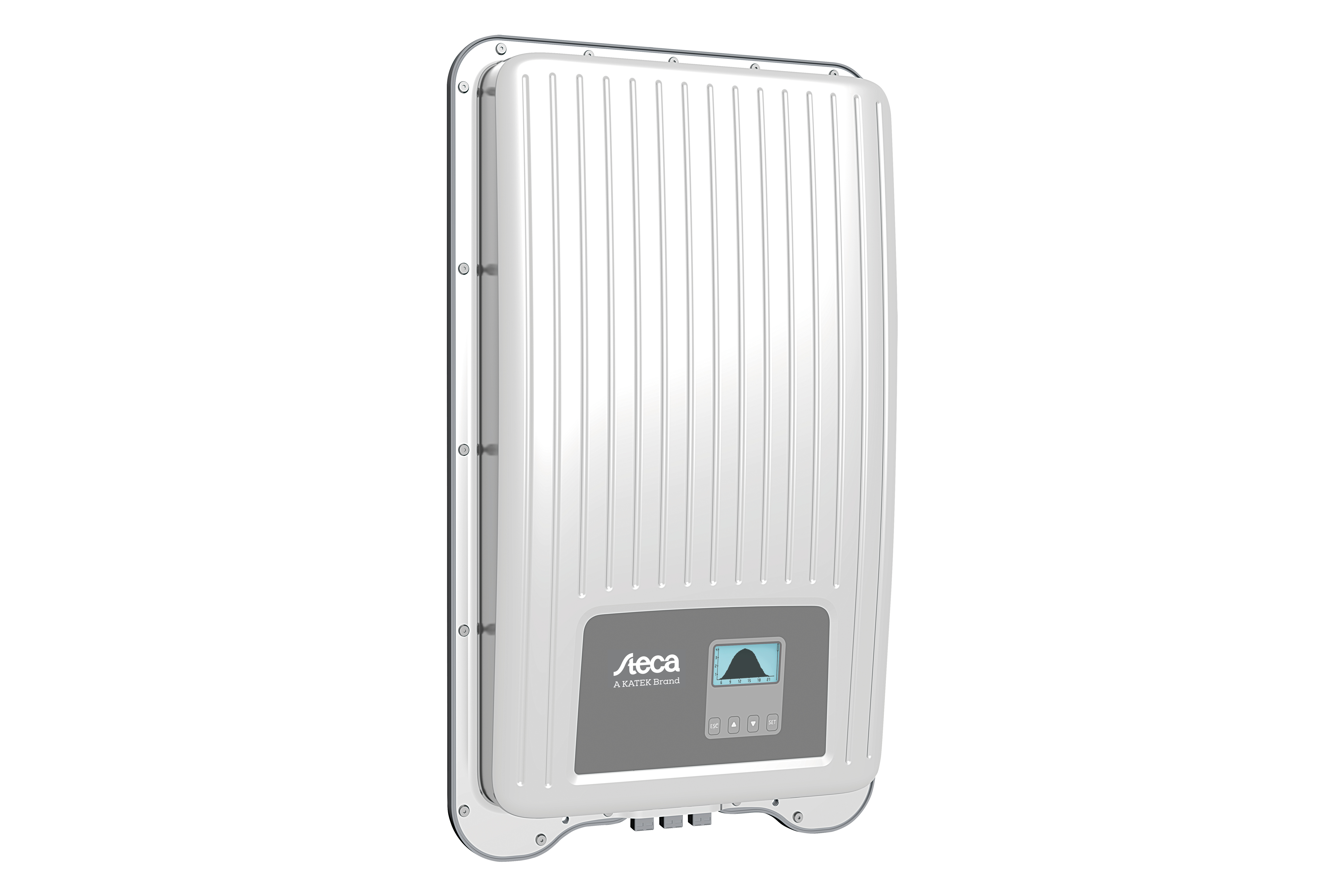

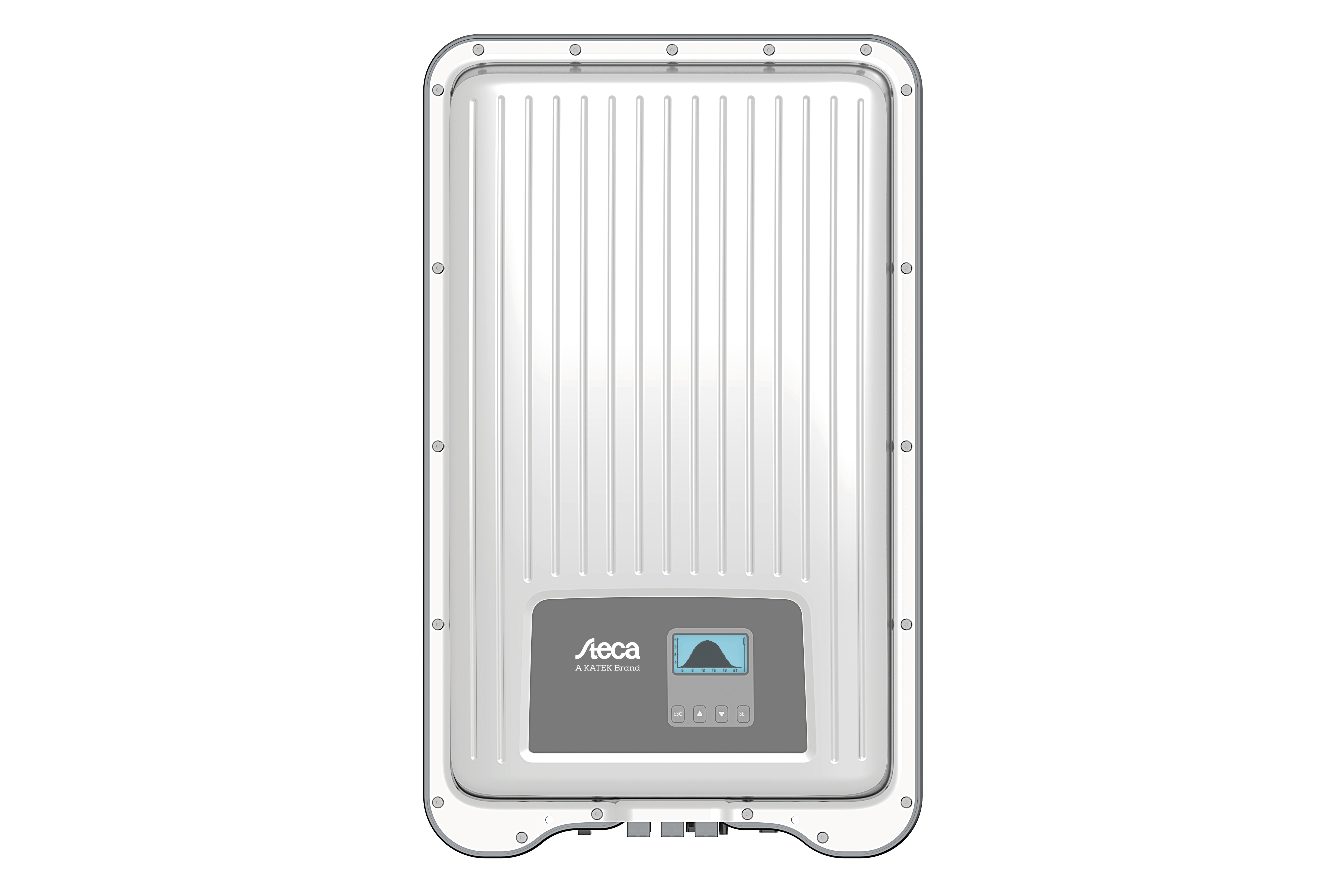

coolcept fleX inverter
Coolcept fleX is the centerpiece of the new inverter generation.
As usual, with nominal powers of 1.5 – 4.6 kW, they attain particularly high peak efficiencies.

The advantages of coolcept flex inverters
coolcept fleX is flexible.
Multiple MPP trackers allow handling simple or even complicated module fields.

coolcept fleX is tough und uncomplicated.
Indoor and outdoor installation is enabled by a robust IP65- Casing. However, the product line is not only one of the lightest in its class, but is also very easy to install too.

coolcept fleX is future-proof.
KATEK Memmingen is offering an integrated, future-proof concept for energy generation, consumption, storage and feeding for the modern home of tomorrow.

WORLD FIRST

One for all
This incomparably affordable all-in one solution offers functions for very different applications and is even scalable in relation to the power requirement. Whether you need one or more MPP trackers, high-voltage or low-voltage storage, or a solution with or without an emergency power supply – everything is possible. KATEK Memmingen has already thought of and prepared for charging an electric vehicle straight from a PV generator. The new components and setting options enable use in many countries.

Maximum efficiencies at all input voltages and reliable cooling concept

The maximum efficiencies of the state-of-the-art power electronics topology ensure minimal losses, thus guaranteeing a very long service life thanks to extremely low levels of self-heating.

Downloads

Certificates

  •  coolcept fleX | 1 MPP-Tracker certificate GCC CEI 0-21 IT · pdf · 0.634 MB
  •  coolcept fleX | 1 MPP-Tracker certificate GCC EN50438:2013 EN · pdf · 0.658 MB
  •  coolcept fleX | 1 MPP-Tracker certificate GCC G59 / 3-3 EN · pdf · 0.695 MB
  •  coolcept fleX | 1 MPP-Tracker certificate GCC IEC 62116:2014 EN · pdf · 0.647 MB
  •  coolcept fleX | 1 MPP-Tracker certificate GCC TOR 2016, V.2.3 D4 DE.pdf · pdf · 0.630 MB
  •  coolcept fleX | 1 MPP-Tracker certificate GCC VDE 0126-1-1:2013-08 DE · pdf · 0.633 MB
  •  coolcept fleX | 1 MPP-Tracker certificate GCC VDE 0126-1-1:2013-08 EN · pdf · 0.645 MB
  •  coolcept fleX | 1 MPP-Tracker certificate GCC AR-N 4105:2011-08 EZE-NAS DE · pdf · 0.873 MB
  •  coolcept fleX | 1 MPP-Tracker certificate GCC G83/2 EN · pdf · 0.659 MB
  •  coolcept fleX | 1 MPP-Tracker certificate GCC IEC 61727:2004 and IEC 62116:2014 EN · pdf · 0.649 MB
  •  coolcept fleX | 1 MPP-Tracker certificate GCC UTE C15-712-1, Juillet 2013 FR · pdf · 0.659 MB
  •  coolcept fleX | 1 MPP-Tracker certificate Declaration of confirmity · pdf · 0.264 MB
  •  coolcept fleX | 1 MPP-Tracker certificate GCC UNE 206007:2013 ES · pdf · 0.765 MB
  •  coolcept fleX | 1 MPP-Tracker certificate GCC RD1699/2011 y IEC 62109-2:2011 ES · pdf · 0.656 MB
  •  coolcept fleX | 1 MPP-Tracker certificate · pdf · 0.412 MB
  •  coolcept fleX | 1 MPP-Tracker certificate Certificate overview · pdf · 0.171 MB

Commercial guarantee extension

  •  coolcept fleX | 1 MPP-Tracker commercial guarantee extension DE · pdf · 0.050 MB
  •  coolcept fleX | 1 MPP-Tracker commercial guarantee extension EN · pdf · 0.151 MB
  •  coolcept fleX | 1 MPP-Tracker commercial guarantee extension FR · pdf · 0.146 MB
  •  coolcept fleX | 1 MPP-Tracker commercial guarantee extension PL · pdf · 0.329 MB

Product data sheet

  •  coolcept fleX | 1 MPP-Tracker productdatasheet DE · pdf · 0,265 MB
  •  coolcept fleX | 1 MPP-Tracker productdatasheet EN · pdf · 0.266 MB
  •  coolcept fleX | 1 MPP-Tracker productdatasheet ES · pdf · 0,266 MB
  •  coolcept fleX | 1 MPP-Tracker productdatasheet FR · pdf · 0,266 MB

Further downloads

  •  coolcept fleX | 1 MPP-Tracker download technische Informationen DE · pdf · 2.995 MB
  •  coolcept fleX | 1 MPP-Tracker download technical information EN · pdf · 3.503 MB
  •  coolcept fleX | 1 MPP-Tracker download Flyer DE · pdf · 0.640 MB
  •  coolcept fleX | 1 MPP-Tracker download Flyer EN · pdf · 0.630 MB
  •  coolcept fleX | 1 MPP-Tracker download manufacturers declaration EN · pdf · 0.114 MB
  •  coolcept fleX | 1 MPP-Tracker download Herstellererklärung DE · pdf · 0.117 MB

Manuals

  •  coolcept fleX | 1 MPP-Tracker manual Connecting energy meters EN · pdf · 1.385 MB
  •  coolcept fleX | 1 MPP-Tracker manual Anschluss Energiezähler DE · pdf · 1.308 MB
  •  coolcept fleX | 1 MPP-Tracker manual IEC 62109 EN · pdf · 1.026 MB
  •  coolcept fleX | 1 MPP-Tracker manual DE · pdf · 1.674 MB
  •  coolcept fleX | 1 MPP-Tracker manual EN · pdf · 1.637 MB
  •  coolcept fleX | 1 MPP-Tracker manual ES · pdf · 1.704 MB
  •  coolcept fleX | 1 MPP-Tracker manual FI · pdf · 1.640 MB
  •  coolcept fleX | 1 MPP-Tracker manual FR · pdf · 1.659 MB
  •  coolcept fleX | 1 MPP-Tracker manual IT · pdf · 1.673 MB
  •  coolcept fleX | 1 MPP-Tracker manual PL · pdf · 1.720 MB

Product pics, technical drawings, etc.

  •  coolcept fleX | 1 MPP-Tracker product pic DE · jpg, 300 DPI, high quality · 0.181 MB
  •  coolcept fleX | 1 MPP-Tracker product pic DE · jpg, 72 DPI, web quality · 0.047 MB
  •  coolcept fleX | 1 MPP-Tracker product pic · jpg, 300 DPI, high quality · 0.824 MB
  •  coolcept fleX | 1 MPP-Tracker product pic · jpg, 72 DPI, web quality · 0.450 MB
  •  coolcept fleX | 1 MPP-Tracker product pic 3D · jpg, 300 DPI, high quality · 0.780 MB
  •  coolcept fleX | 1 MPP-Tracker product pic 3D · jpg, 72 DPI, web quality · 0.415 MB

Technical data

 StecaGrid 1511StecaGrid 2011StecaGrid 2511StecaGrid 3011StecaGrid 3611
DC input side (PV generator)
Maximum input voltage
450 V
450 V
450 V
750 V
750 V
Operating input voltage range
75 V … 360 V
75 V … 360 V
75 V … 360 V
125 V … 600 V
150 V … 600 V
Operating input voltage range at nominal power
120 V … 360 V
160 V … 360 V
200 V … 360 V
230 V … 600 V
280 V … 600 V
Number of MPP tracker
1
Maximum input current
13.0 A
Maximum input power at maximum active output power
1540 W
2050 W
2560 W
3070 W
3770 W
AC output side (Grid connection)
Grid voltage
185 V … 276 V (depending on regional settings)
Rated grid voltage
230 V
Maximum output current
12.0 A
12.0 A
14.0 A
14.0 A
16.0 A
Maximum active power (cos phi = 1)
1500 W
2000 W
2500 W
3000 W
3680 W
Maximum apparent power
1500 VA
2000 VA
2500 VA
3000 VA
3680 VA
Rated power
1500 W
2000 W
2500 W
3000 W
3680 W
Rated frequency
50 Hz and 60 Hz
Frequency
45 Hz … 65 Hz (depending on regional settings)
Night-time power loss
< 3 W
Feeding phases
single-phase
Total harmonic distortion (cos phi = 1)
< 3 %
Power factor cos phi
0.8 capacitive … 0.8 inductive
Characterisation of the operating performance
Max. efficiency
97.4 %
97.4 %
97.4 %
97.0 %
97.0 %
European efficiency
96.1 %
96.5 %
96.6 %
96.3 %
96.3 %
MPP efficiency
> 99.7 % (static), > 99 % (dynamic)
Own consumption
< 20 W
Power derating at full power from
50 °C (Tamb)
50 °C (Tamb)
50 °C (Tamb)
50 °C (Tamb)
45 °C (Tamb)
Safety
Isolation principle
no galvanic isolation, transformerless
Grid monitoring
yes, integrated
Residual current monitoring
yes, integrated (The design of the inverter prevents it from causing DC leakage current)
Protection class
protection class 2 (RCD typ A sufficient)
Operating conditions
Area of application
outdoors & indoors
Climate protection class as per IEC 60721-3-4
4K4H
Ambient temperature
-25 °C … +60 °C
Storage temperature
-30 °C … +80 °C
Relative humidity
0 % … 100 %, non-condensating
Noise emission (typical)
31 dBA
Fitting and construction
Degree of protection
IP 65
Overvoltage category
III (AC), II (DC)
DC Input side connection
Phoenix Contact SUNCLIX (1 pair), mating connector included
AC output side connection
Wieland RST25i3 plug, mating connector included
Dimensions (X x Y x Z)
399 x 657 x 222 mm
Weight
11.7 kg
11.7 kg
11.7 kg
12.4 kg
12.4 kg
Communication interface
RS-485 (1 x RJ45 sockets; connectable to Meteocontrol WEB‘log or Solar-Log™, Ethernet interface (1 x RJ45), Modbus RTU (1 x RJ45 socket: connectable to energy counter)
Integrated DC circuit breaker
yes, compliant with VDE 0100-712
Cooling principle
temperature controlled fan, variable speed, internal (dustproof)
Test certificate
see certificate download on the product page
