Steca PA CAB1 Tarcom / Steca PA CAB2 Tarcom / Steca PA CAB3 Tarcom

Data cable

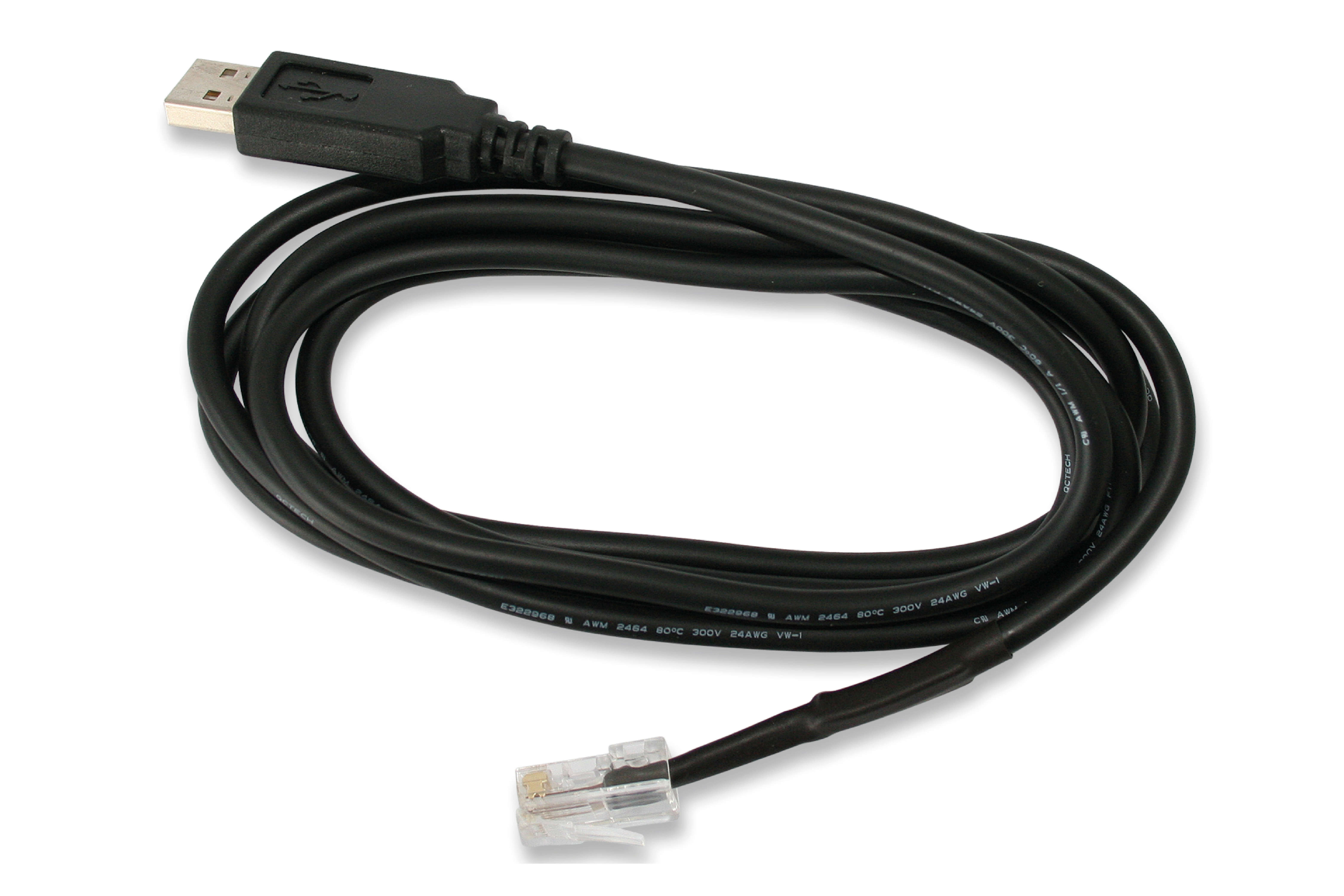

Steca PA CAB1 Tarcom picture 3D.jpg
X
Steca PA CAB1 Tarcom picture 3D.jpg

Description

Steca data cables are used to connect the Steca Tarom 4545/4545-48 (PA CAB2), Steca Tarom MPPT 6000-M (PA CAB3) and Steca Power Tarom (PA CAB1) solar charge controllers to a PC via a USB port. This allows direct monitoring of a system without using a data logger. This feature is especially suitable for short-term system monitoring and on-site testing. The most important system information is transferred to the PC in real time and can be conveniently analysed and graphically visualised using the Steca TarCom software. To use this convenient data transfer system a driver and the Steca TarCom software must first be installed on the PC (Download available at www.stecasolar.com). „Tarom RJ45 in“ can be selected under options/settings/extra in the Steca TarCom software menu system. The software then directly accesses the data from the Steca Power Tarom solar charge controller and displays this on the PC.

Features

Product features

  • Connection cable 1.8 m
  • FTDI chip as USB-RS-232 converter

Interfaces

  • Connection to Steca Tarom 4545/4545-48 and Tarom MPPT 6000-M via connector block
  • Connection to Steca Power Tarom via RJ45 plug
  • Connection to PC via USB

Installation software (Windows)

  • Steca TarCom PC-Software (only Steca Power Tarom and Steca Tarom 4545/4545-48)
  • Virtual COM port (by FTDI driver)
  • Driver for FTDI chip (by FTDI driver)
  • Configuration of the Steca Power Tarom and Tarom 4545/4545-48 for data transfer

Downloads

Product data sheet

  •  Steca PA CAB1 Tarcom / Steca PA CAB2 Tarcom / Steca PA CAB3 Tarcom productdatasheet DE · pdf · 0,336 MB
  •  Steca PA CAB1 Tarcom / Steca PA CAB2 Tarcom / Steca PA CAB3 Tarcom productdatasheet EN · pdf · 0.337 MB
  •  Steca PA CAB1 Tarcom / Steca PA CAB2 Tarcom / Steca PA CAB3 Tarcom productdatasheet FR · pdf · 0,337 MB

Manuals

  •  Steca PA CAB1 Tarcom / Steca PA CAB2 Tarcom / Steca PA CAB3 Tarcom manual Steca PA CAB1 Tarcom · pdf · 0.095 MB
  •  Steca PA CAB1 Tarcom / Steca PA CAB2 Tarcom / Steca PA CAB3 Tarcom manual Steca PA CAB2 Tarcom · pdf · 0.463 MB
  •  Steca PA CAB1 Tarcom / Steca PA CAB2 Tarcom / Steca PA CAB3 Tarcom manual Steca PA CAB3 Tarcom · pdf · 0.256 MB

Product pics, technical drawings, etc.

  •  Steca PA CAB1 Tarcom / Steca PA CAB2 Tarcom / Steca PA CAB3 Tarcom product pic 3D · jpg, 300 DPI, high quality · 0.831 MB
  •  Steca PA CAB1 Tarcom / Steca PA CAB2 Tarcom / Steca PA CAB3 Tarcom product pic 3D · jpg, 72 DPI, web quality · 0.287 MB

Software

  •  Steca PA CAB1 Tarcom / Steca PA CAB2 Tarcom / Steca PA CAB3 Tarcom software CAB1/2 · zip · 1.121 MB
