Stecamat 860

Processor-controlled charger for lead-acid batteries

Stecamat 860
Stecamat 860 technische Zeichnung
X
Stecamat 860
Stecamat 860 technische Zeichnung

Description

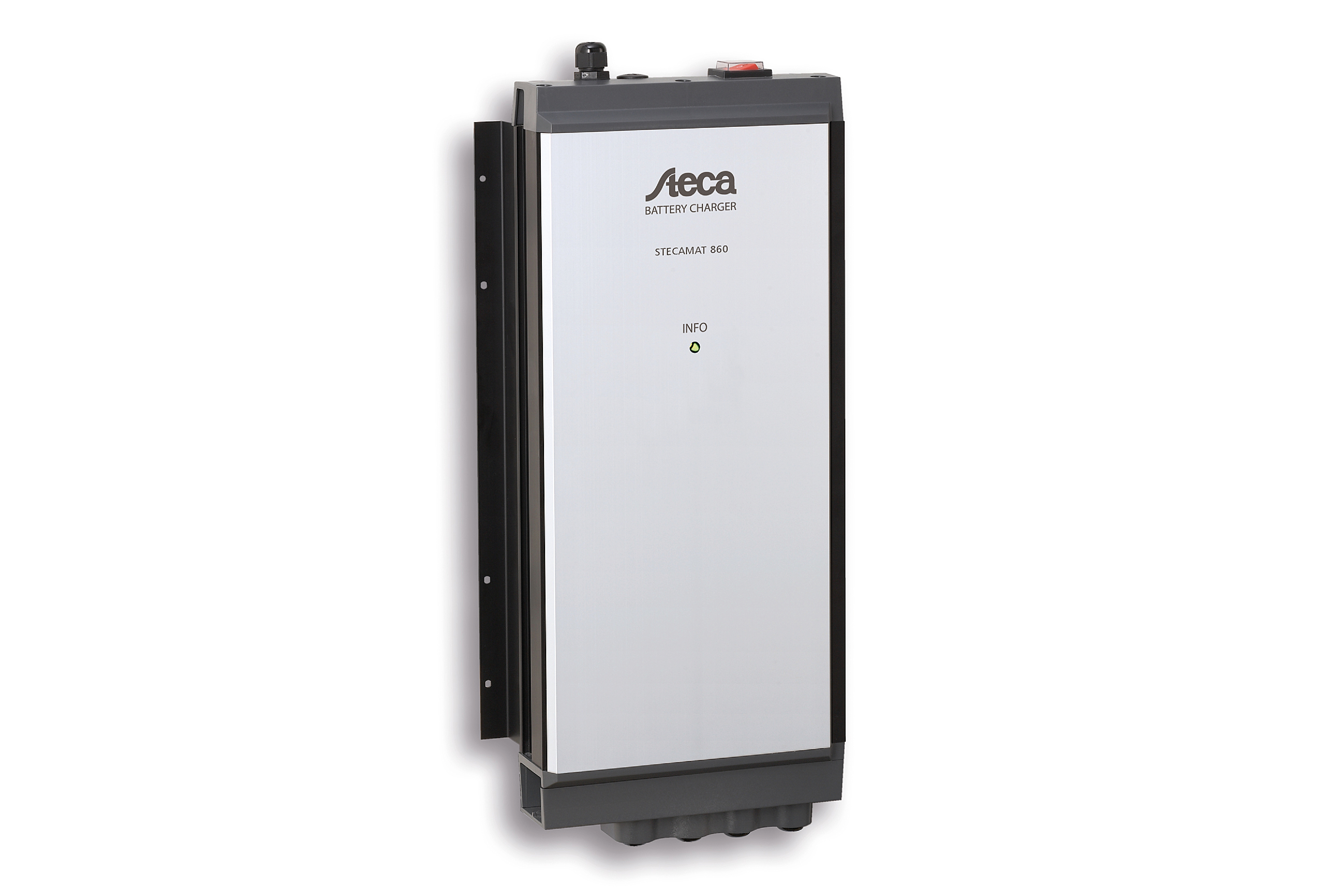

The battery charger Stecamat 860 is available in a dust and hoseproof housing. The processor-controlled charging process ensures gentle and rapid charging of your battery. The Stecamat 860 also enables the processing of damaged or totally discharged batteries, ensuring long service life. A LED provides rapid information on the state of charge.
Maximum flexibility is provided by the extensive features. This and the easy handling of the device make for trouble-free operation.

Features

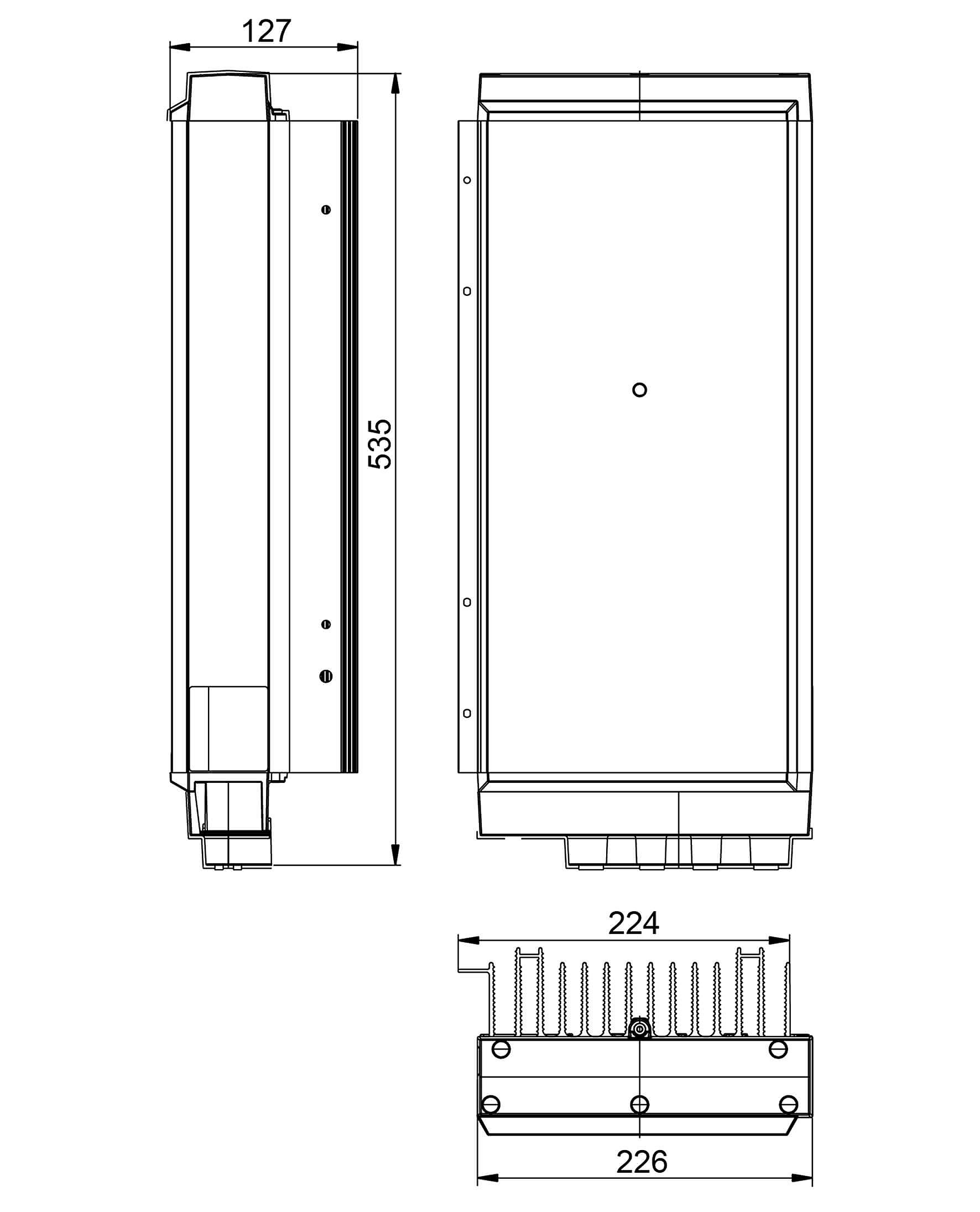

Technical drawing: Stecamat 860 Processor-controlled charger for lead-acid batteries

Product features

  • IP 65 jet waterproof casing
  • Half the charging time compared to simple, non-controlled chargers with the same rated current
  • Optimal for charging batteries with liquid electrolyte and gel / absorbed electrolyte (AGM)
  • Suitable for totally discharged batteries
  • Constant battery operational readiness through integrated trickle charge
  • Charging below the gassing voltage
  • Optimal charging of damaged batteries
  • Potential-free contact for ventilator control of the battery room venting system

Electronic protection functions

  • Protection in the case of wrong or damaged batteries
  • Battery overcharge protection
  • Charger output protected against short circuits, reverse polarity and overvoltage

Displays

  • Multi-coloured LED shows operating states

Operation

  • Mains grid switch

Interfaces

  • Control contact for ventilation control system in accordance with DIN EN 50272

Options

  • IO box with mains plug and relay for ventilator control

Downloads

Certificates

  •  Stecamat 860 certificate CE · pdf · 0.832 MB

Product data sheet

  •  Stecamat 860 productdatasheet DE · pdf · 0,983 MB
  •  Stecamat 860 productdatasheet EN · pdf · 0.983 MB

Manuals

  •  Stecamat 860 manual DE · pdf · 3.262 MB
  •  Stecamat 860 manual EN · pdf · 3.261 MB

Product pics, technical drawings, etc.

  •  Stecamat 860 product pic drawing · jpg, 300 DPI, high quality · 0.228 MB
  •  Stecamat 860 product pic drawing · jpg, 72 DPI, web quality · 0.088 MB

Technical data

 860-12860-24860-48
Charging rated voltage
12 V
24 V
48 V
Charge current
50 A
35 A
18 A
End-of-charge voltage
14.4 V
28.8 V
57.6 V
Trickle charge voltage
13.8 V
27.6 V
55.2 V
Characteristic curve
UoIUoIU
Grid voltage
230 V AC ±10 %
Frequency
50 Hz (45 Hz … 65 Hz)
Mains electricity (230 V)
3.7 A
5.5 A
5.5 A
Discharge current during grid failure
1.0 mA
Protection class
I
Casing
aluminium / plastic
Degree of protection
IP 65
Ambient temperature
-40 °C … +60 °C
Cooling principle
convection
Dimensions (X x Y x Z)
226 x 535 x 127 mm
Weight
11.5 kg
