StecaGrid SEM

Smart Energy Manager

StecaGrid SEM picture.jpg
StecaGrid SEM picture 3D.jpg
StecaGrid SEM Produktbild Homepage.jpg
X
StecaGrid SEM picture.jpg
StecaGrid SEM picture 3D.jpg
StecaGrid SEM Produktbild Homepage.jpg

Description

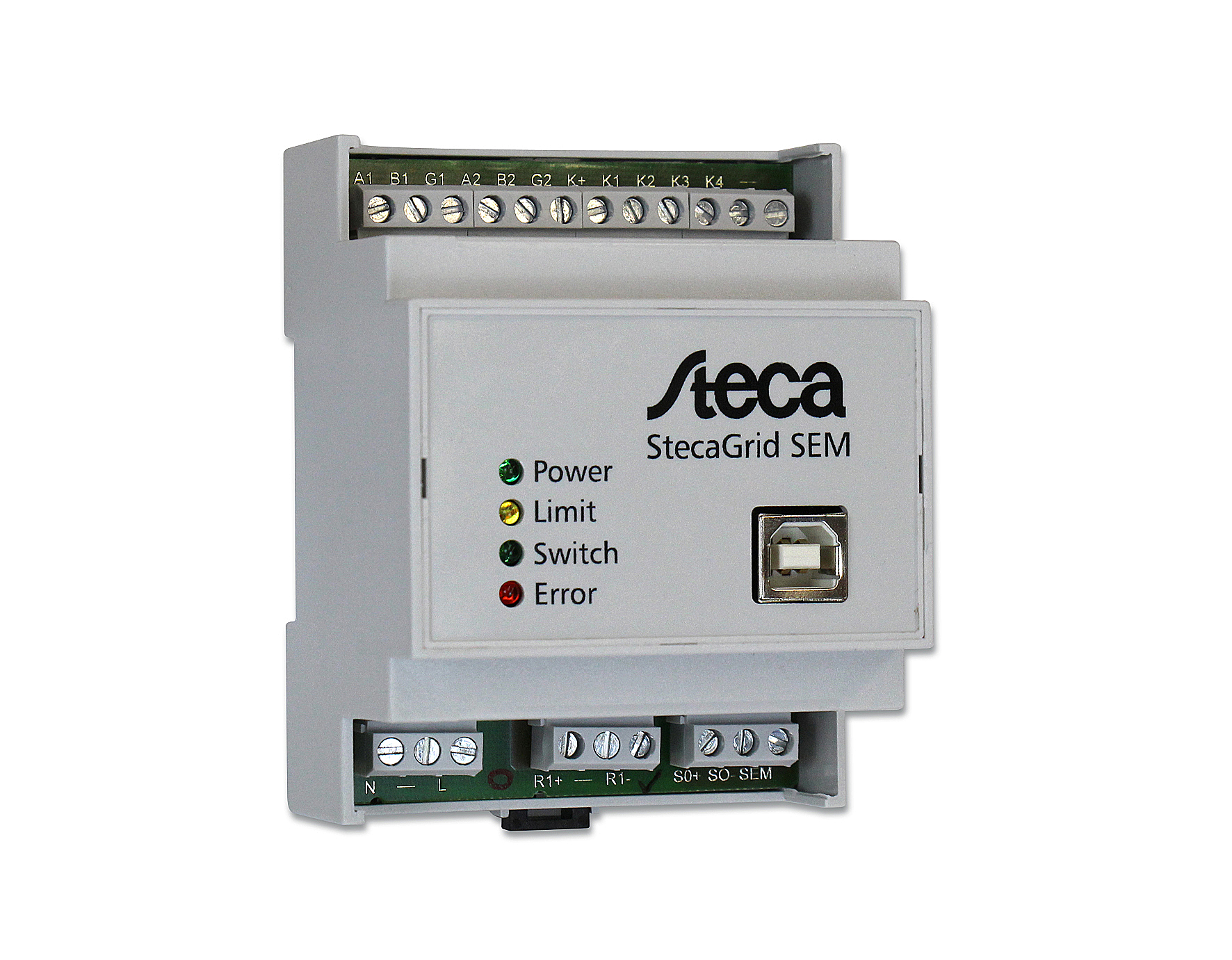

Smart Energy Manager for coolcept fleX, coolcept³ fleX, coolcept fleX XL.

The feed-in management solution

The StecaGrid SEM offers different options of realising feed-in management with a photovoltaic system. A ripple control receiver from the relevant distribution grid operator can be connected. The feed output at the grid connection point can be limited to an adjustable value, or the ripple control signal can be switched to the relay output. Up to ten inverters can be connected to the StecaGrid SEM via the RS 485 interface.

Easiest installation

StecaGrid SEM can be installed in the switching cabinet right next to the ripple control receiver. The casing features a dimensioning typical for switching cabinets and can be mounted onto a top-hat rail. Direct power supply at 230 V. A mains adapter plug or an external direct current power supply are not required.

All connected StecaGrid inverters can be accessed via a USB interface on the StecaGrid SEM. Connection to a PC is possible via a standard USB cable. The interface is on the front side of the casing – the cover does not need to be removed in the switching cabinet.

Features

Technical drawing: StecaGrid SEM Smart Energy Manager

Product features

  • Wall-mounting with top-hat rail
  • Compact and robust product design
  • Quiet and emission-free
  • Maintenance-free
  • Firmware update possible

Displays

  • 4 LEDs show operating states

Interfaces

  • Steca RS-485 bus

Options

  • Can be connected to a data logger

Certificates

  • Compliant with European Standards (CE)
  • Made in Germany

Downloads

Certificates

  •  StecaGrid SEM certificate CE · pdf · 0.801 MB

Product data sheet

  •  StecaGrid SEM productdatasheet DE · pdf · 0,254 MB
  •  StecaGrid SEM productdatasheet EN · pdf · 0.253 MB
  •  StecaGrid SEM productdatasheet FR · pdf · 0,254 MB
  •  StecaGrid SEM productdatasheet PL · pdf · 0,343 MB

Manuals

  •  StecaGrid SEM manual DE, EN · pdf · 2.216 MB

Product pics, technical drawings, etc.

  •  StecaGrid SEM product pic drawing · jpg, 300 DPI, high quality · 0.264 MB
  •  StecaGrid SEM product pic drawing · jpg, 72 DPI, web quality · 0.178 MB
  •  StecaGrid SEM product pic 3D · jpg, 300 DPI, high quality · 1.039 MB
  •  StecaGrid SEM product pic 3D · jpg, 72 DPI, web quality · 0.334 MB
  •  StecaGrid SEM product pic · jpg, 300 DPI, high quality · 0.801 MB
  •  StecaGrid SEM product pic · jpg, 72 DPI, web quality · 0.265 MB

Technical data

 StecaGrid SEM
Characterisation of the operating performance
Own consumption
< 3 W
Operating conditions
Area of application
indoor rooms with or without air conditioning
Interface to inverter
Steca RS-485 bus with max. 1,000 m cable length and 10 bus participants at maximum
Ambient temperature
0 °C … +60 °C
Storage temperature
-40 °C … +85 °C
Relative humidity
0 % … 95 %
Noise emission
silent
Fitting and construction
Degree of protection
IP 20
Terminal (fine / single wire)
1.5 mm² / 2.5 mm²
Dimensions (X x Y x Z)
72 x 91 x 58 mm
Weight
300 g
Power supply
230 V / 50 Hz or 60 Hz
Communication interface
2 x RJ45; 4 x analogue for ripple control receiver, via screw-type terminals; USB, type B socket; S0 interface
Relay output
potential-free contact, 250 V AC / 16 A
Test certificate
see certificate download on the product page
