StecaGrid 2000+

2,000 W up to several 10,000 W

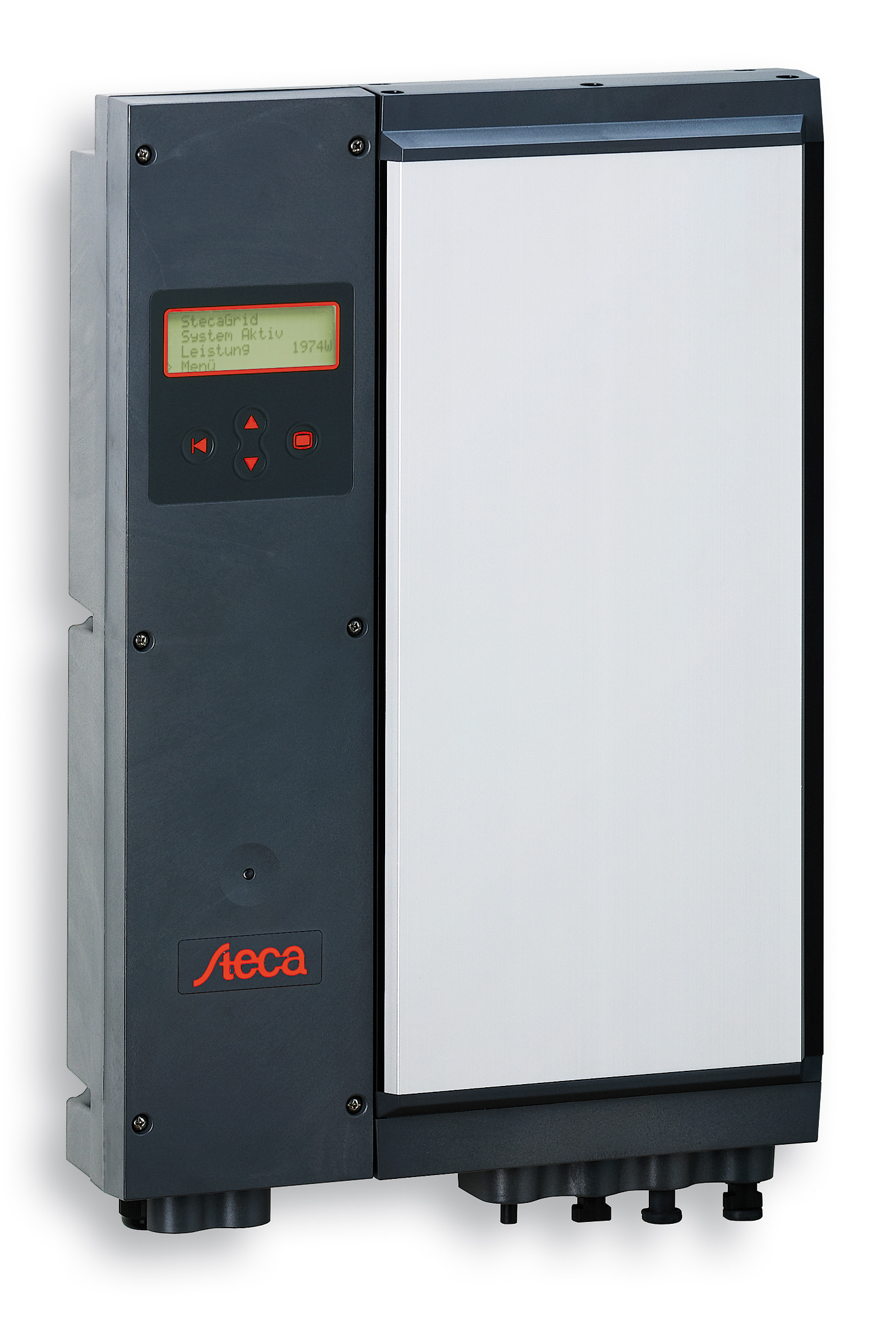

StecaGrid 2000plus Master Slave photo 300dpi 3D.jpg
X
StecaGrid 2000plus Master Slave photo 300dpi 3D.jpg

Description

The product range consists of masters and slaves. Like the slaves, the master includes an inverter, but it also provides additional functions: a four-line display, a data logger for storing the yield values, country-specific grid monitoring of the alternating current output, and optional use of an interface card.

Flexible system design

Every inverter (Master or Slave) of the product range has two inputs, with each input having its own MPP tracker. One module string can be connected to each input. If required, the inputs can also be connected in parallel.

The advantage of such a system is the low sensitivity to negative influences such as (e.g.) partial shadowing, functional faults, or the dropout of a string. The use of several decentralised master-slave combinations reduces the cost of DC cabling, and minimises electrical losses.

Galvanic isolation

The StecaGrid 2000+ inverter is equipped with a high-frequency transformer, and is thus galvanically isolated. This enables unrestricted use of thin-film modules. Nevertheless, high efficiency of up to 95 % is achieved.

Diverse application situations

StecaGrid inverters offer constant high-power capability over a wide range of ambient temperatures. This is supported by maintenance-free, natural convection via the large-dimension cooling fins. Since no fans are used, the inverters work in virtual silence. Thanks to the high degree of protection, StecaGrid inverters are also suitable for outdoor installation.

StecaGrid 2000+ and StecaGrid 2010+ (Master and Slaves) can be combined with each other.

Guarantee service

The StecaGrid 2000+ and 2010+ come with a 5-year guarantee. The guarantee period can be optionally extended up to 10 years.

Features

Product features

  • Flexible and expandable
  • High efficiency
  • Low weight
  • Simple installation
  • Master-slave concept
  • Fanless and maintenance-free
  • Integrated data logger
  • Suitable for outdoor installation
  • Two Maximum Power Point Trackers (MPP tracker) per device
  • Wall-mounting with steel wall bracket for very easy installation

Electronic protection functions

  • Integrated temperature monitoring with output derating

Displays

  • Text LC display
  • Multi-coloured LED shows operating states
  • for current output, energy yields, operating parameters, date, time, service information

Operation

  • Multilingual menu navigation
  • Four cursor buttons for menu selection

Options

  • Type with 230 V / 60 Hz

Downloads

Product data sheet

  •  StecaGrid 2000+ productdatasheet BG · pdf · 0,201 MB
  •  StecaGrid 2000+ productdatasheet DE · pdf · 0,599 MB
  •  StecaGrid 2000+ productdatasheet EN · pdf · 0.615 MB
  •  StecaGrid 2000+ productdatasheet FR · pdf · 0,823 MB
  •  StecaGrid 2000+ productdatasheet IT · pdf · 0,829 MB

Manuals

  •  StecaGrid 2000+ manual DE, EN, FR · pdf · 13.852 MB
  •  StecaGrid 2000+ manual 230V/60Hz: EN, FR, ES · pdf · 12.125 MB
  •  StecaGrid 2000+ manual ES · pdf · 3.737 MB
  •  StecaGrid 2000+ manual IT · pdf · 6.159 MB
  •  StecaGrid 2000+ manual NL · pdf · 3.793 MB
