Steca TR A301 PWM

3 inputs, 1 PWM output

  • Compact, multipart designer casing
  • Graphical LC display with backlighting
  • Animated representation of the systems and operating states
  • Non-verbal menu navigation

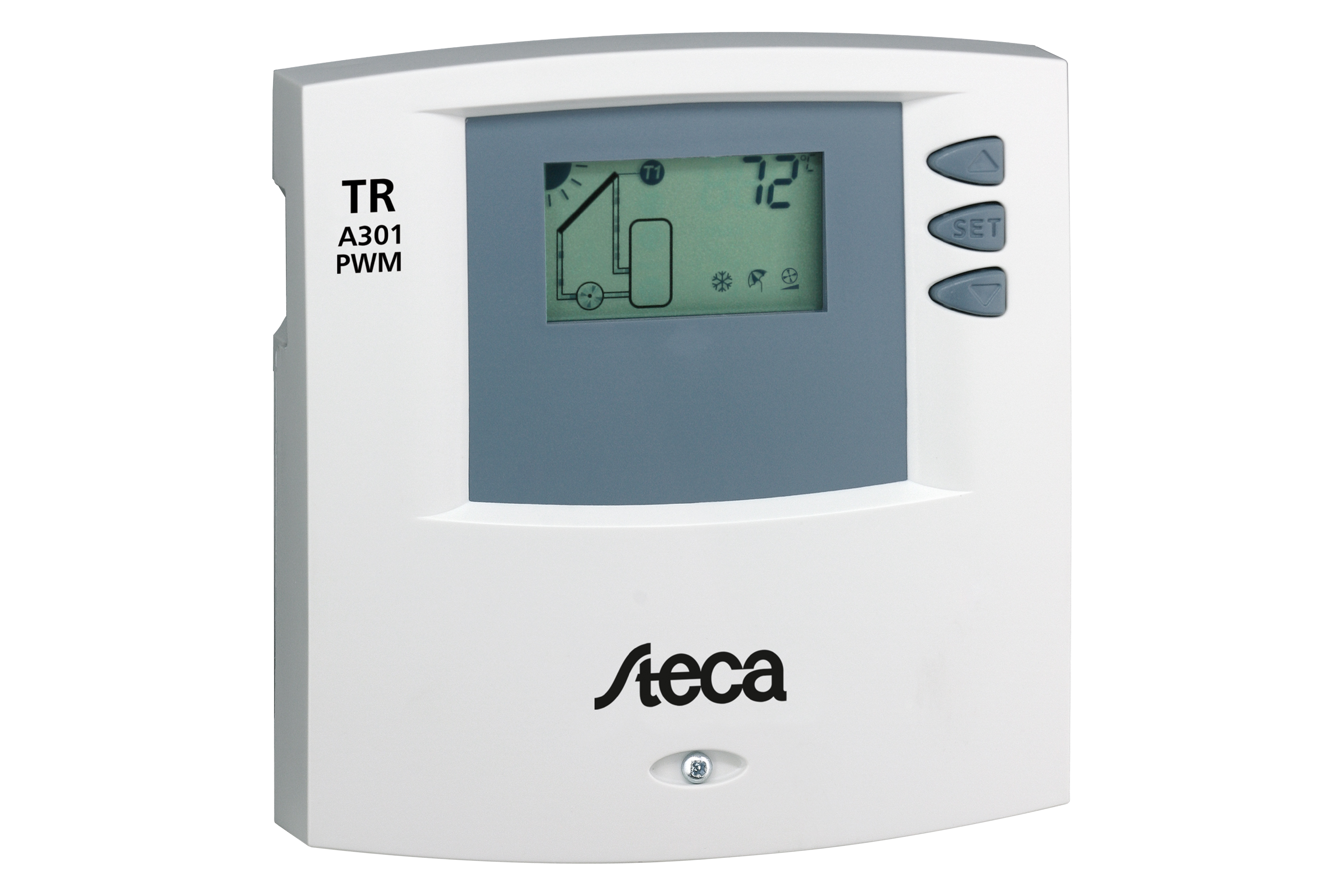

Steca TR A301PWM picture.jpg
Steca TR A301PWM picture 3D.jpg
TR A301 PWM Produktbild Homepage.jpg
X
Steca TR A301PWM picture.jpg
Steca TR A301PWM picture 3D.jpg
TR A301 PWM Produktbild Homepage.jpg

Description

The Steca TR A301 PWM controller was designed for use with new high-efficiency, cost and energy saving solar heating pump technology. This latest generation of electrically commutated circulation pumps have an integrated frequency converter and a permanent magnet motor. The PWM control signal must be specially activated in order to control this type of high-efficiency ECM pump. With this pulse width modulated DC square-wave signal the Steca TR A301 PWM controller can automatically exactly adapt the pump speed via a separate control cable to match the continually changing requirements of the system.

In addition to PWM speed control of the solar circulation pump, the Steca TR A301 PWM also allows hydraulic compensation of the solar energy system via Grundfos Direct Sensors™.

The clear, graphically animated display provides visualisation of the current operating status and also the complete solar circuit. The consistent use of pictograms helps make the controller easy to operate.

The controller also performs important system monitoring and safety functions to ensure safe and long-lasting operation of the entire system.

The operational safety of the system is supported by a sophisticated fault diagnosis. The multi-coloured LCD backlight ensures quick and safe location of occurring errors and facilitates quick troubleshooting.

Features

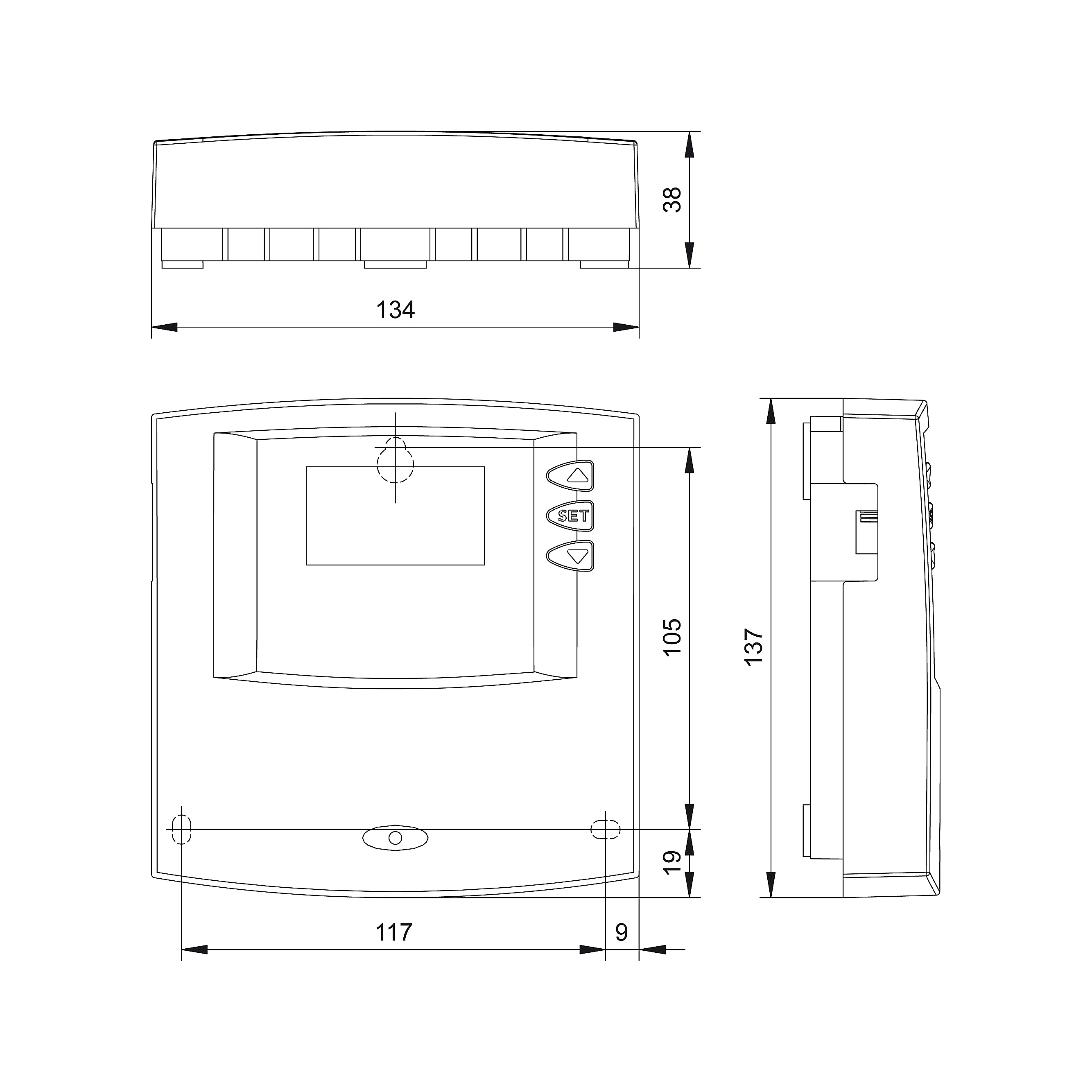

Technical drawing: Steca TR A301 PWM 3 inputs, 1 PWM output

Product features

  • Compact, multipart designer casing
  • Electronic speed control via pulse width modulation (PWM)
  • Maximum storage tank temperature
  • High level of operational safety through fault diagnosis
  • Logging of minimum and maximum temperature values
  • Temperature display °C / °F
  • Collector overtemperature disconnection
  • Hours-of-operation logger
  • Storage tank target temperature loading
  • Spring clamp terminals allow rapid and easy installation
  • Flow rate and temperature display using Grundfos Direct Sensors™

Displays

  • Graphical LC display with backlighting
  • Animated representation of the systems and operating states

Operation

  • Non-verbal menu navigation
  • Side switch for manual, auto, off

Functions

  • Flow rate acquisition for hydraulic compensation
  • Holiday (storage tank recooling)
  • Interval / tube collector
  • Anti-freeze

Downloads

Certificates

  •  Steca TR A301 PWM certificate CE · pdf · 1.071 MB

Product data sheet

  •  Steca TR A301 PWM productdatasheet DE · pdf · 0,239 MB
  •  Steca TR A301 PWM productdatasheet EN · pdf · 0.239 MB
  •  Steca TR A301 PWM productdatasheet FR · pdf · 0,240 MB

Manuals

  •  Steca TR A301 PWM manual DE · pdf · 3.294 MB
  •  Steca TR A301 PWM manual EN · pdf · 3.747 MB

Product pics, technical drawings, etc.

  •  Steca TR A301 PWM product pic 3D · jpg, 300 DPI, high quality · 1.606 MB
  •  Steca TR A301 PWM product pic 3D · jpg, 72 DPI, web quality · 0.477 MB
  •  Steca TR A301 PWM product pic · jpg, 300 DPI, high quality · 1.851 MB
  •  Steca TR A301 PWM product pic · jpg, 72 DPI, web quality · 0.524 MB
  •  Steca TR A301 PWM product pic drawing · jpg, 300 DPI, high quality · 0.441 MB
  •  Steca TR A301 PWM product pic drawing · jpg, 72 DPI, web quality · 0.234 MB

Technical data

 TR A301 PWM
System voltage
230 V AC (± 15 %), 50 Hz
System voltage optional
115 V AC (± 15 %), 60 Hz
Standby
1.07 W
Temperature control class
I
Energy efficiency
1 %
Number of inputs
3
Inputs
2 x temperature (Pt1000), 1 x Grundfos Direct Sensors™ VFS 1-12 (temperature / flow rate)
Number of outputs
1
Output
R1: switched triac output for pump power supply, max. 250 W (230 V); C: PWM control signal for pump speed, 8 mA; 5 V; 250 Hz
Turn-on temperature difference
8 K
Turn-off temperature difference
4 K
Ambient temperature
0 °C … +45 °C
Degree of protection
IP 20 / DIN 40050
Dimensions (X x Y x Z)
134 x 137 x 38 mm [0.00 x 0.00 x 0.00 inch]
Weight
250 g [0.00 oz]
