Steca TR 0402

4 inputs, 2 outputs

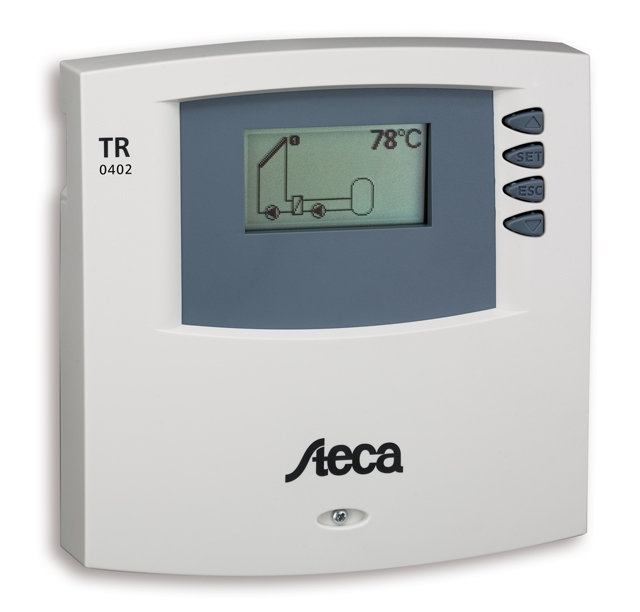

TR 0402 3D.jpg
X
TR 0402 3D.jpg

Description

The Steca TR 0402 solar thermal dual-circuit controller meets the requirements of modern solar energy systems‘ fundamental layouts. In particular, alongside single-circuit solar energy systems, this includes so-called „combined solar energy systems“ which can also use the sun‘s energy for heating. Combined solar energy systems are either 2 storage tank systems, or a combined storage tank system in which one „combined“ storage tank provides hot water for heating, as well as hot drinking water.

By means of its numerous and additionally selectable functions, the Steca TR 0402 controller enables individual system adjustment. Thus, for example, the heating return can be integrated into the solar energy system, or the back-up heating or circulation pump can be controlled directly from the solar controller.

The large animated graphic display visualises the operating statuses, and shows not only the current temperature, but also the minimum and maximum temperature values. The Steca TR 0402 controller‘s features also include display of the operating hours and a calculated heat quantity. The preprogrammed systems and the consistent use of easy-tounderstand pictograms guarantee that the controller is simple to operate.

In addition, comprehensive information windows are displayed, so as to continually ensure reliable operation of the solarenergy system, and to provide detailed information at all times.

Features

Product features

  • Compact, multipart designer casing
  • Electronic speed control
  • High level of operational safety through fault diagnosis
  • Hours-of-operation logger
  • Storage tank target temperature loading
  • Screw terminals allow universal and rapid installation

Displays

  • Multifunction graphical LC display with backlighting
  • Animated representation of the systems and operating states

Operation

  • Multilingual menu navigation
  • Side switch for manual, auto, off

Functions

  • Heat quantity (determination)
  • Heating return increase
  • Reduction of stagnation phases
  • Holiday (storage tank recooling)
  • Back-up heating
  • Solid fuel boiler
  • Storage tank quick charge
  • Thermostat
  • Differential thermostat
  • Interval / tube collector
  • Anti-freeze
  • Display storage tank top
  • Circulation (controlled by temperature / pulse)

Downloads

Certificates

  •  Steca TR 0402 certificate CE - TR 0402 · pdf · 1.112 MB

Product data sheet

  •  Steca TR 0402 productdatasheet DE · pdf · 0,648 MB
  •  Steca TR 0402 productdatasheet EN · pdf · 0.649 MB
  •  Steca TR 0402 productdatasheet FR · pdf · 0,174 MB
  •  Steca TR 0402 productdatasheet IT · pdf · 0,174 MB

Manuals

  •  Steca TR 0402 manual DE · pdf · 4.111 MB
  •  Steca TR 0402 manual EN · pdf · 4.092 MB
  •  Steca TR 0402 manual ES · pdf · 4.115 MB
  •  Steca TR 0402 manual FR · pdf · 4.134 MB
  •  Steca TR 0402 manual IT · pdf · 4.106 MB
  •  Steca TR 0402 manual DA · pdf · 4.106 MB
  •  Steca TR 0402 manual PL · pdf · 5.338 MB
  •  Steca TR 0402 manual PT · pdf · 4.123 MB
