Steca TR 0301sc+

3 inputs, 1 output

  • Compact, multipart designer casing
  • Graphical LC display with backlighting
  • Animated representation of the systems and operating states
  • Non-verbal menu navigation
Steca TR0301 sc  picture.jpg
Steca TR0301 sc  picture 3D.jpg
TR A301 sc  Produktbild Homepage.jpg
X
Steca TR0301 sc  picture.jpg
Steca TR0301 sc  picture 3D.jpg
TR A301 sc  Produktbild Homepage.jpg

Description

The Steca TR 0301sc+ controller is the speed-controllable version of the basic controller, the Steca TR 0301.

In addition to the speed control of the solar circuit pump, the Steca TR 0301sc+ also allows logging of the solar circuit pump's hours of operation, as well as recording the minimum and maximum temperature values of the collector and the storage tank.

The controller is used for monitoring and controlling solar thermal systems with one collector array and one storage tank. Equipped with an animated and clearly arranged graphic display, the Steca TR 0301sc+ visualizes the operational status as well as the complete solar circuit of the solar energy system. The consistent use of pictograms helps make the controller easy to operate. The controller also performs important system monitoring and safety functions to ensure safe and long-lasting operation of the entire system. The numerous additional functions of the Steca TR 0301sc+ also include a maximum storage tank temperature function, a tube collector function, an anti-freeze function, a holiday and storage recool function as well as a choice of temperature indications in either degrees Celsius (°C) or Fahrenheit (°F). The operational safety of the system is supported by a sophisticated fault diagnosis. The multi-coloured LCD backlight ensures quick and safe location of occurring errors and facilitates quick troubleshooting.

Features

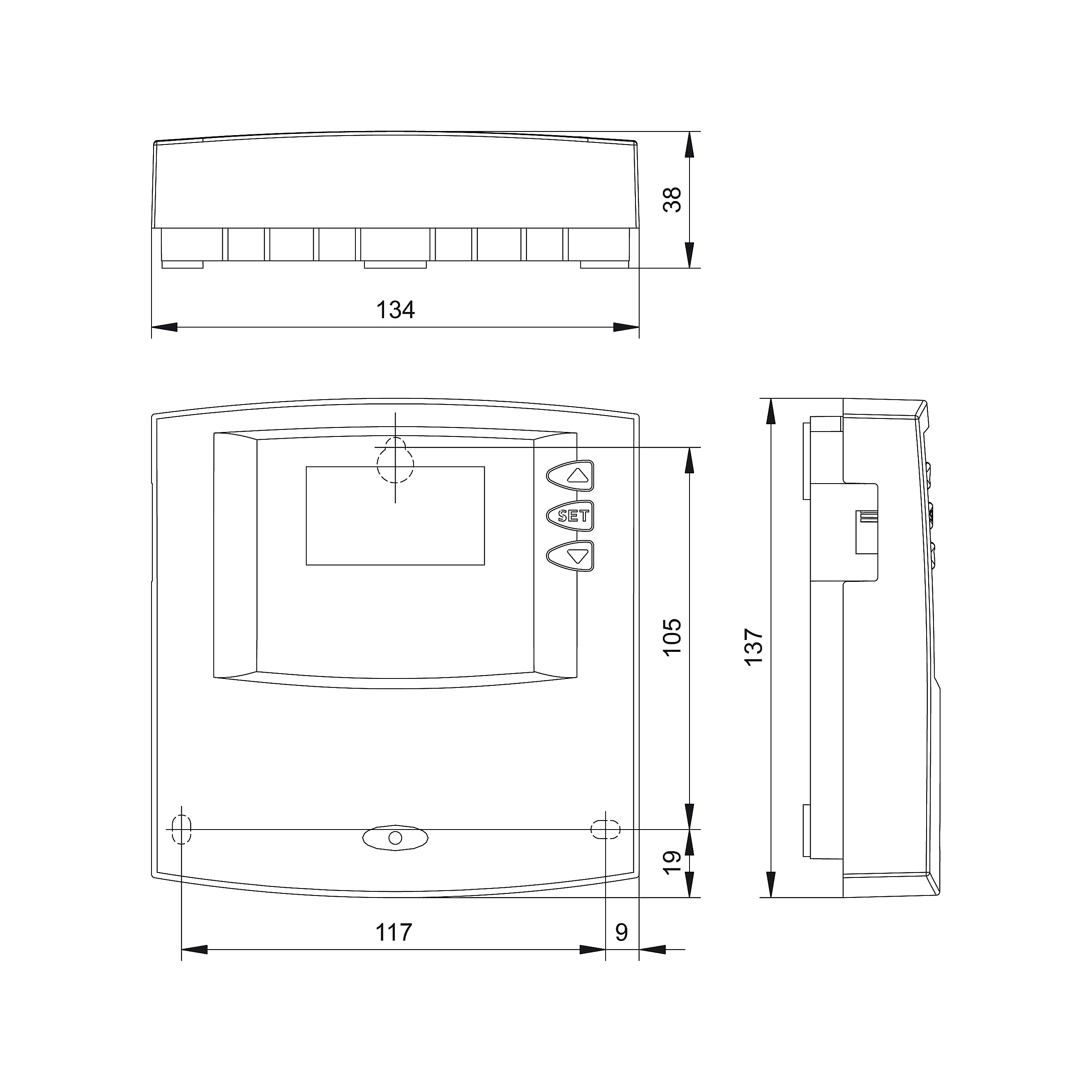

Technical drawing: Steca TR 0301sc+ 3 inputs, 1 output

Product features

  • Compact, multipart designer casing
  • Electronic speed control
  • Maximum storage tank temperature
  • High level of operational safety through fault diagnosis
  • Logging of minimum and maximum temperature values
  • Temperature display °C / °F
  • Collector overtemperature disconnection
  • Hours-of-operation logger
  • Storage tank target temperature loading
  • Spring clamp terminals allow rapid and easy installation

Displays

  • Graphical LC display with backlighting
  • Animated representation of the systems and operating states

Operation

  • Non-verbal menu navigation
  • Side switch for manual, auto, off

Functions

  • Holiday (storage tank recooling)
  • Interval / tube collector
  • Anti-freeze
  • Display storage tank top

Downloads

Certificates

  •  Steca TR 0301sc+ certificate CE · pdf · 0.757 MB

Product data sheet

  •  Steca TR 0301sc+ productdatasheet DE · pdf · 0,238 MB
  •  Steca TR 0301sc+ productdatasheet EN · pdf · 0.238 MB
  •  Steca TR 0301sc+ productdatasheet FR · pdf · 0,239 MB

Product pics, technical drawings, etc.

  •  Steca TR 0301sc+ product pic 3D · jpg, 300 DPI, high quality · 1.635 MB
  •  Steca TR 0301sc+ product pic 3D · jpg, 72 DPI, web quality · 0.480 MB
  •  Steca TR 0301sc+ product pic · jpg, 300 DPI, high quality · 2.174 MB
  •  Steca TR 0301sc+ product pic · jpg, 72 DPI, web quality · 0.666 MB
  •  Steca TR 0301sc+ product pic drawing · jpg, 300 DPI, high quality · 0.441 MB
  •  Steca TR 0301sc+ product pic drawing · jpg, 72 DPI, web quality · 0.234 MB

Technical data

 TR 0301 sc+
System voltage
230 V AC (± 15 %), 50 Hz
System voltage optional
115 V AC (± 15 %), 60 Hz
Standby
1.07 W
Temperature control class
I
Energy efficiency
1 %
Number of inputs
3
Inputs
3 x temperature (Pt1000)
Number of outputs
1
Output
1 x triac for speed control (R1), max. 250 W (230 V)
Turn-on temperature difference
8 K
Turn-off temperature difference
4 K
Ambient temperature
0 °C … +45 °C
Degree of protection
IP 20 / DIN 40050
Dimensions (X x Y x Z)
134 x 137 x 38 mm [0.00 x 0.00 x 0.00 inch]
Weight
250 g [0.00 oz]

Solar system, collector, single-family house

Solar thermal systems
