Steca TR 0201

2 inputs, 1 output

  • Compact, multipart designer casing
  • High level of operational safety through fault diagnosis
  • Spring clamp terminals allow rapid and easy installation
  • Non-verbal menu navigation

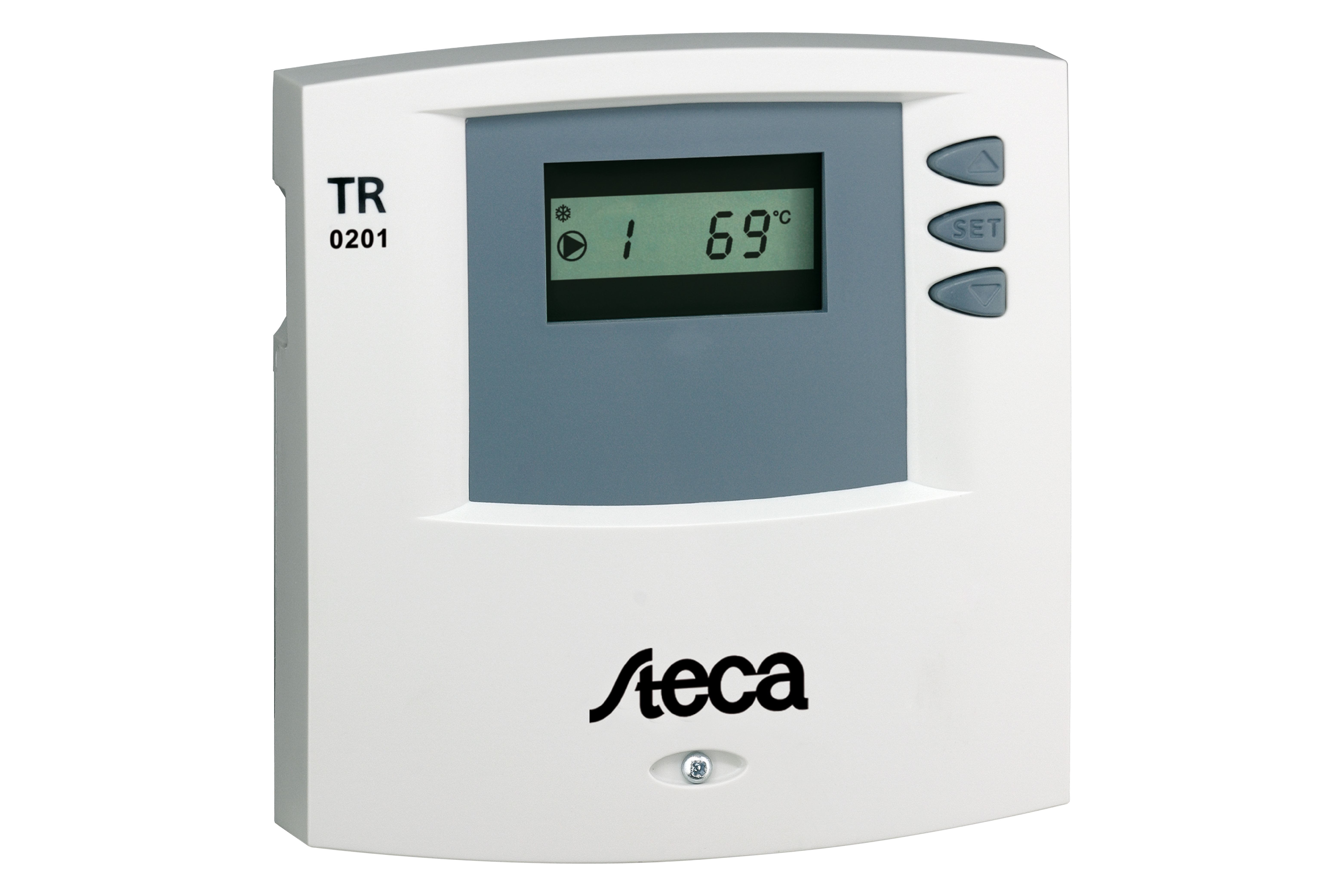

Steca TR 0201 picture.jpg
Steca TR 0201 picture 3D.jpg
TR 0201 Produktbild Homepage.jpg
X
Steca TR 0201 picture.jpg
Steca TR 0201 picture 3D.jpg
TR 0201 Produktbild Homepage.jpg

Description

The Steca TR 0201 solar thermal controller provides everything your solar thermal system requires for safe and long-lasting operation. The microprocessor-controlled regulator monitors and controls solar thermal systems by means of a collector array and a storage tank.

Apart from controlling the solar energy system, the controller also performs important system monitoring and safety functions. The system parameters and measured values can be viewed and altered via the LCD display. The controller is equipped with two inputs for recording the temperature and one output for controlling the solar circuit pump. The range of features of the Steca TR 0201 is supplemented by numerous additional functions such as a maximum storage tank temperature function, a tube collector function, an anti-freeze function, as well as a choice of temperature indications in either degrees Celsius (°C) or Fahrenheit (°F).

The operational safety of the system is supported by a sophisticated fault diagnosis. The LCD display ensures quick and safe location of occurring errors and facilitates quick troubleshooting.

Features

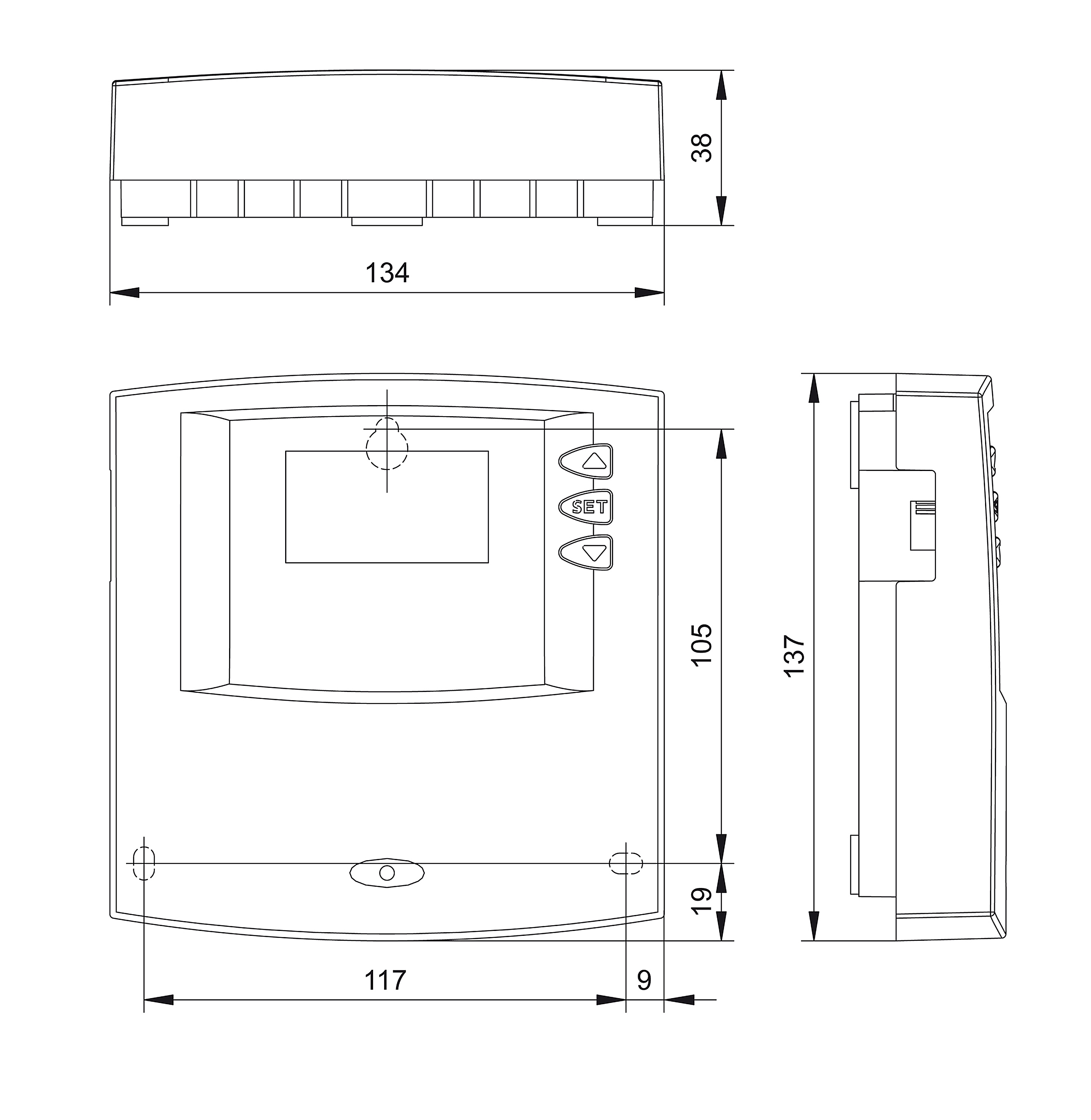

Technical drawing: Steca TR 0201 2 inputs, 1 output

Product features

  • Compact, multipart designer casing
  • Maximum storage tank temperature
  • Adjustable switch-on temperature difference
  • Adjustable switch-off temperature difference
  • High level of operational safety through fault diagnosis
  • Temperature display °C / °F
  • Collector overtemperature disconnection
  • Spring clamp terminals allow rapid and easy installation

Displays

  • Text LC display
  • Temperature display for storage tank and collector
  • Pump operating status display

Operation

  • Non-verbal menu navigation
  • Side switch for manual, auto, off

Functions

  • Interval / tube collector
  • Anti-freeze

Downloads

Certificates

  •  Steca TR 0201 certificate CE · pdf · 1.094 MB

Product data sheet

  •  Steca TR 0201 productdatasheet DE · pdf · 0,245 MB
  •  Steca TR 0201 productdatasheet EN · pdf · 0.245 MB
  •  Steca TR 0201 productdatasheet FR · pdf · 0,246 MB

Manuals

  •  Steca TR 0201 manual DE · pdf · 1.900 MB
  •  Steca TR 0201 manual EN · pdf · 1.888 MB
  •  Steca TR 0201 manual ES · pdf · 1.883 MB
  •  Steca TR 0201 manual FR · pdf · 1.885 MB
  •  Steca TR 0201 manual IT · pdf · 1.884 MB
  •  Steca TR 0201 manual PL · pdf · 3.179 MB
  •  Steca TR 0201 manual PT · pdf · 1.901 MB

Product pics, technical drawings, etc.

  •  Steca TR 0201 product pic 3D · jpg, 300 DPI, high quality · 1.718 MB
  •  Steca TR 0201 product pic 3D · jpg, 72 DPI, web quality · 0.498 MB
  •  Steca TR 0201 product pic · jpg, 300 DPI, high quality · 1.888 MB
  •  Steca TR 0201 product pic · jpg, 72 DPI, web quality · 0.505 MB
  •  Steca TR 0201 product pic drawing · jpg, 300 DPI, high quality · 0.533 MB
  •  Steca TR 0201 product pic drawing · jpg, 72 DPI, web quality · 0.261 MB

Technical data

 TR 0201
System voltage
230 V AC (± 15 %), 50 Hz
System voltage optional
115 V AC (± 15 %), 60 Hz
Standby
1.07 W
Temperature control class
I
Energy efficiency
1 %
Number of inputs
2
Inputs
2 x temperature (Pt1000)
Number of outputs
1
Output
1 x switch output relay (R1), max. 800 W (230 V)
Turn-on temperature difference
4 K … 20 K
Turn-off temperature difference
2 K … 18 K
Ambient temperature
0 °C … +45 °C
Degree of protection
IP 20 / DIN 40050
Dimensions (X x Y x Z)
134 x 137 x 38 mm [0.00 x 0.00 x 0.00 inch]
Weight
250 g [0.00 oz]

Solar system, collector, single-family house

Solar thermal systems

Solar thermal systems convert solar irradiation into heat so that it can be used to heat domestic hot water or for back-up heating.more
