Steca TF A603 MC+

Domestic hot water controller (stand-alone)

  • Compact, multipart designer casing
  • Multifunction graphical LC display with backlighting
  • Animated representation of the systems and operating states
  • Multilingual menu navigation
  • Auto-adaptive control algorithm

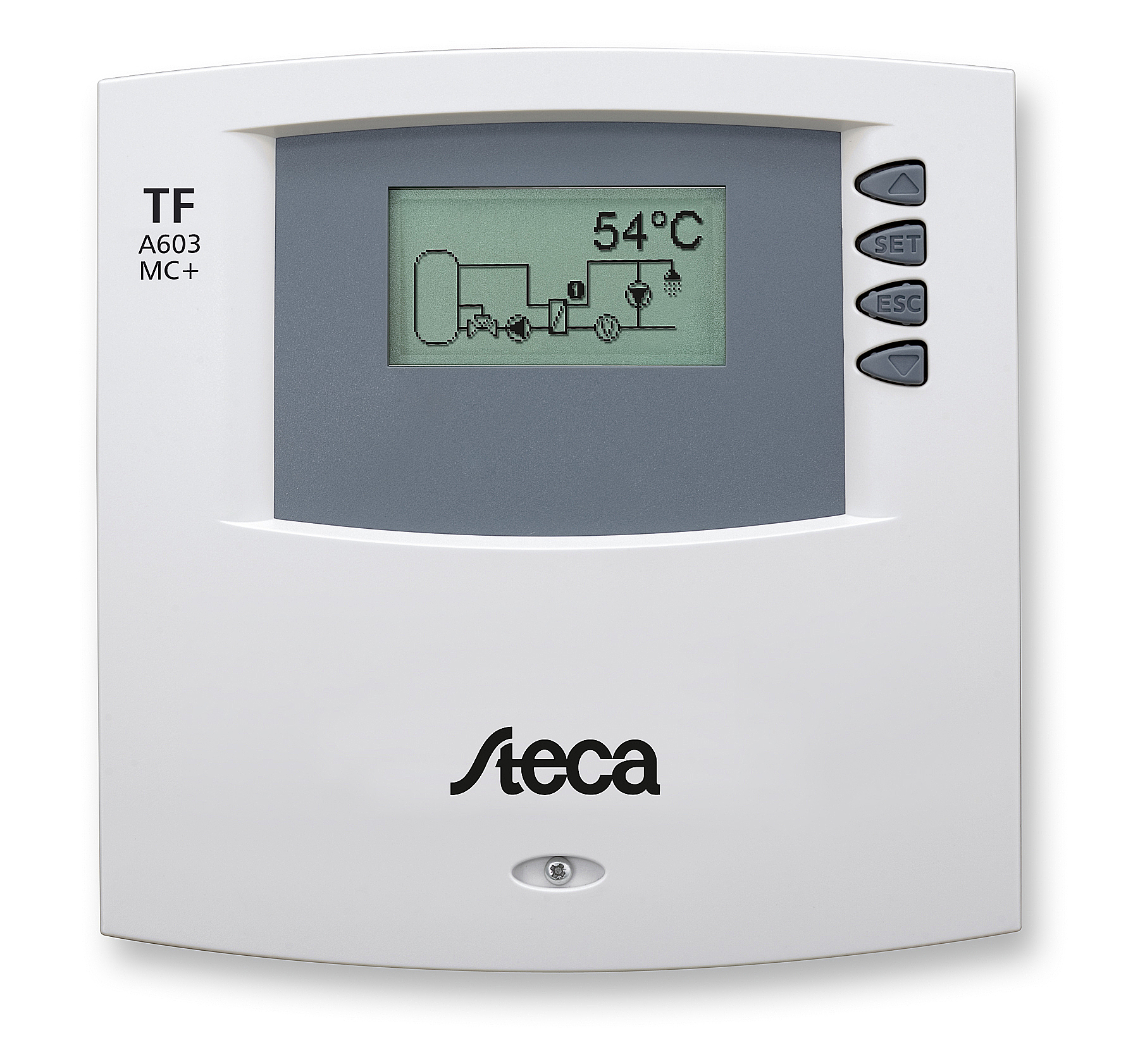

Steca TF A603 MC  picture.jpg
Steca TF A603 MC  picture 3D.jpg
TF A603 MC  Produktbild Homepage.jpg
X
Steca TF A603 MC  picture.jpg
Steca TF A603 MC  picture 3D.jpg
TF A603 MC  Produktbild Homepage.jpg

Description

The Steca TF A603 MC+ is a stand-alone domestic hot water controller for heating drinking water directly and hygienically using the continuous flow heater principle.

With an all new control algorithm, the Steca TF A603 MC+ controller is well equipped to channel energy from a buffer storage tank to the drinking water circuit with particular speed and efficiency. Owing to its auto-adaptive control algorithm, the controller is capable of adjusting to the specific conditions of each system as soon as the equipment is initially set up, ensuring a constant hot drinking water temperature to address hygienic considerations.

A primary objective in this regard is to keep the return temperature to the buffer storage tank as low as possible in order to additionally increase the efficiency and yield of the solar system. This is supported by a zone feed function using water from the buffer storage tank via a 3-way switching valve.

The Steca TF A603 MC+ can also control a circulation pump. In doing so, time-based, temperature-based, or pulse-based control is possible.

A particular highlight of the Steca TF A603 MC+ controller is the fact that the unit saves the system's operating data to a SD card. Animated control circuits are displayed on the unit's large graphic display to visualise the respective system's operating statuses. The Steca TF A603 MC+ includes six inputs for recording temperatures or pulse values as well as an additional Grundfos Direct Sensors™ input for combined temperature and flow rate measurement. Pumps and switching valves are controlled via three outputs, some of which are speed controlled.

Note: The Steca TF A603 MC+ controller is only available in conjunction with domestic hot water systems approved by KATEK.

Features

Technical drawing: Steca TF A603 MC+ Domestic hot water controller (stand-alone)

Product features

  • Compact, multipart designer casing
  • Electronic speed control
  • High level of operational safety through fault diagnosis
  • Hours-of-operation logger
  • Software update possible
  • Daily pump start
  • Integrated Steca TPC 1 bus

Displays

  • Multifunction graphical LC display with backlighting
  • Animated representation of the systems and operating states

Operation

  • Multilingual menu navigation
  • Side switch for manual, auto, off

Functions

  • Auto-adaptive control algorithm
  • Data logger on SD card
  • Heat quantity (Grundfos Direct Sensors™, pulse generator)
  • Circulation (controlled by temperature / time / pulse)
  • Back-up heating
  • Thermal disinfection
  • Alarm output

Downloads

Product data sheet

  •  Steca TF A603 MC+ productdatasheet DE · pdf · 0,245 MB
  •  Steca TF A603 MC+ productdatasheet EN · pdf · 0.245 MB
  •  Steca TF A603 MC+ productdatasheet FR · pdf · 0,245 MB

Product pics, technical drawings, etc.

  •  Steca TF A603 MC+ product pic 3D · jpg, 300 DPI, high quality · 1.379 MB
  •  Steca TF A603 MC+ product pic 3D · jpg, 72 DPI, web quality · 0.436 MB
  •  Steca TF A603 MC+ product pic · jpg, 300 DPI, high quality · 1.251 MB
  •  Steca TF A603 MC+ product pic · jpg, 72 DPI, web quality · 0.374 MB
  •  Steca TF A603 MC+ product pic drawing · jpg, 300 DPI, high quality · 0.517 MB
  •  Steca TF A603 MC+ product pic drawing · jpg, 72 DPI, web quality · 0.263 MB

Technical data

 TF A603 MC+
System voltage
230 V AC (± 15 %), 50 Hz
System voltage optional
115 V AC (± 15 %), 60 Hz
Own consumption
≤ 2 W
Number of inputs
6
Inputs
5 x temperature (Pt1000), 1 x temperature (Pt1000) or pulse
Additional inputs
1 x Grundfos Direct Sensors™ (temperature / flow rate)
Number of outputs
3
Outputs
2 x triac for speed control (R1, R2), max. 250 W (230 V); 1 x switch output relay (R3), max. 800 W (230 V) or R3 voltage free
Additional output
1 x alarm output or backup heating requirement
Ambient temperature
0 °C … +45 °C
Interfaces
SD card, RS-232, RS-485 (Steca TPC 1 bus)
Data logging
SD card
Degree of protection
IP 20 / DIN 40050
Dimensions (X x Y x Z)
170 x 170 x 46 mm [0.00 x 0.00 x 0.00 inch]
Weight
450 g [0.00 oz]
