Steca TE A603+

Expansion module (Slave)

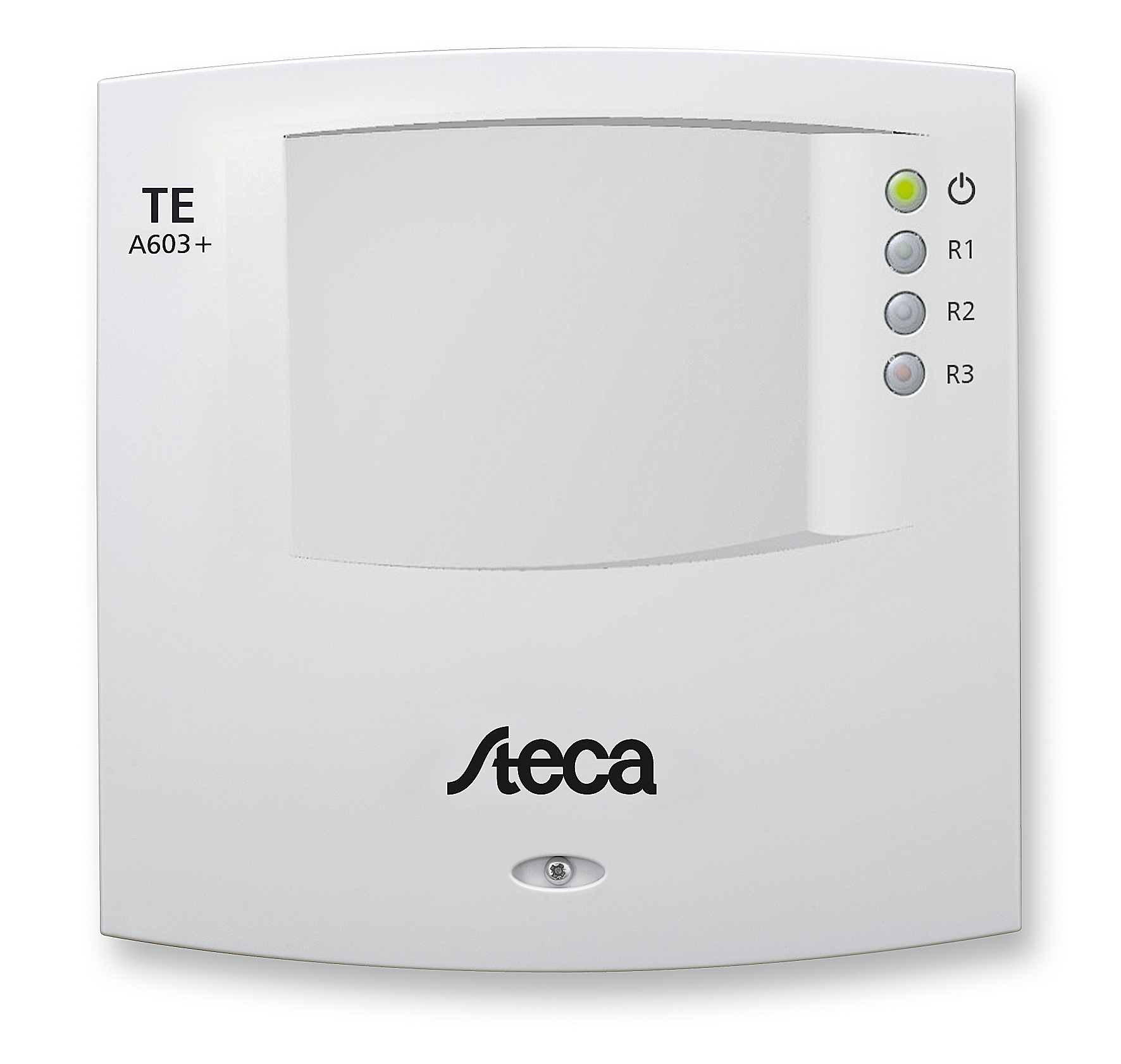

Steca TE A603  picture.jpg

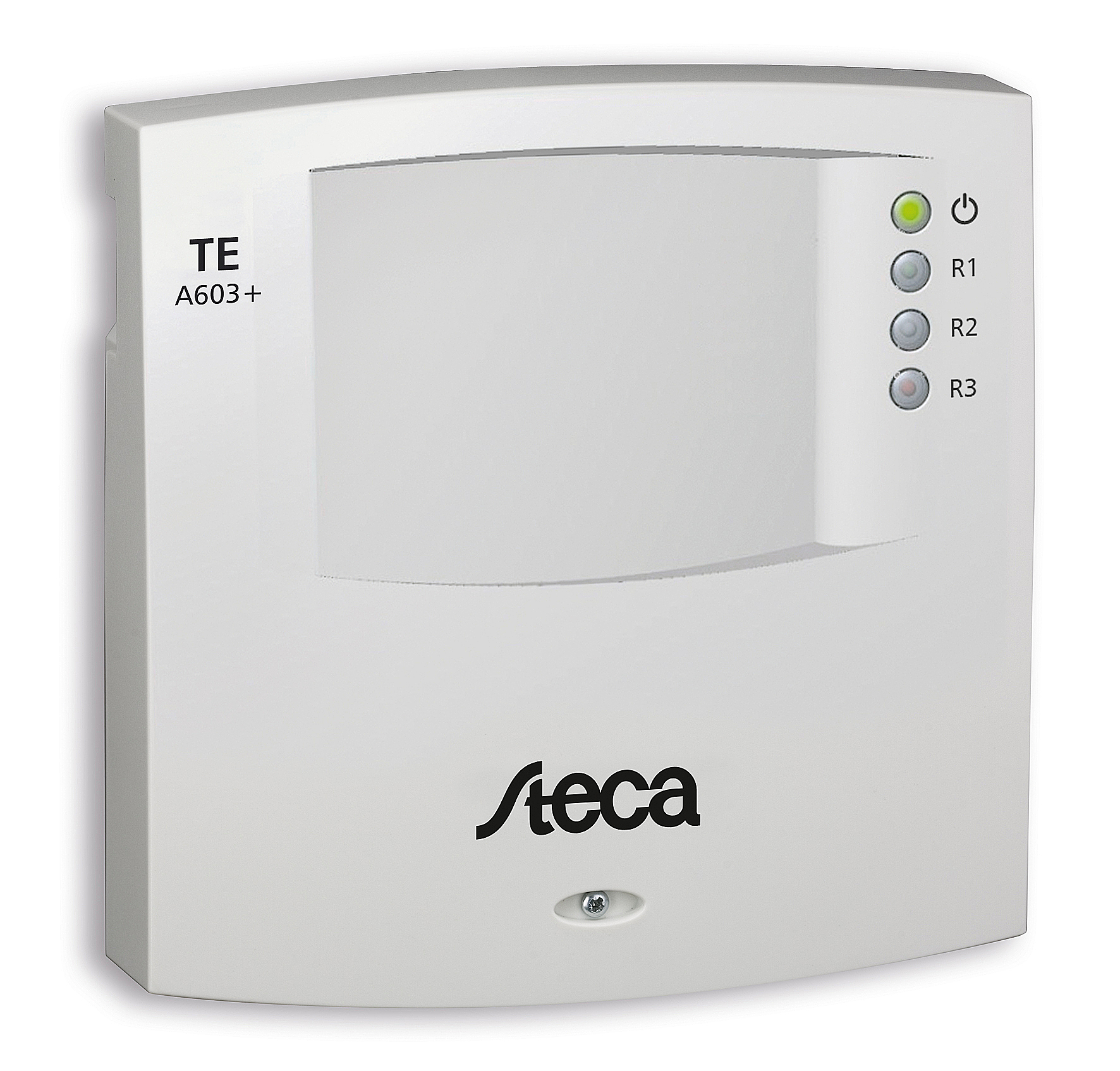

Steca TE A603  picture 3D.jpg

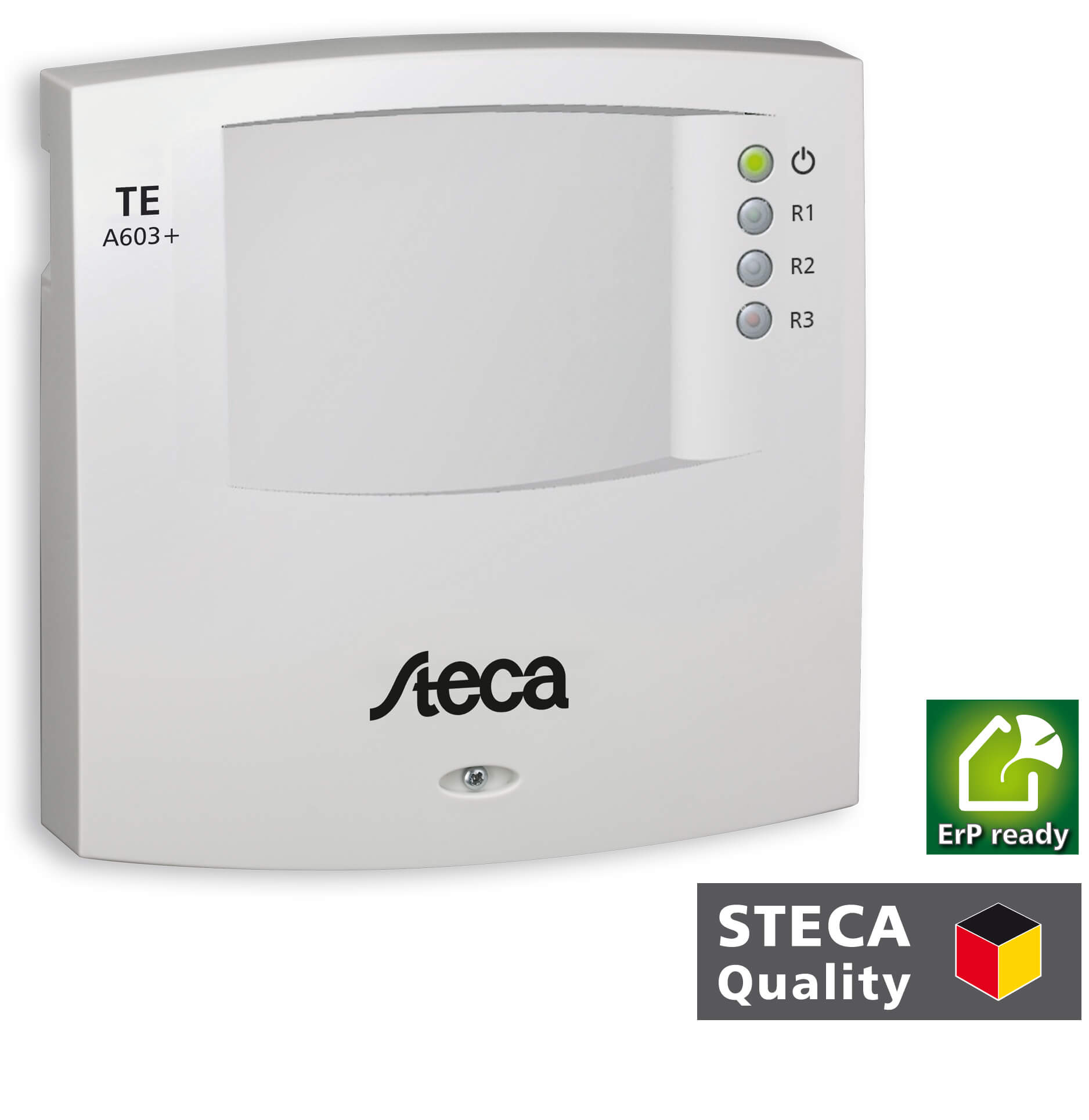

TE603  Produktbild Homepage.jpg
X
Steca TE A603  picture.jpg
Steca TE A603  picture 3D.jpg
TE603  Produktbild Homepage.jpg

Description

The Steca TE A603+ expansion module facilitates modular expansion of the Steca TR 0603mc+ and Steca TH A603 M system controllers. Optional functions and system expansions allow these system controllers to be adapted individually to the system to be controlled.

The Steca TE A603+ includes six inputs for recording temperatures or pulse values as well as an additional Grundfos Direct Sensors™ input for combined temperature and flow rate measurement. Pumps and switching valves are controlled using three outputs, some of which can be speed-controlled. Up to three Steca TE A603+ expansion modules can be connected as bus slaves via the Steca TPC 1 bus to the Steca TR 0603mc+ or Steca TH A603 M system controller. The user-friendly menu of the system controller is not only used to adjust all functions and parameters of the expansion module, but also monitor while it is running. Four LEDs provide information on the operating status of the expansion module.

Features

Technical drawing: Steca TE A603+ Expansion module (Slave)

Product features

  • Flexible and expandable
  • Master-slave concept
  • Compact, multipart designer casing
  • Electronic speed control
  • High level of operational safety through fault diagnosis
  • Hours-of-operation logger
  • Software update possible
  • Steca TPC 1 bus networking with the Steca TR 0603mc+ or Steca TH A603 M (Master) allows the realisation of individual systems
  • Screw terminals allow universal and rapid installation
  • Integrated Steca TPC 1 bus
  • Steca TPC 1 bus networking with the Steca TR 0603mc+ or Steca TH A603 M (Master) allows the realisation of individual systems

Displays

  • Measured values via the Steca TR 0603mc graphical LCD display or the Steca TH A603 M (Master)
  • 4 LEDs show operating states

Operation

  • User-friendly operation by using the Steca TR 0603mc or Steca TH A603 M (Master) menu system
  • Side button for TPC 1 bus addressing

Functions

  • 2 x heat quantity (Grundfos Direct Sensors™, pulse generator)
  • Active cooling (e.g. to avoid stagnation)
  • Circulation (controlled by temperature / time / pulse)
  • Solid fuel boiler
  • Bypass
  • Interval / tube collector
  • Anti-legionella cyclical storage tank heating
  • Back-up heating (with optimization for solar power)
  • 3 x thermostat
  • 3 x differential thermostat
  • 2 x timer
  • Alarm output
  • Synchronised output
  • Additional solar storage tank for connected solar controller
  • Booster function

Downloads

Product data sheet

  •  Steca TE A603+ productdatasheet DE · pdf · 0,236 MB
  •  Steca TE A603+ productdatasheet EN · pdf · 0.242 MB
  •  Steca TE A603+ productdatasheet FR · pdf · 0,243 MB

Product pics, technical drawings, etc.

  •  Steca TE A603+ product pic 3D · jpg, 300 DPI, high quality · 1.080 MB
  •  Steca TE A603+ product pic 3D · jpg, 72 DPI, web quality · 0.269 MB
  •  Steca TE A603+ product pic · jpg, 300 DPI, high quality · 0.960 MB
  •  Steca TE A603+ product pic · jpg, 72 DPI, web quality · 0.246 MB
  •  Steca TE A603+ product pic drawing · jpg, 300 DPI, high quality · 0.522 MB
  •  Steca TE A603+ product pic drawing · jpg, 72 DPI, web quality · 0.267 MB

Technical data

 TE A603+
System voltage
230 V AC (± 15 %), 50 Hz
System voltage optional
115 V AC (± 15 %), 60 Hz
Own consumption
≤ 2 W
Number of inputs
6
Inputs
5 x temperature (Pt1000), 1 x temperature (Pt1000) or pulse
Additional inputs
1 x Grundfos Direct Sensors™ (temperature / flow rate)
Number of outputs
3
Outputs
2 x triac for speed control (R1, R2), max. 250 W (230 V); 1 x switch output relay (R3), max. 800 W (230 V) or R3 voltage free
Additional output
1 x alarm output or 1 x voltage free (SELV)
Hydraulic schemes
40
Ambient temperature
0 °C … +45 °C
Interfaces
RS-232, RS-485 (Steca TPC 1 bus)
Degree of protection
IP 20 / DIN 40050
Dimensions (X x Y x Z)
170 x 170 x 46 mm [0.00 x 0.00 x 0.00 inch]
Weight
450 g [0.00 oz]
