Steca TA VM1 / TA VM2

Flow meter

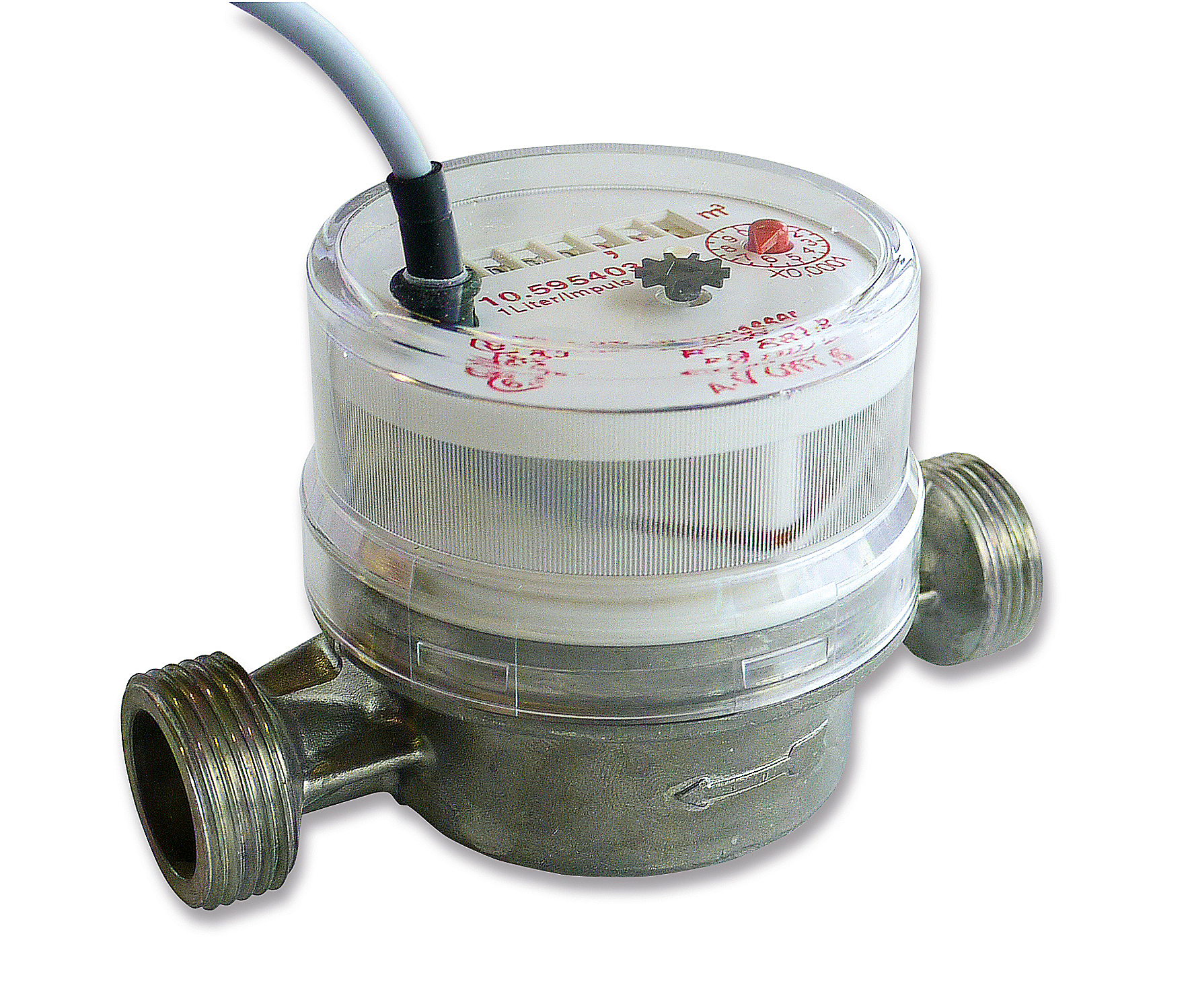

Steca TA VM picture 3D.jpg
X
Steca TA VM picture 3D.jpg

Description

The Steca TA VM1 / TA VM2 flow meters allow flow rate measurement of the water/water-glycol heat transfer fluid.

A contact maker (e.g. reed relay) is used to send a pulse to the solar thermal controller every time a defined quantity of fluid has passed through the system (e.g. 1 litre = 1 impulse or 10 litres = 1 impulse). At the same time, the controller determines the temperature difference between the supply and return temperatures and then calculates the heat quantity generated, by using this difference, the flow rate and the specific material characteristics of the heat transfer fluid. The heat quantity calculated is then finally displayed by the controller in kWh.

Features

Technical drawing: Steca TA VM1 / TA VM2 Flow meter

Product features

  • Installation and connection dimensions according to DIN ISO 4064
  • For horizontal and vertical installation
  • The series is equipped with special 2-point sapphire bearing and stainless-steel axle as a single-jet impeller counter in dry-running design with magnetic coupling and has been conceived according to the latest technology
  • To avoid disturbances caused by unclean water, only the impeller sits in the fluid path
  • The counter can be rotated for easier reading

Downloads

Product data sheet

  •  Steca TA VM1 / TA VM2 productdatasheet DE · pdf · 0,328 MB
  •  Steca TA VM1 / TA VM2 productdatasheet EN · pdf · 0.330 MB
  •  Steca TA VM1 / TA VM2 productdatasheet FR · pdf · 0,330 MB

Product pics, technical drawings, etc.

  •  Steca TA VM1 / TA VM2 product pic 3D · jpg, 300 DPI, high quality · 2.033 MB
  •  Steca TA VM1 / TA VM2 product pic 3D · jpg, 72 DPI, web quality · 0.842 MB
  •  Steca TA VM1 / TA VM2 product pic drawing · jpg, 300 DPI, high quality · 0.601 MB
  •  Steca TA VM1 / TA VM2 product pic drawing · jpg, 72 DPI, web quality · 0.315 MB

Technical data

 TA VM1TA VM2
Flow meter
Pulse rate
1 l/Impuls l/impulse
10 l/impulse
Nominal diameter
DN 15
DN 20
Max. operating pressure (according DIN 2401)
10 bar
Max. operating temperature
90 °C
Nominal flow
1.5 m³/h
2.5 m³/h
Max. flow
3 m³/h
5 m³/h
Connecting threads on meter body according ISO 228/1 (AGZ - Inch)
G ¾ B
G 1 B
Connecting threads of couplings according DIN 2999 (AGV - Inch)
R ½
R ¾
Contact loading (without series resistor)
28 V
Cable length
1.5 m
General
Dimensions (X x Y x Z)
110 x 70 x 90 mm
130 x 70 x 90 mm
Weight
800 g
1000 g
