Steca TA OP1

Overvoltage protection

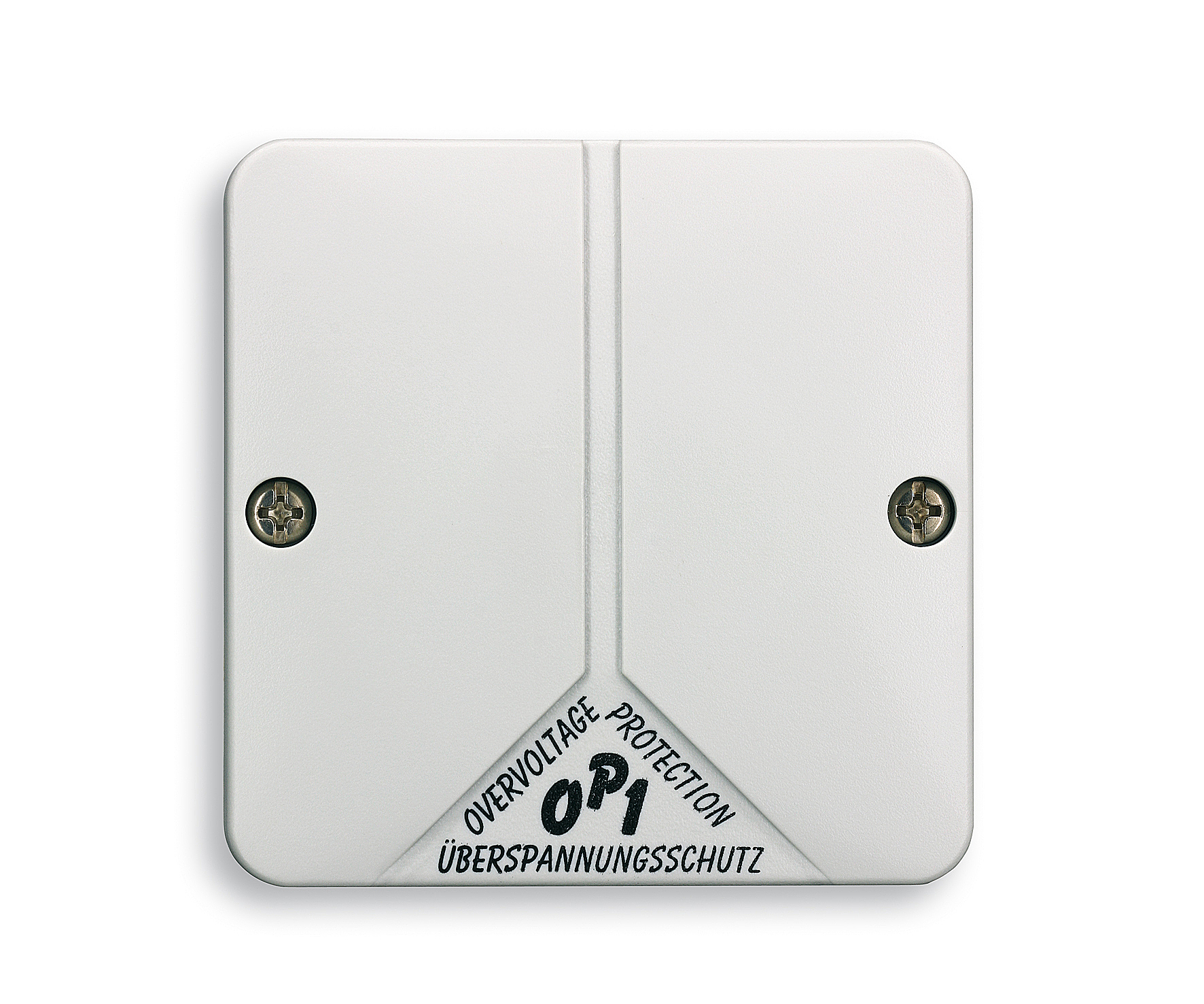

Steca TA OP 1 picture.jpg

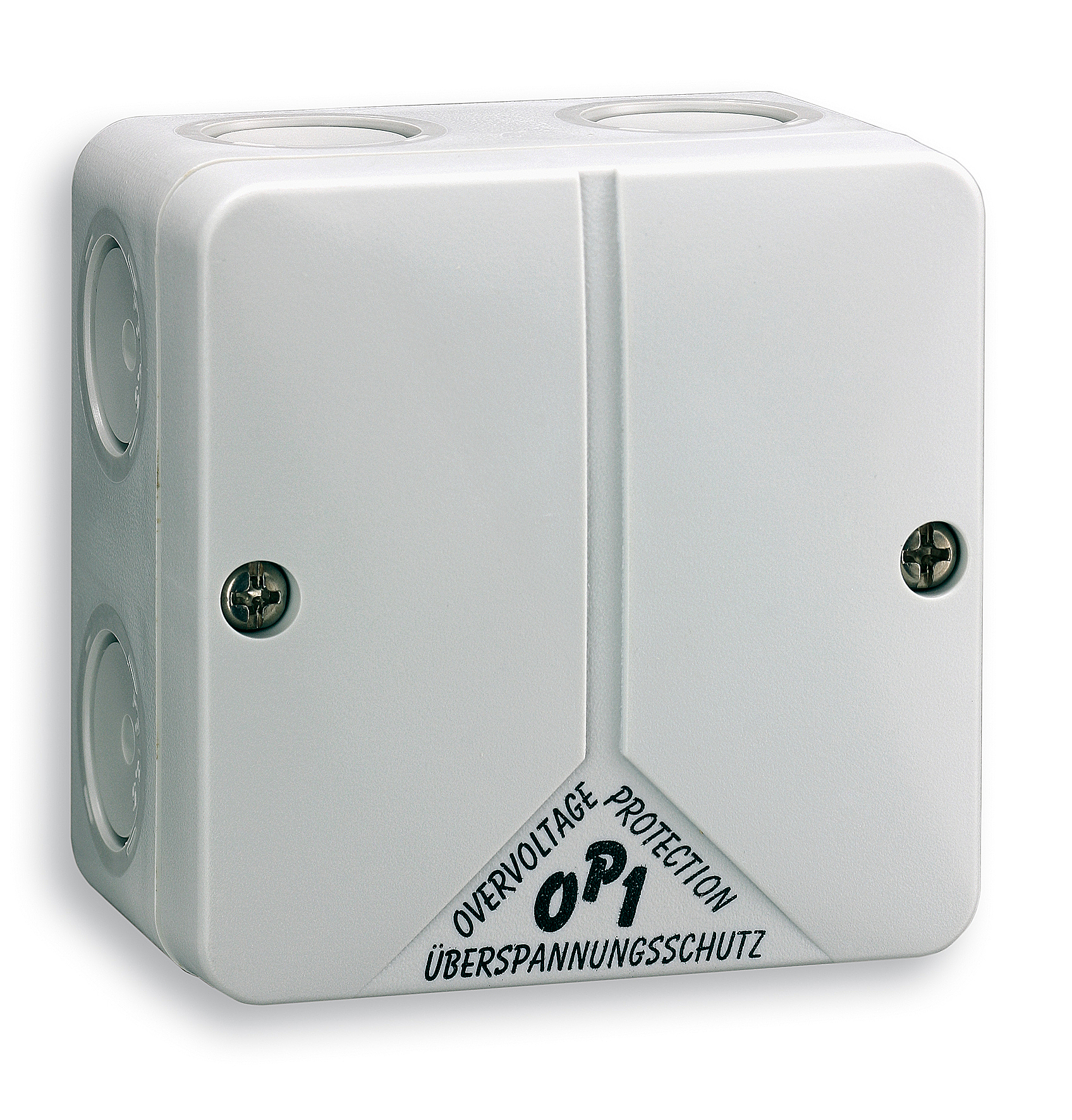

Steca TA OP 1 picture 3D.jpg
X
Steca TA OP 1 picture.jpg
Steca TA OP 1 picture 3D.jpg

Description

The Steca TA OP1 overvoltage protection unit is a connection socket in a splash-proof IP65 protective case and serves to protect the collector sensor against local lightning strikes and externally induced voltage spikes.

A varistor protective diode protects against atmospheric overvoltages that can lead to the destruction of the collector sensor. The use of the Steca TA OP1 is generally recommended for extra protection of the collector sensor in any type of solar thermal system. In addition, the simple operation of the spring terminals allows rapid and simple installation of the collector sensors using a sensor extension cable.

Features

Product features

  • Spring clamp terminals allow rapid and easy installation
  • IP 65 jet waterproof casing

Electronic protection functions

  • Varistors provide secure protection against local lightning strikes and externally induced voltage spikes

Downloads

Certificates

  •  Steca TA OP1 certificate CE · pdf · 1.062 MB

Product data sheet

  •  Steca TA OP1 productdatasheet DE · pdf · 0,204 MB
  •  Steca TA OP1 productdatasheet EN · pdf · 0.204 MB
  •  Steca TA OP1 productdatasheet FR · pdf · 0,204 MB

Manuals

  •  Steca TA OP1 manual DE · pdf · 0.305 MB
  •  Steca TA OP1 manual EN · pdf · 0.303 MB
  •  Steca TA OP1 manual ES · pdf · 0.304 MB
  •  Steca TA OP1 manual FR · pdf · 0.304 MB
  •  Steca TA OP1 manual IT · pdf · 0.303 MB
  •  Steca TA OP1 manual PT · pdf · 0.305 MB

Product pics, technical drawings, etc.

  •  Steca TA OP1 product pic 3D · jpg, 300 DPI, high quality · 2.231 MB
  •  Steca TA OP1 product pic 3D · jpg, 72 DPI, web quality · 0.633 MB
  •  Steca TA OP1 product pic · jpg, 300 DPI, high quality · 1.267 MB
  •  Steca TA OP1 product pic · jpg, 72 DPI, web quality · 0.343 MB

Technical data

 TA OP1
Ambient temperature
-25 °C … +70 °C
Degree of protection
IP 65 / DIN 40050
General
Dimensions (X x Y x Z)
80 x 80 x 50 mm
Weight
50 g
