Steca Solsum

5.0c, 8.0c, 6.6c, 8.8c, 10.10c

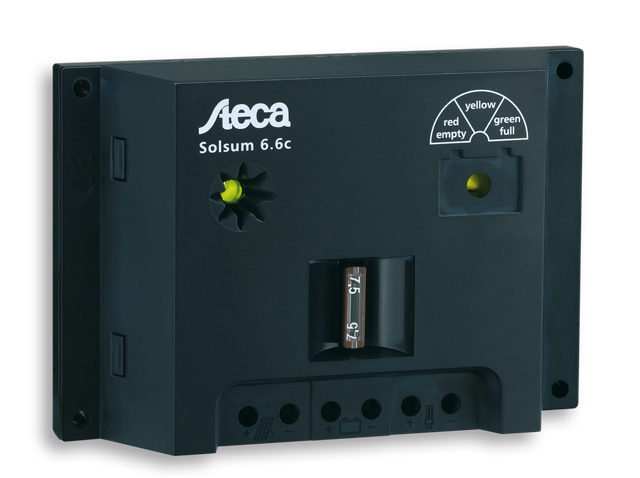

Solsum 6 6c 3D.jpg
X
Solsum 6 6c 3D.jpg

Description

The Steca Solsum is one of the most sold charge controllers on the market. It is optimally suited for use in solar home systems with load currents of up to 10 A at 12 V/24 V and up to 240 Wp module output.

The Solsum C generation has a completely protected circuit board and is distinguished by its clear display, which uses two LEDs. This generation of charge controllers has also been conceived to allow the controllers to be made and repaired on-site in large projects.

Features

Product features

  • Shunt controller
  • Automatic detection of voltage
  • Voltage regulation
  • PWM control
  • Multistage charging technology
  • Load disconnection depending on voltage
  • Automatic load reconnection
  • Temperature compensation
  • Negative earthing of one or positive earthing of several terminals possible
  • Monthly equalisation charge

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of module and battery
  • Reverse polarity protection by internal fuse
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection
  • Battery overvoltage shutdown

Displays

  • Multi-coloured LED
  • 2 LEDs show operating states
  • for operation, state of charge, fault messages

Certificates

  • Approved by the World Bank for Bangladesh, China, Laos, Nepal, Sri Lanka, Uganda and Indonesia
  • Fit for use in tropical areas (DIN IEC 68 part 2-30)
  • Compliant with European Standards (CE)
  • RoHS compliant
  • Developed in Germany
  • Manufactured according to ISO 9001 and ISO 14001

Downloads

Product data sheet

  •  Steca Solsum productdatasheet DE · pdf · 0,257 MB
  •  Steca Solsum productdatasheet EN · pdf · 0.290 MB
  •  Steca Solsum productdatasheet FR · pdf · 0,915 MB

Manuals

  •  Steca Solsum manual DE · pdf · 0.143 MB
  •  Steca Solsum manual EN · pdf · 0.143 MB
  •  Steca Solsum manual ES · pdf · 0.145 MB
  •  Steca Solsum manual FR · pdf · 0.145 MB
  •  Steca Solsum manual IT · pdf · 0.140 MB
  •  Steca Solsum manual PT · pdf · 0.141 MB
