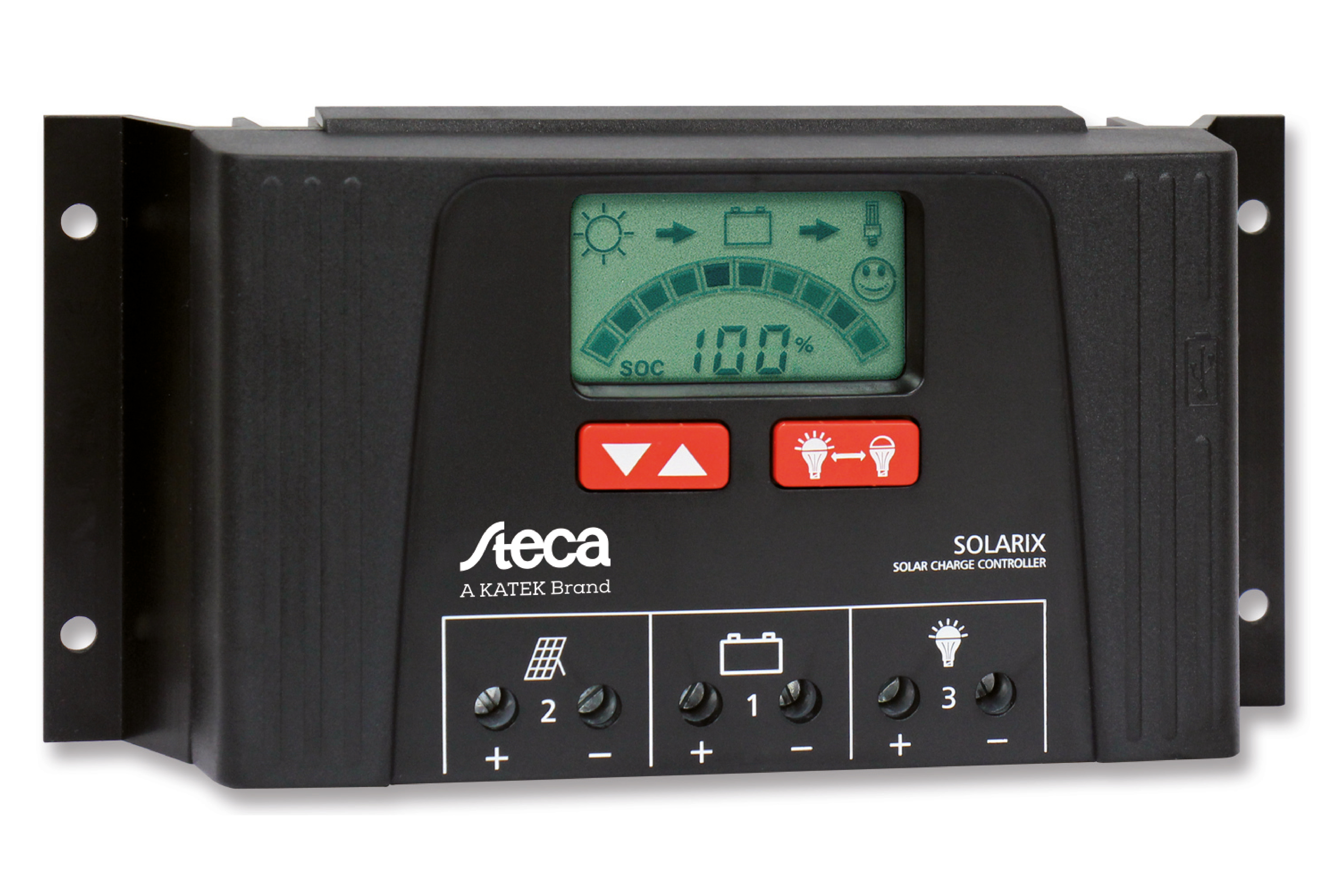

Steca Solarix

2525, 4040

  • High End State of Charge control (SOC)
  • Professional battery care
  • Full graphical display
  • Automatic battery voltage detection
  • Full load protection
Steca Solarix
Steca Solarix technische Zeichnung
X
Steca Solarix
Steca Solarix technische Zeichnung

Description

Solar charge controllers Steca Solarix 2525 and 4040 are newly developed products based on the internationally renowned controller family Steca PR. With increased module and load current, the controllers are now also suitable for even larger systems. The devices also feature an integrated USB charging port for charging smartphones and tablets.
Use of the latest charging technologies combined with state of charge determination enable optimal battery maintenance and module power monitoring. A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually as a level meter. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display. In addition, the controller has an energy meter which can be reset by the user.

Features

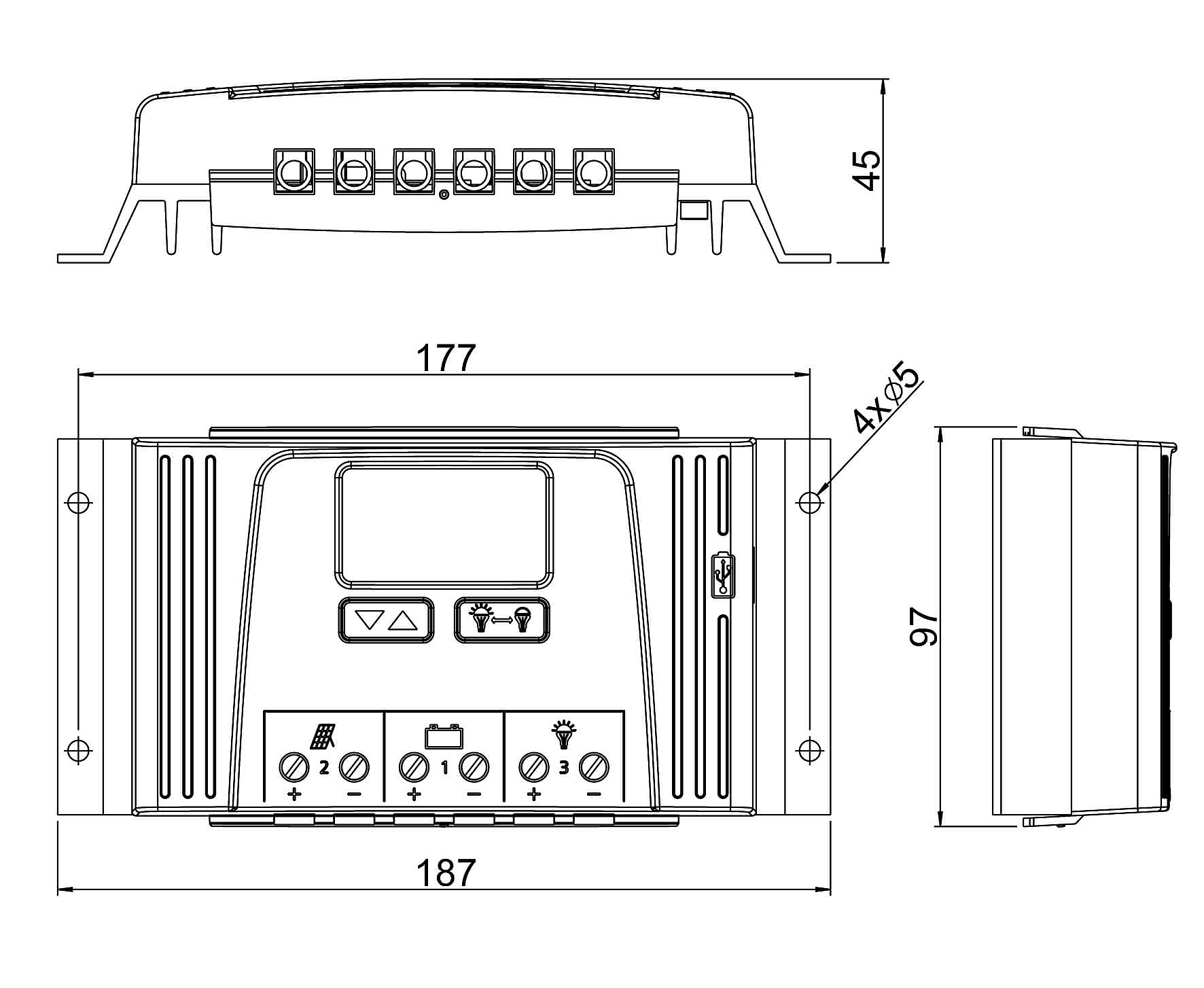

Technical drawing: Steca Solarix 2525, 4040

Product features

  • Shunt topology with MOSFETs
  • State of charge determination with Steca AtonIC (SOC)
  • Automatic detection of voltage
  • PWM control
  • Multistage charging technology
  • Load disconnection depending on SOC
  • Automatic load reconnection
  • Temperature compensation
  • Negative earthing of one or positive earthing of several terminals possible
  • Integrated data logger (energy meter)
  • Evening, night light and daylight functions
  • Integrated self test
  • Monthly equalisation charge
  • USB charge socket for smartphones and tablets

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of module, load and battery
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection
  • Load disconnection on battery overvoltage

Displays

  • Graphical LC display
  • for operating parameters, fault messages, self test

Operation

  • Simple menu-driven operation
  • Programming by buttons
  • Manual load switch

Options

  • Alarm contact

Certificates

  • Compliant with European Standards (CE)
  • RoHS compliant
  • Made in EU
  • Manufactured according to ISO 9001 and ISO 14001

Accessories

  • External temperature sensor Steca PA TS10

Downloads

Certificates

  •  Steca Solarix certificate CE · pdf · 0.779 MB

Product data sheet

  •  Steca Solarix productdatasheet DE · pdf · 1,021 MB
  •  Steca Solarix productdatasheet EN · pdf · 1.021 MB
  •  Steca Solarix productdatasheet FR · pdf · 1,022 MB

Manuals

  •  Steca Solarix manual DE · pdf · 0.706 MB
  •  Steca Solarix manual EN · pdf · 0.701 MB
  •  Steca Solarix manual ES · pdf · 0.713 MB
  •  Steca Solarix manual FR · pdf · 0.713 MB
  •  Steca Solarix manual IT · pdf · 0.694 MB
  •  Steca Solarix manual PT · pdf · 0.697 MB

Product pics, technical drawings, etc.

  •  Steca Solarix product pic drawing · jpg, 300 DPI, high quality · 0.263 MB
  •  Steca Solarix product pic drawing · jpg, 72 DPI, web quality · 0.099 MB

Technical data

 25254040
Characterisation of the operating performance
System voltage
12 V (24 V)
Own consumption
18,5 mA
DC input side
Open circuit voltage solar module (at minimum operating temperature)
< 47 V
Module current
25 A
40 A
DC output side
Load current
25 A
40 A
USB charge socket
5.2 V / 1.5 A
Reconnection voltage (SOC / LVR)
> 50 % / 12.6 V (25.2 V)
Deep discharge protection < 30 % (SOC / LVD)
< 30 % / 11.1 V (22.2 V)
Battery side
End-of-charge voltage
13.9 V (27.8 V)
Boost charge voltage
14.4 V (28.8 V)
Equalisation charge
14.7 V (29.4 V)
Set battery type
liquid (adjustable via menu)
Operating conditions
Ambient temperature
-10 °C … +50 °C
Fitting and construction
Terminal (fine / single wire)
16 mm² / 25 mm² - AWG 6 / 4
Degree of protection
IP 30
Dimensions (X x Y x Z)
187 x 97 x 45 mm
Weight
350 g

  • Technical data at 25 °C / 77 °F
  • Inverters must not be connected to the load output.
