Steca Solarix

Alpha, Gamma, Sigma, Omega­

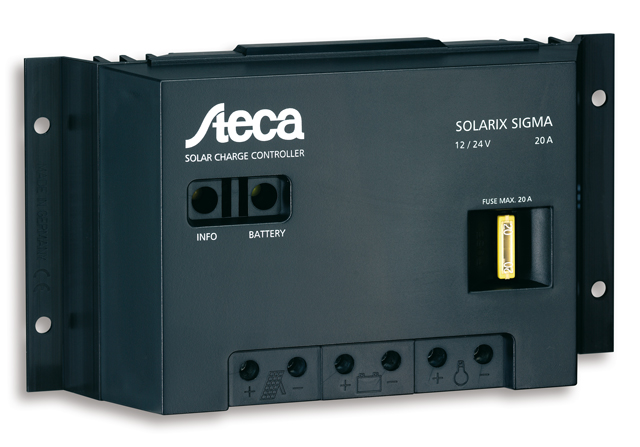

Solarix Sigma 3D.jpg
X
Solarix Sigma 3D.jpg

Description

The Steca Solarix is the world's most widely used charge controller in systems of between 8 and 30 A (up to 900 Wp).

Thanks to its well-known Steca-AtonIC state of charge determination, the controller ensures optimal battery protection using a piece of programmed software. The software includes an auto-adaptive algorithm which displays the state of charge of the battery and adjusts to the capacity and age of the battery. The charge controller brings together the advantages of a shunt controller and those of a serial controller through a switching concept developed by KATEK Memmingen, the so-called hybrid actuator. This has increased the device safety through a combination of electronic and electromechanical protective devices.

Features

Product features

  • Shunt topology with MOSFETs
  • MicroSD slot for data logging of all minute values
  • State of charge determination with Steca AtonIC (SOC)
  • Automatic detection of voltage
  • PWM control
  • Multistage charging technology
  • Load disconnection depending on SOC
  • Automatic load reconnection
  • Temperature compensation
  • Negative earthing of one or positive earthing of several terminals possible
  • MicroSD slot for data logging of all minute values
  • Integrated self test
  • Monthly equalisation charge

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of module and battery
  • Reverse polarity protection by internal fuse
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection
  • Battery overvoltage shutdown

Displays

  • Multi-coloured LED
  • 2 LEDs show operating states
  • for operation, state of charge, fault messages

Operation

  • Configuration by jumpers

Options

  • External temperature sensor
  • Alarm contact

Certificates

  • Approved by the World Bank for Bangladesh, China, Laos, Nepal, Sri Lanka, Uganda and Indonesia
  • Approved for 'ONE' projects in Morocco
  • ThermieB: SUP-995-96
  • Fit for use in tropical areas (DIN IEC 68 part 2-30)
  • Compliant with European Standards (CE)
  • RoHS compliant
  • UL listing in 1999
  • Made in Germany
  • Developed in Germany
  • Manufactured according to ISO 9001 and ISO 14001

Downloads

Product data sheet

  •  Steca Solarix productdatasheet DE · pdf · 0,204 MB
  •  Steca Solarix productdatasheet EN · pdf · 0.220 MB
  •  Steca Solarix productdatasheet FR · pdf · 0,247 MB

Manuals

  •  Steca Solarix manual DE · pdf · 0.262 MB
  •  Steca Solarix manual EN · pdf · 0.257 MB
  •  Steca Solarix manual ES · pdf · 0.261 MB
  •  Steca Solarix manual FR · pdf · 0.265 MB
  •  Steca Solarix manual IT · pdf · 0.268 MB
