Steca Solarix PRS

PRS 1010, PRS 1515, PRS 2020, PRS 3030

  • Easy to use charge controller
  • LED display
  • Automatic battery voltage detection
  • Full load protection
  • Low self consumption

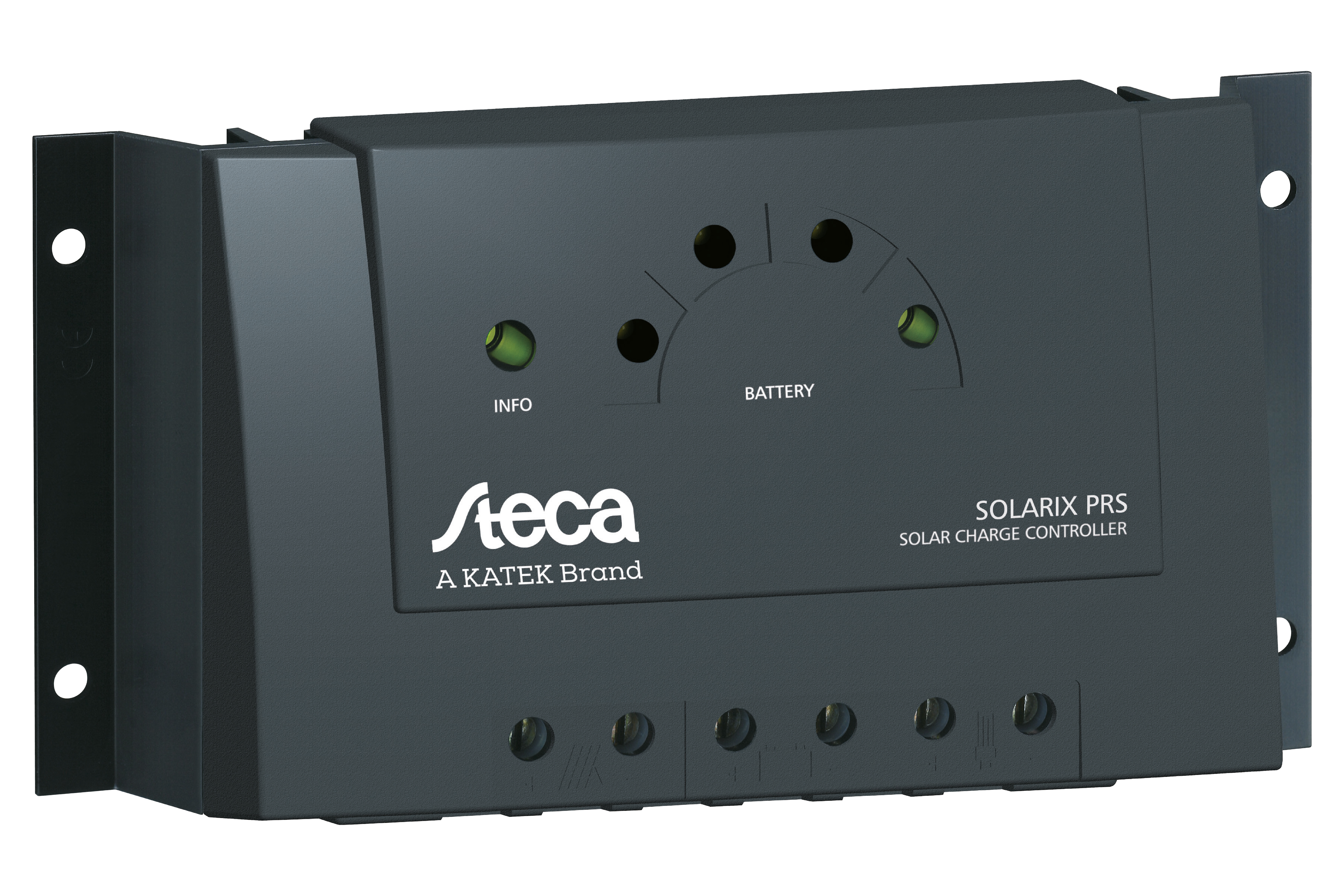

Steca Solarix PRS picture.jpg
Steca Solarix PRS picture 3D.jpg
X
Steca Solarix PRS picture.jpg
Steca Solarix PRS picture 3D.jpg

Description

The simplicity and high performance of the Steca Solarix PRS solar charge controller make it particularly appealing. At the same time, it offers a modern design and a convenient display, all at an extremely attractive price.

Several LEDs in various colours give information on the battery‘s state of charge. Here, Steca’s latest algorithms are employed, resulting in optimal battery maintenance. The Solarix PRS charge controllers are equipped with an electronic fuse, thus making optimal protection possible. They operate on the serial principle, and separate the solar module from the battery in order to protect it against overcharging.

For larger projects, the charge controllers can also be equipped with special functions: e.g. with night light function and selectable charging plateau and deep-discharge protection voltages.

Features

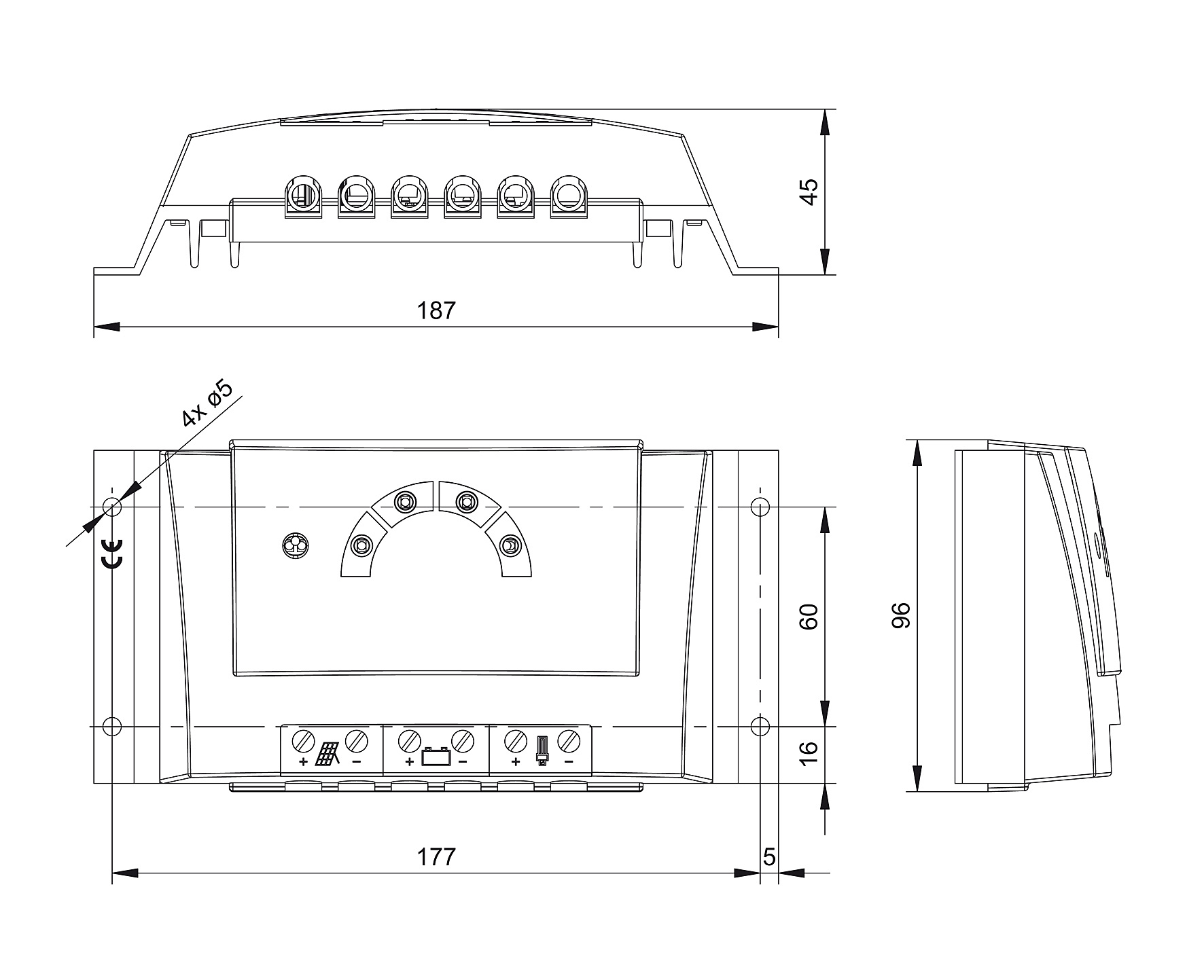

Technical drawing: Steca Solarix PRS PRS 1010, PRS 1515, PRS 2020, PRS 3030

Product features

  • Serial topology with MOSFETs
  • Automatic detection of voltage
  • Voltage regulation
  • PWM control
  • Multistage charging technology
  • Current compensated load disconnection
  • Automatic load reconnection
  • Temperature compensation
  • Negative earthing of one or positive earthing of several terminals possible
  • Monthly equalisation charge

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of module (≤36 V),load and battery
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection
  • Load disconnection on battery overvoltage

Displays

  • Multifunction LED display
  • Multi-coloured LED
  • 5 LEDs show operating states
  • for operation, state of charge, fault messages

Options

  • Evening or night light function pre-set in the factory or adjustable via Steca PA RC 100
  • Parameterisation of function values via Steca PA RC 100

Certificates

  • Compliant with European Standards (CE)
  • RoHS compliant
  • Made in EU
  • Manufactured according to ISO 9001 and ISO 14001

Accessories

  • Steca PA RC100

Downloads

Certificates

  •  Steca Solarix PRS certificate CE_Zertifikat_Solarix_PRS · pdf · 0.859 MB

Product data sheet

  •  Steca Solarix PRS productdatasheet DE · pdf · 0,249 MB
  •  Steca Solarix PRS productdatasheet EN · pdf · 0.249 MB
  •  Steca Solarix PRS productdatasheet FR · pdf · 0,250 MB

Manuals

  •  Steca Solarix PRS manual DE · pdf · 0.409 MB
  •  Steca Solarix PRS manual EN · pdf · 0.395 MB
  •  Steca Solarix PRS manual ES · pdf · 0.396 MB
  •  Steca Solarix PRS manual FR · pdf · 0.395 MB
  •  Steca Solarix PRS manual IT · pdf · 0.392 MB

Product pics, technical drawings, etc.

  •  Steca Solarix PRS product pic 3D · jpg, 300 DPI, high quality · 0.067 MB
  •  Steca Solarix PRS product pic 3D · jpg, 72 DPI, web quality · 0.067 MB
  •  Steca Solarix PRS product pic · jpg, 300 DPI, high quality · 0.068 MB
  •  Steca Solarix PRS product pic · jpg, 72 DPI, web quality · 0.068 MB
  •  Steca Solarix PRS product pic drawing · jpg, 300 DPI, high quality · 0.279 MB
  •  Steca Solarix PRS product pic drawing · jpg, 72 DPI, web quality · 0.148 MB

Technical data

 PRS 1010PRS 1515PRS 2020PRS 3030
Characterisation of the operating performance
System voltage
12 V (24 V)
Own consumption
< 4 mA
DC input side
Open circuit voltage solar module (at minimum operating temperature)
< 47 V
Module current
10 A
15 A
20 A
30 A
DC output side
Load current
10 A
15 A
20 A
30 A
Reconnection voltage (LVR)
12.4 V … 12.7 V (24.8 V … 25.4 V)
Deep discharge protection (LVD)
11.2 V … 11.6 V (22.4 V … 23.2 V)
Battery side
Battery voltage
9 V … 17 V (17.1 V … 34 V)
End-of-charge voltage
13.9 V (27.8 V)
Boost charge voltage
14.4 V (28.8 V)
Equalisation charge
14.7 V (29.4 V)
Set battery type
liquid
Operating conditions
Ambient temperature
-25 °C … +50 °C
Fitting and construction
Terminal (fine / single wire)
16 mm² / 25 mm² - AWG 6 / 4
Degree of protection
IP 31
Dimensions (X x Y x Z)
187 x 96 x 45 mm
Weight
345 g

  • Technical data at 25 °C / 77 °F
  • adjustable via Steca PA RC100: reconnection voltage, deep discharge protection, end of charge voltage, boost charge voltage, equalisation charge, battery type
  • Inverters must not be connected to the load output.
