Steca Solarix PLI

5000-48, 2400-24, 1000-12

PLI vorne
Solarix PLI 2400 24 vorne.JPG
Solarix PLI 5000 2400
X
PLI vorne
Solarix PLI 2400 24 vorne

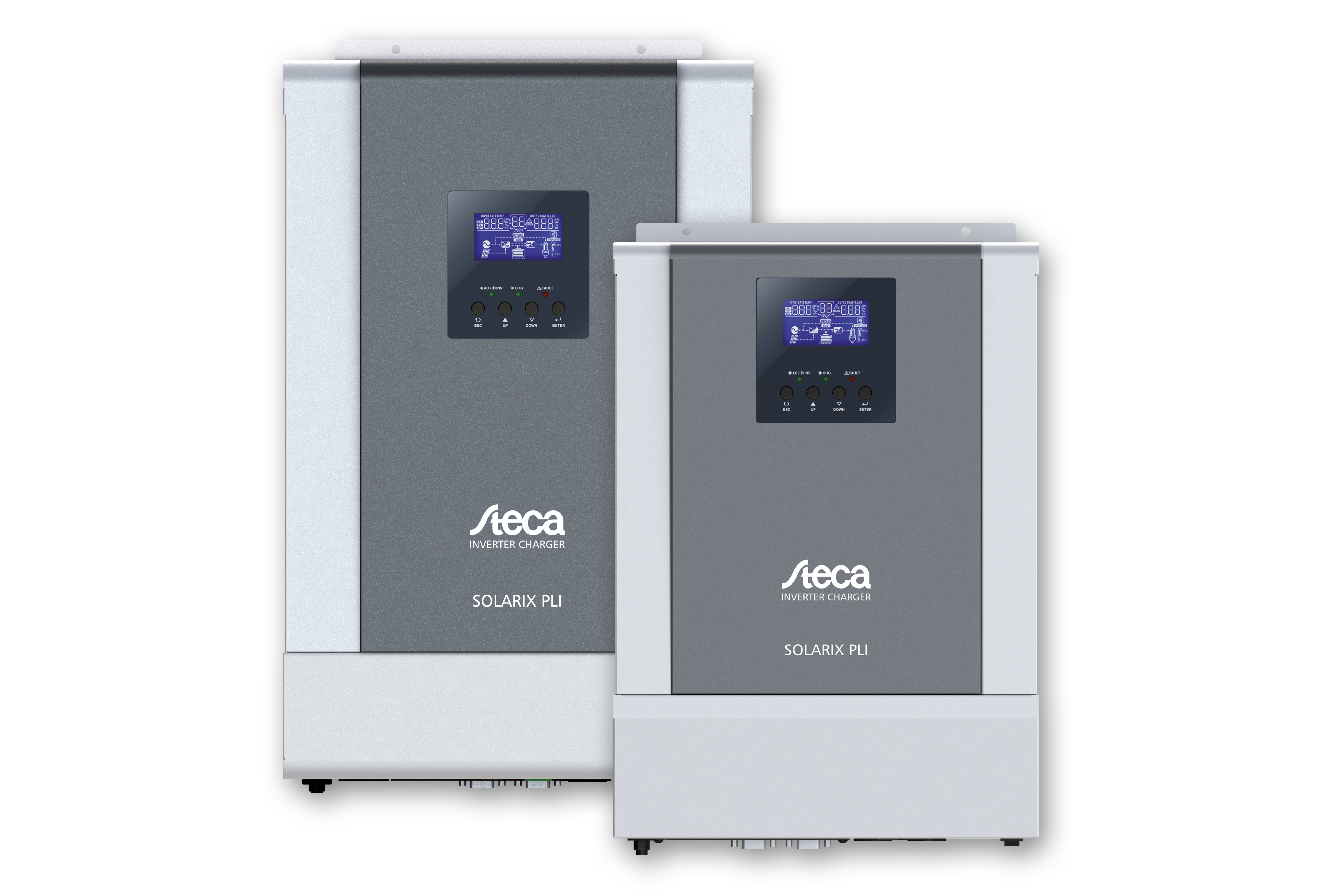

Solarix PLI 5000 2400

Description

The Steca Solarix PLI is the first product from Steca Elektronik to offer an all-in-one package. It allows users to supply consumers with 230 V AC power, charges the battery with an integrated MPPT charge controller, and at the same time permits connection to a generator or an available electricity grid.
Everything in a single device.
This means that solar energy can be used as the top priority, for example. And if that isn’t enough, a generator can be started or the supply can be switched to the public grid. At the same time, the battery can also be recharged by either the generator or the grid. Given its very quick switchover time of up to 10 ms and its flexible energy priority selection, the Solarix PLI also acts as an
uninterruptible power supply.
Even difficult consumers, such as large AC motors, can be started reliably with dual overload capacity. The maximum power point tracker in the integrated charge controller ensures that, even in unfavourable lighting conditions, the maximum output is obtained from the PV modules in order to optimally charge the battery and supply the consumers with power at the same time.

Features

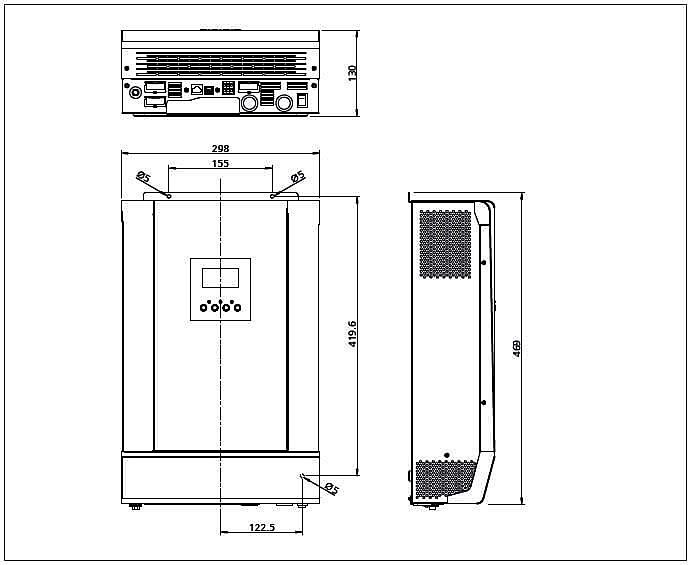

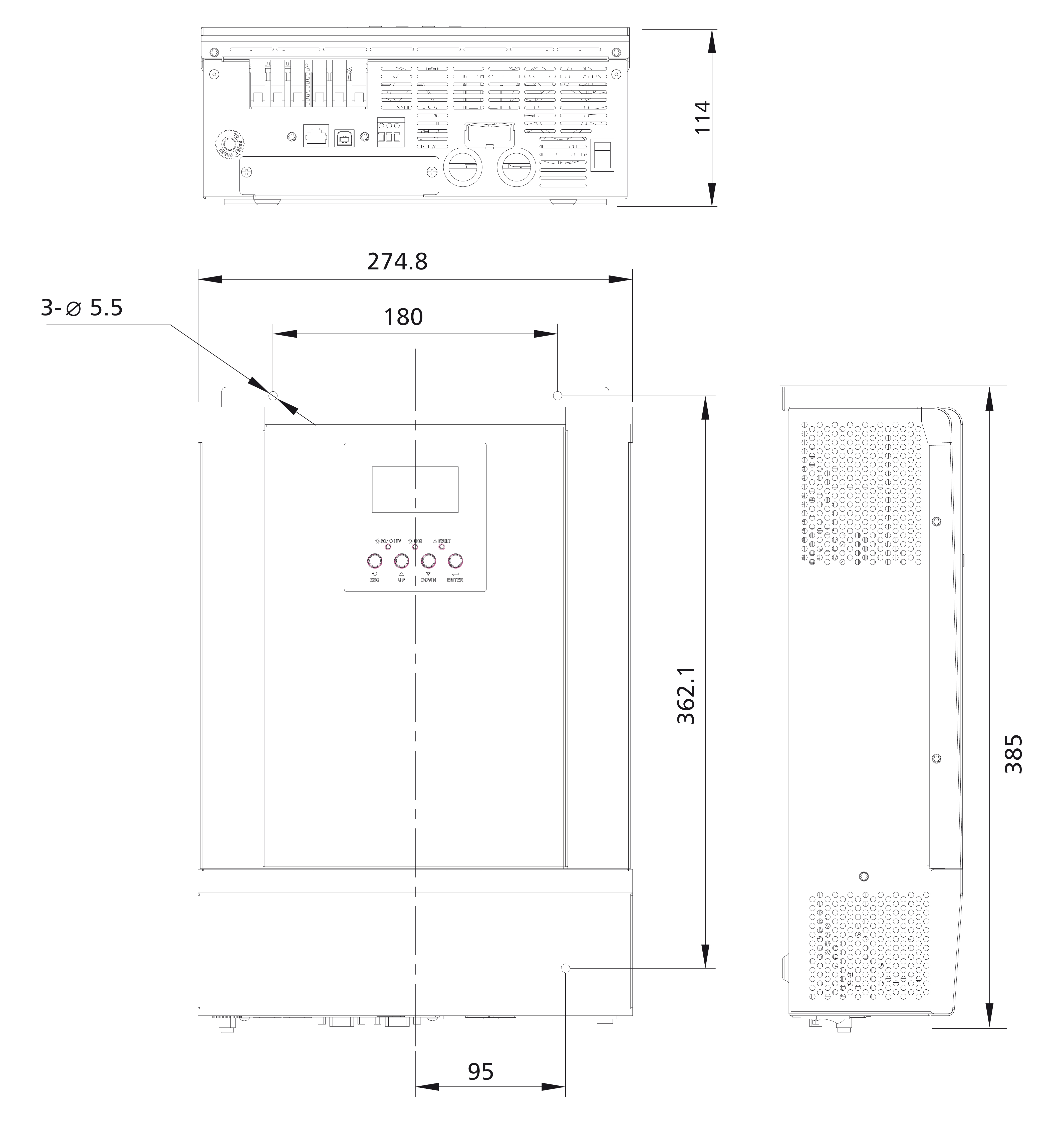

Technical drawing: Steca Solarix PLI 5000-48, 2400-24, 1000-12

Product features

  • True sine wave voltage
  • High overload capacity
  • Integrated MPP tracker
  • Multistage charging technology
  • Monthly equalisation charge
  • Auxiliary contact for starting the generator
  • Adjustable cut-off voltages
  • Battery type: gel / liquid lead battery
  • Lightweight construction
  • Easy installation

Electronic protection functions

  • Overcharge protection
  • Reverse polarity protection of modules, for battery via fuse
  • Deep discharge protection
  • Short circuit protection of load and module
  • Reverse polarity protection by internal fuse
  • Reverse current protection at night
  • Overtemperature and overload protection
  • Acoustic alarm
  • PE connection

Displays

  • Graphical LC display
  • 3 multi-coloured LEDs show operating states

Operation

  • Simple menu-driven operation
  • Programming by buttons

Interfaces

  • RS-232 serial interface to PC

Options

  • Interconnectable in parallel or in three phases (parallel kit required)

Certificates

  • Compliant with European Standards (CE)
  • RoHS compliant
  • Manufactured according to ISO 9001 and ISO 14001

Videos

Downloads

Certificates

  •  Steca Solarix PLI certificate CE · pdf · 0.776 MB
  •  Steca Solarix PLI certificate CE · pdf · 0.770 MB
  •  Steca Solarix PLI certificate CE · pdf · 0.833 MB

Product data sheet

  •  Steca Solarix PLI productdatasheet EN · pdf · 0.338 MB

Further downloads

  •  Steca Solarix PLI download additional information DE · pdf · 3.222 MB
  •  Steca Solarix PLI download Flyer DE · pdf · 0.717 MB
  •  Steca Solarix PLI download Flyer EN · pdf · 0.714 MB
  •  Steca Solarix PLI download additional information EN · pdf · 2.307 MB

Manuals

  •  Steca Solarix PLI manual EN · pdf · 3.666 MB
  •  Steca Solarix PLI manual DE · pdf · 3.683 MB
  •  Steca Solarix PLI manual FR · pdf · 3.116 MB
  •  Steca Solarix PLI manual Parallel Kit DE · pdf · 3.170 MB
  •  Steca Solarix PLI manual Parallel Kit EN · pdf · 3.160 MB
  •  Steca Solarix PLI manual Parallel Kit FR · pdf · 3.146 MB

Product pics, technical drawings, etc.

  •  Steca Solarix PLI product pic · jpg, 300 DPI, high quality · 0.055 MB
  •  Steca Solarix PLI product pic · jpg, 72 DPI, web quality · 0.025 MB
  •  Steca Solarix PLI product pic · jpg, 300 DPI, high quality · 1.856 MB
  •  Steca Solarix PLI product pic · jpg, 72 DPI, web quality · 0.820 MB
  •  Steca Solarix PLI product pic 3D · jpg, 300 DPI, high quality · 1.333 MB
  •  Steca Solarix PLI product pic 3D · jpg, 72 DPI, web quality · 0.737 MB
  •  Steca Solarix PLI product pic 3D · jpg, 300 DPI, high quality · 1.726 MB
  •  Steca Solarix PLI product pic 3D · jpg, 72 DPI, web quality · 0.367 MB

Technical data

 PLI 5000-48 PLI 2400-24PLI 1000-12
Characterisation of the operating performance
System voltage
48 V
24 V
12 V
Continuous power
5000 VA
3000 VA
1000 VA
Power 5 sec.
10000 VA
6000 VA
2000 VA
Max. efficiency sine wave
> 93 %
> 91 %
> 90 %
Max. efficiency charge controller
> 98 %
> 98 %
> 95 %
Own consumption standby
15.0 W
14.0 W
4.0 W
Own consumption ON
50.0 W
45.0 W
17.0 W
Input side
Input voltage
90 V AC … 280 V AC
Max. current on transfer system
40 A
30 A
10 A
Input frequency
40 ... 65 Hz
50 / 60 Hz (automatic detection)
Transfer time
10 ms typical (UPS mode)
AC output side
Output voltage
230 V AC +/-5 %
220 V AC … 240 V AC +/-5 %
230 V AC +/-5 %
Output frequency
50 / 60 Hz
Battery side
Battery voltage
38.4 V ... 66 V
20 V … 30 V
10 V … 15 V
Max. charge current of PV
80 A
40 A
40 A
Max. charge current of AC
60 A (programmable)
60 A (programmable)
20 A (programmable)
End of charge voltage
54.0 V (programmable)
27.0 V (programmable)
13.5 V (programmable)
Boost charge voltage
56.4 V (programmable)
28.2 V (programmable)
14.1 V (programmable)
Equalisation charge
60.0 V (programmable)
29.2 V (programmable)
14.6 V (programmable)
Set battery type
liquid (programmable)
DC input side charge controller
Min. MPP voltage
60 V
30 V
15 V
Max. MPP voltage
115 V
80 V
80 V
Min. open circuit voltage solar module / input (at minimum operating temperature)
72 V
36 V
18 V
Max. open circuit voltage solar module / input (at minimum operating temperature)
145 V
100 V
100 V
Max. module current
80 A
40 A
40 A
Nominal charge power
4800 W
1168 W
550 W
Own consumption
< 2 W
Operating conditions
Operating temperature
0 °C … + 55 °C
Storage temperature
- 15 °C … + 60 °C
Rel. humidity
< 95 %, non-condensing
Maximum altitude
2000 a.s.l
Fitting and construction
Terminal (AC - fine / single wire)
8 mm² - AWG 8
Terminal (PV - fine / single wire)
12 mm² - AWG 6
8 mm² - AWG 8
8 mm² - AWG 8
Battery connection
(M6 ring terminal included)
35 mm² ... 50 mm²
AWG 2 ... AWG 0
35 mm² ... 50 mm²
AWG 2 ... AWG 0
25 mm² / AWG3
Double throw signal contact
3 A / 250 V AC (max. 150 W)
3 A / 30 V DC
Degree of protection
IP 21
Dimensions (X x Y x Z)
298 x 469 x 130 mm
275 x 385 x 114 mm
243 x 331 x 115 mm
Weight
11,5 kg
7,6 kg
6,9 kg
Cooling principle
fan

  • Technical data at 25 °C / 77 °F
