Steca Solarix 24-44

2401, 4401

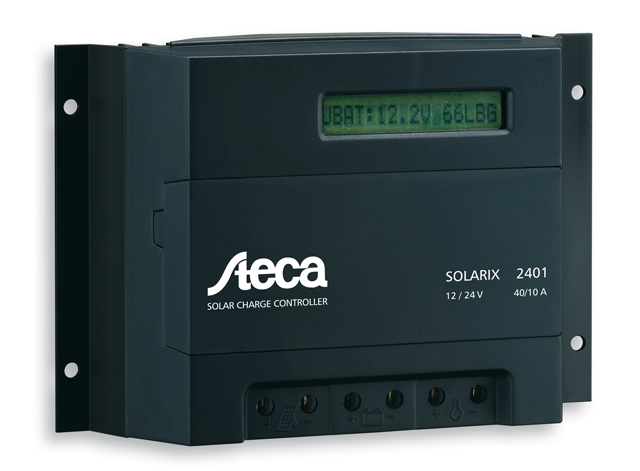

Solarix 2401 4401 3D.jpg
X
Solarix 2401 4401 3D.jpg

Description

The solar charge controllers Steca Solarix 2401 and 4401 are optimally suited for inverter systems. Inverters have to be connected directly to the battery. The Steca Solarix 2401 and 4401 combine basic solar charger functions with a 40 A high-performance charge controller. It is available as 12 V / 24 V and 48 V system. This makes the solar charge controller very cost effective.

The load current is limited to 10 A. The charging processes are based on the voltage level, which can be individually set with the help of four buttons behind the front casing.

Features

Product features

  • Shunt topology with MOSFETs
  • Automatic detection of voltage
  • Voltage regulation
  • PWM control
  • Multistage charging technology
  • Load disconnection depending on voltage
  • Automatic load reconnection
  • Temperature compensation
  • Negative earthing of one or positive earthing of several terminals possible
  • Integrated self test
  • Monthly equalisation charge

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of module, load and battery
  • Reverse polarity protection by internal fuse
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection
  • Battery overvoltage shutdown

Displays

  • Text LC display
  • for operating parameters, fault messages, self test

Operation

  • Simple menu-driven operation
  • Programming by buttons
  • Manual load switch

Interfaces

  • RJ45 interface

Options

  • External temperature sensor
  • Alarm contact

Certificates

  • Compliant with European Standards (CE)
  • Made in Germany
  • Developed in Germany
  • Manufactured according to ISO 9001 and ISO 14001

Downloads

Certificates

  •  Steca Solarix 24-44 certificate CE - Solarix 24-44 · pdf · 0.751 MB

Product data sheet

  •  Steca Solarix 24-44 productdatasheet DE · pdf · 0,295 MB
  •  Steca Solarix 24-44 productdatasheet EN · pdf · 0.361 MB
  •  Steca Solarix 24-44 productdatasheet FR · pdf · 0,345 MB
  •  Steca Solarix 24-44 productdatasheet IT · pdf · 0,358 MB

Manuals

  •  Steca Solarix 24-44 manual DE · pdf · 2.638 MB
  •  Steca Solarix 24-44 manual EN · pdf · 2.637 MB
  •  Steca Solarix 24-44 manual ES · pdf · 2.639 MB
