Steca SI

612, 624, 648, 812, 824, 1212, 1224, 1248, 1624, 2324, 2348, 3324, 3548

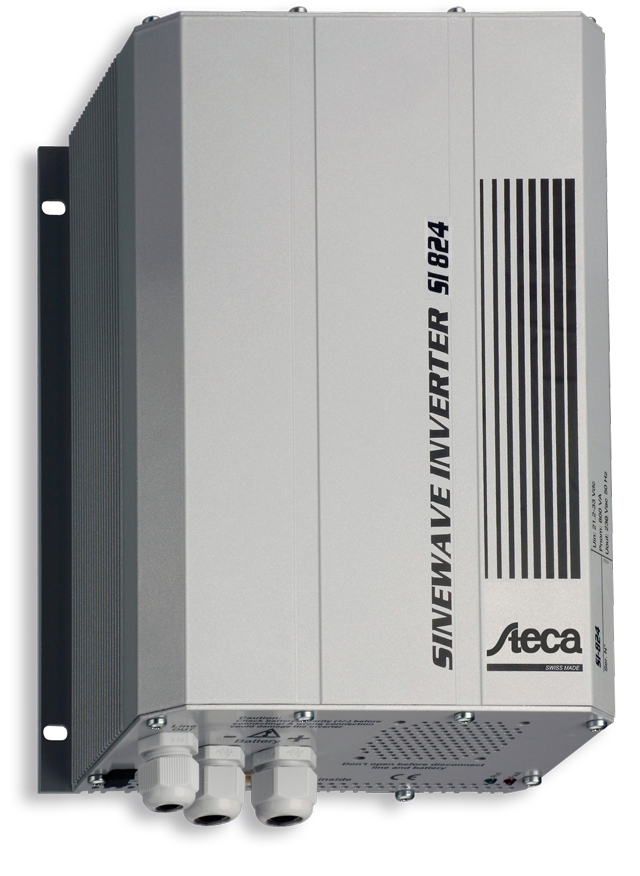

SI 824 3D.jpg
X
SI 824 3D.jpg

Description

Die Steca-SI-Geräteserie besteht aus „high-end“ Sinuswechselrichtern mit sehr hoher Überlastfähigkeit. Alle Typen bieten eine außergewöhnlich präzise Ausgangsspannung und -frequenz. Ihr automatischer Standby-Modus reduziert den Eigenverbrauch des Wechselrichters beträchtlich. Zusätzlich ist es optional möglich, mit 3 Geräten einen synchronisierten 3-Phasenbetrieb zu realisieren. Diese Möglichkeit besteht ab dem 1200 W Typ.

Features

Product features

  • True sine wave voltage
  • Excellent overload capabilities
  • Optimal battery protection
  • Automatic load detection
  • Parallel connectable
  • Best reliability

Electronic protection functions

  • Deep discharge protection
  • Battery overvoltage shutdown
  • Short circuit protection
  • Reverse polarity protection by internal fuse
  • Overtemperature and overload protection
  • Acoustic alarm at deep discharge or overheating

Displays

  • 2 LEDs show operating states
  • for operation and fault messages

Operation

  • Main switch
  • Adjustable load detection

Options

  • Types with 115 V / 50 Hz, 115 V / 60 Hz or 230 V / 60 Hz
  • 3-phase operation with the special PE model
  • Terminal for remote control (on / off)
  • Integrated potential-free contact (60 V / 0.5 A)
  • SI-IP 23 casing cover to raise the protection class

Certificates

  • Compliant with European Standards (CE)
  • RoHS compliant

Downloads

Product data sheet

  •  Steca SI productdatasheet DE · pdf · 0,240 MB
  •  Steca SI productdatasheet EN · pdf · 0.240 MB
  •  Steca SI productdatasheet FR · pdf · 0,241 MB

Manuals

  •  Steca SI manual DE, EN, FR · pdf · 2.512 MB
