Steca Pt1000 RAF

Pipe sensor

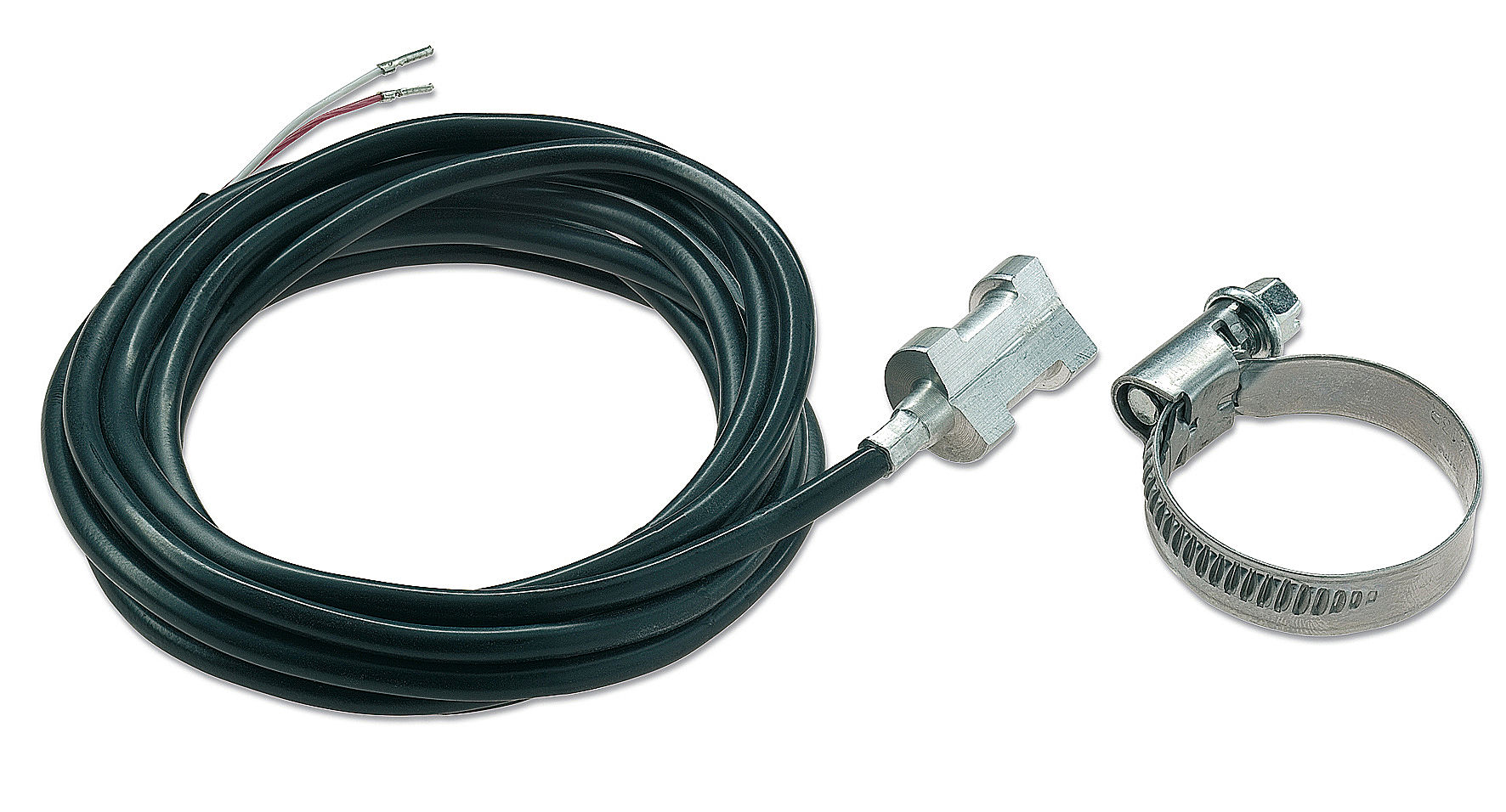

Steca Pt1000 RAF picture.jpg
X
Steca Pt1000 RAF picture.jpg

Description

The Steca Pt1000 RAF is a pipe sensor, with tensioning band and axial sensor pipe, for temperature recording in ducts and pipes (e.g. cold and warm water pipes), or in heating loops.
The standard measurement unit contains a Pt1000 temperature sensor, according to DIN EN 60 751 class B, in a two-core connection.

Features

Product features

  • For fastening to pipes, including pipe clamp

Downloads

Product data sheet

  •  Steca Pt1000 RAF productdatasheet DE · pdf · 0,181 MB
  •  Steca Pt1000 RAF productdatasheet EN · pdf · 0.180 MB
  •  Steca Pt1000 RAF productdatasheet FR · pdf · 0,181 MB

Product pics, technical drawings, etc.

  •  Steca Pt1000 RAF product pic · jpg, 300 DPI, high quality · 0.650 MB
  •  Steca Pt1000 RAF product pic · jpg, 72 DPI, web quality · 0.246 MB

Technical data

 Pt1000 RAF
General
Measuring range
-50 °C … +180 °C
Temperature sensors
Diameter
15 mm
Length silicon cable
3000 mm
Bushing length
20 mm
Bushing material
aluminium
