Steca Pt1000 MWT

Sheathed resistance thermometer

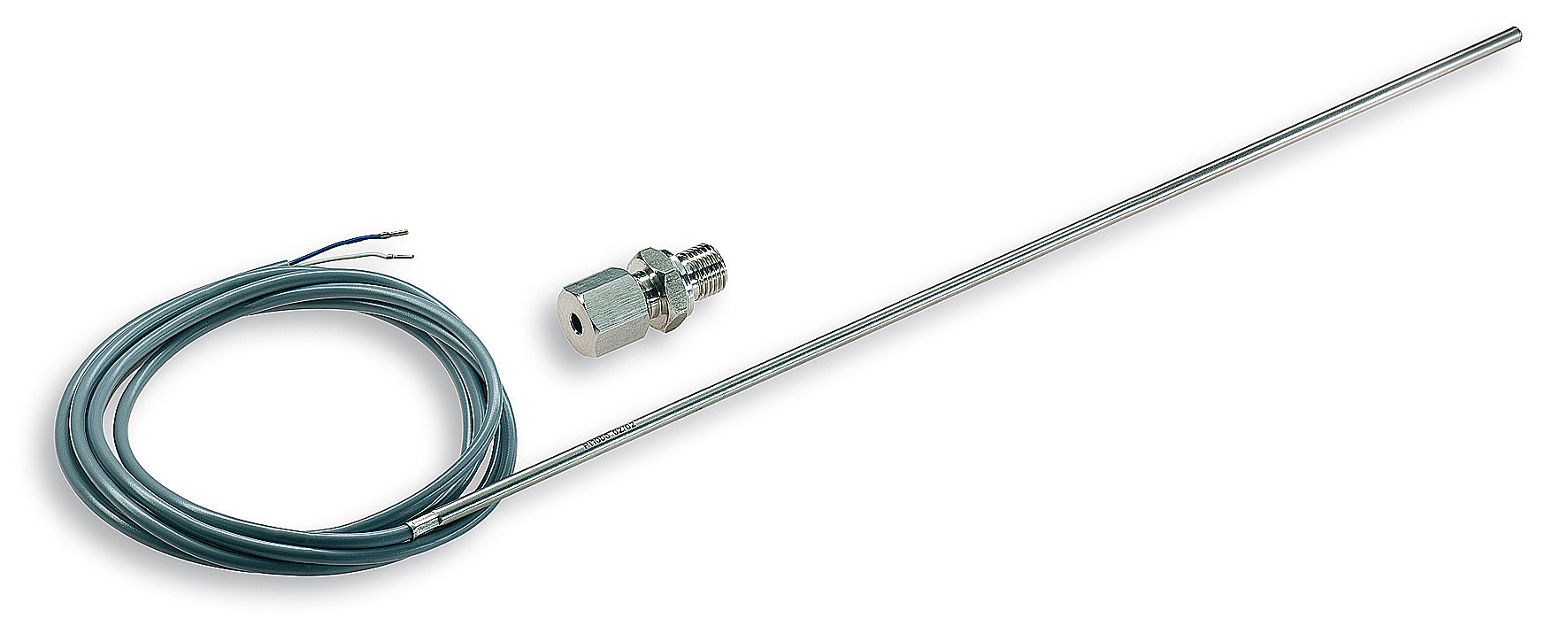

Steca Pt1000 MWT picture.jpg
X
Steca Pt1000 MWT picture.jpg

Description

The properties of the Steca Pt1000 MWT sheathed resistance thermometer make it suitable for use in all measurement locations where an application specific installation length, and trouble free exchange of the units, is desired.­ The good heat transfer between the protective pipe and the temperature sensor allow short response times and high measurement accuracy. The standard measurement unit contains a Pt1000 temperature sensor, according to DIN EN 60 751 class B, in a two-core connection.

Features

Product features

  • Adjustable immersion depth using a screwed clamping ring

Downloads

Product data sheet

  •  Steca Pt1000 MWT productdatasheet DE · pdf · 0,157 MB
  •  Steca Pt1000 MWT productdatasheet EN · pdf · 0.157 MB
  •  Steca Pt1000 MWT productdatasheet FR · pdf · 0,157 MB

Product pics, technical drawings, etc.

  •  Steca Pt1000 MWT product pic · jpg, 300 DPI, high quality · 0.294 MB
  •  Steca Pt1000 MWT product pic · jpg, 72 DPI, web quality · 0.116 MB

Technical data

 Pt1000 MWT
General
Measuring range
-10 °C … +105 °C
Temperature sensors
Diameter
4.5 mm
Length PVC-cable
2000 mm
Bushing length
350 mm
Bushing material
stainless steel
Screw connection
G 1/4"
Material of screw connection
stainless steel
Material of clamping ring
stainless steel
