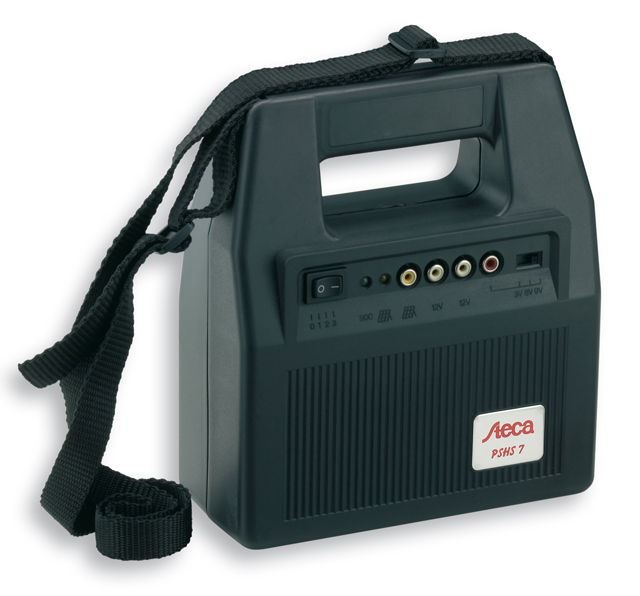

Steca PSHS 7

Portable solar energy system

PSHS 7 3D.jpg
X
PSHS 7 3D.jpg

Description

The Steca PSHS 7 is a compact, completely autonomous photovoltaic system. One solar module input, two 12 V outputs and an adjustable 3 / 6 / 9 V output are available for direct 'plug-and-play' connection. Thanks to the integrated Ah battery and the high-quality electronics, the photovoltaic system is ready for use at any time and easily transportable to any place. In addition, the Steca PSHS 7 can simply be mounted to the wall or carried using the shoulder strap. Two info LEDs give information on the battery's state of charge and the charge system status.

Features

Product features

  • Serial topology with MOSFETs
  • Voltage regulation
  • PWM control
  • Multistage charging technology
  • Current compensated load disconnection
  • Automatic load reconnection
  • Temperature compensation
  • Plug & play solution
  • Integrated charge controller and voltage converter
  • Integrated sealed AGM lead-acid battery
  • 2 12 V outputs and 1 adjustable 3 V / 6 V / 9 V output
  • Shoulder strap and special devices for wall mounting

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of module and battery
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Reverse current protection at night
  • Overtemperature and overload protection

Displays

  • Multi-coloured LED
  • 2 LEDs show operating states
  • for operation, state of charge, fault messages

Operation

  • Main switch
  • Voltage selector switch

Certificates

  • Compliant with European Standards (CE)
  • Made in Germany
  • Developed in Germany
  • Manufactured according to ISO 9001 and ISO 14001

Downloads

Product data sheet

  •  Steca PSHS 7 productdatasheet DE · pdf · 0,192 MB
  •  Steca PSHS 7 productdatasheet EN · pdf · 0.192 MB
  •  Steca PSHS 7 productdatasheet FR · pdf · 0,193 MB

Manuals

  •  Steca PSHS 7 manual DE · pdf · 0.862 MB
  •  Steca PSHS 7 manual EN · pdf · 0.874 MB
