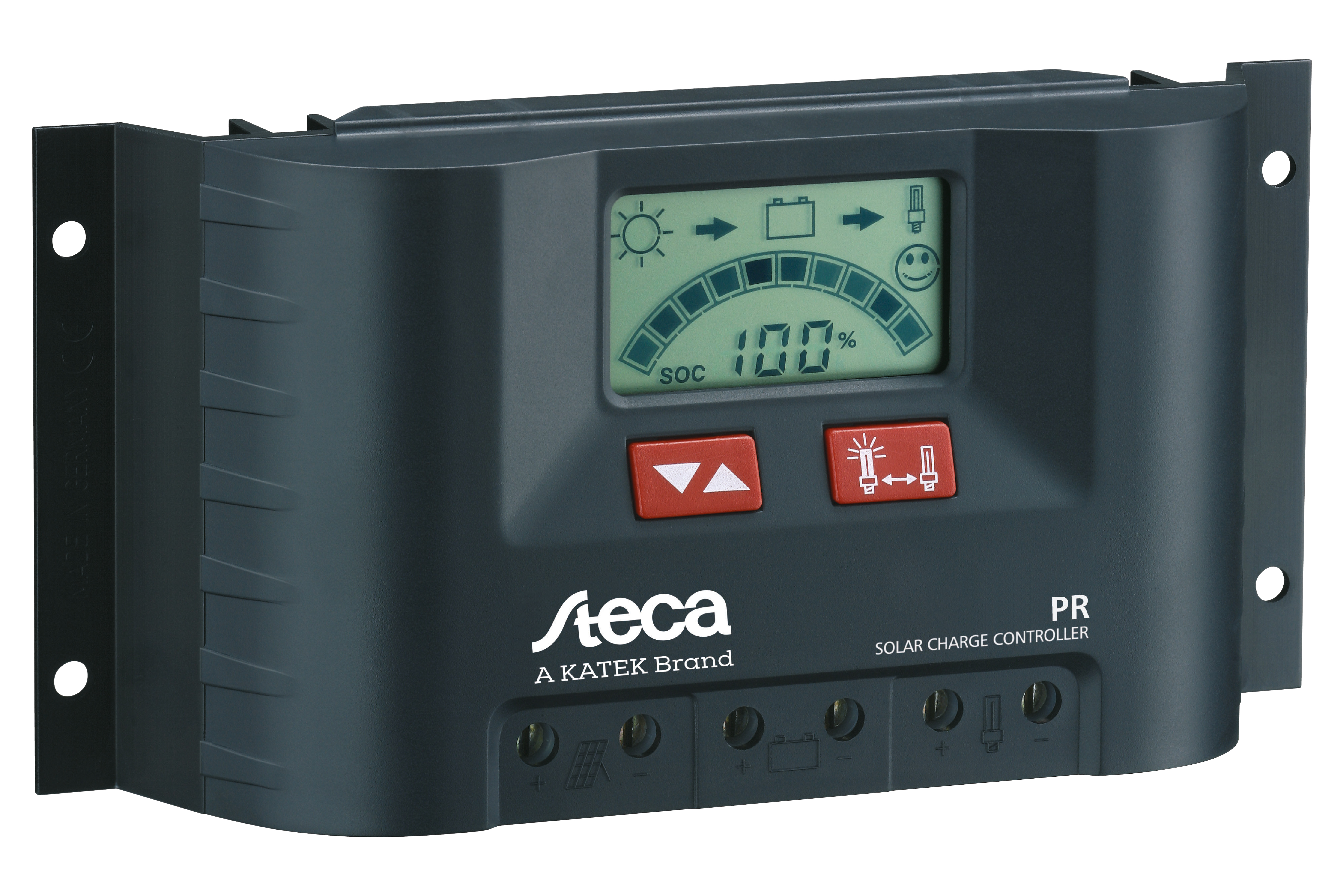

Steca PR

1010, 1515, 2020, 3030

  • High End State of Charge control (SOC)
  • Professional battery care
  • Full graphical display
  • Automatic battery voltage detection
  • Full load protection
Steca PR
Steca PR 3030 technische Zeichnung
X
Steca PR
Steca PR 3030 technische Zeichnung

Description

The Steca PR 10-30 series of charge controllers is the highlight in the range. Use of the latest charging technologies combined with state of charge determination enable optimal battery maintenance and module power monitoring. A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a level meter. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display. In addition, the controller has an energy meter which can be reset by the user.

Features

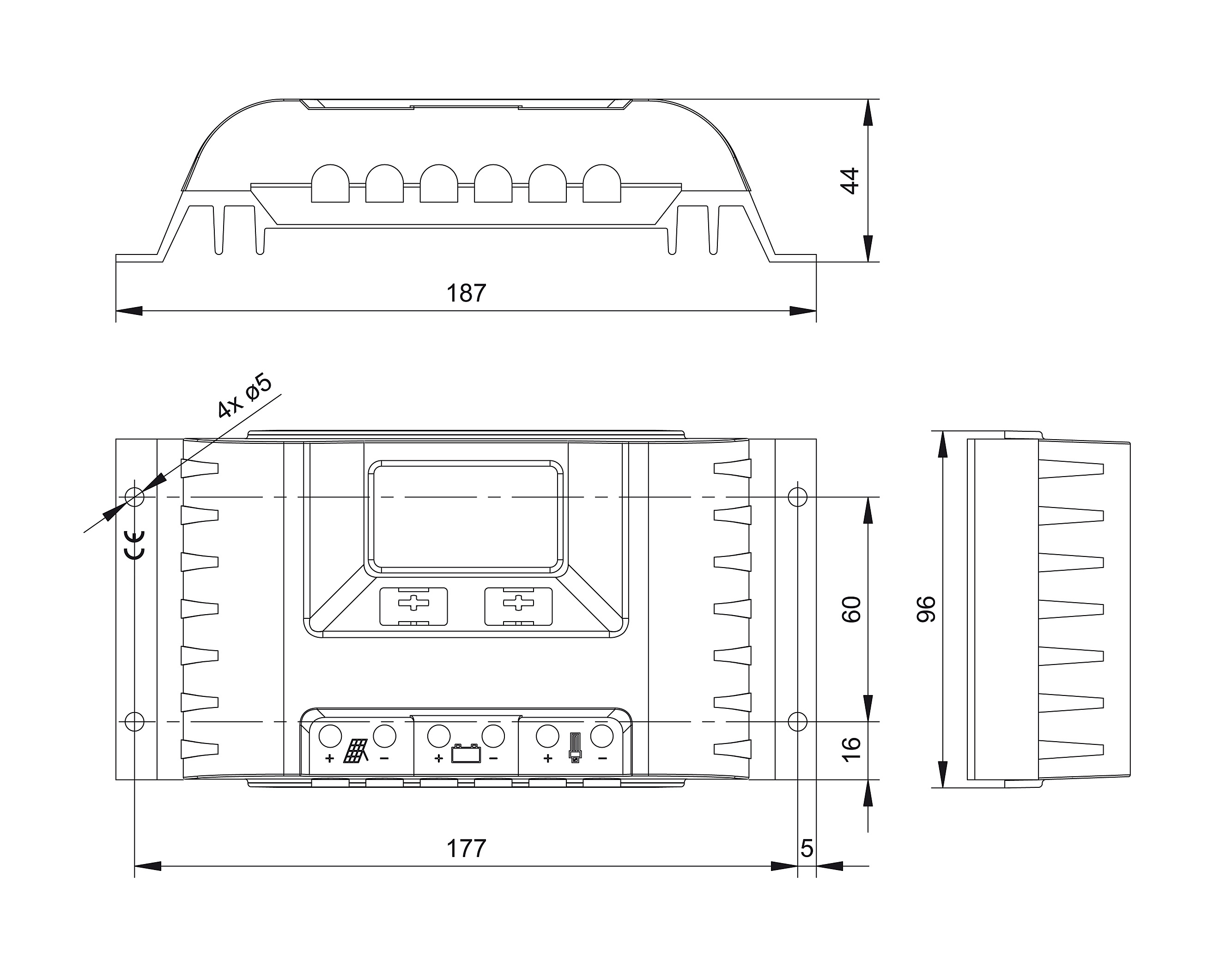

Technical drawing: Steca PR 1010, 1515, 2020, 3030

Product features

  • Shunt topology with MOSFETs
  • State of charge determination with Steca AtonIC (SOC)
  • Automatic detection of voltage
  • PWM control
  • Multistage charging technology
  • Load disconnection depending on SOC
  • Automatic load reconnection
  • Temperature compensation
  • Negative earthing of one or positive earthing of several terminals possible
  • Integrated data logger (energy meter)
  • Evening, night light and daylight functions
  • Integrated self test
  • Monthly equalisation charge

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of module, load and battery
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection
  • Load disconnection on battery overvoltage

Displays

  • Graphical LC display
  • for operating parameters, fault messages, self test

Operation

  • Simple menu-driven operation
  • Programming by buttons
  • Manual load switch

Options

  • Alarm contact

Certificates

  • Approved by the World Bank for Nepal
  • Compliant with European Standards (CE)
  • RoHS compliant
  • Made in EU
  • Manufactured according to ISO 9001 and ISO 14001

Accessories

  • External temperature sensor Steca PA TS10

Downloads

Certificates

  •  Steca PR certificate · pdf · 0.828 MB
  •  Steca PR certificate CE · pdf · 0.792 MB

Product data sheet

  •  Steca PR productdatasheet DE · pdf · 0,999 MB
  •  Steca PR productdatasheet EN · pdf · 0.999 MB
  •  Steca PR productdatasheet FR · pdf · 1,000 MB

Manuals

  •  Steca PR manual Menü Ladenspannungen · pdf · 0.070 MB
  •  Steca PR manual Menu charging voltage · pdf · 0.069 MB
  •  Steca PR manual DE · pdf · 1.116 MB
  •  Steca PR manual EN · pdf · 1.124 MB
  •  Steca PR manual ES · pdf · 1.124 MB
  •  Steca PR manual FR · pdf · 1.124 MB
  •  Steca PR manual IT · pdf · 1.114 MB
  •  Steca PR manual PT · pdf · 1.118 MB

Product pics, technical drawings, etc.

  •  Steca PR product pic drawing · jpg, 300 DPI, high quality · 0.430 MB
  •  Steca PR product pic drawing · jpg, 72 DPI, web quality · 0.236 MB

Technical data

 PR 1010PR 1515PR 2020PR 3030
Characterisation of the operating performance
System voltage
12 V (24 V)
Own consumption
12.5 mA
DC input side
Open circuit voltage solar module (at minimum operating temperature)
< 47 V
Module current
10 A
15 A
20 A
30 A
DC output side
Load current
10 A
15 A
20 A
30 A
Reconnection voltage (SOC / LVR)
> 50 % / 12.6 V (25.2 V)
Deep discharge protection < 30 % (SOC / LVD)
< 30 % / 11.1 V (22.2 V)
Battery side
End-of-charge voltage
13.9 V (27.8 V)
Boost charge voltage
14.4 V (28.8 V)
Equalisation charge
14.7 V (29.4 V)
Set battery type
liquid (adjustable via menu)
Operating conditions
Ambient temperature
-10 °C … +50 °C
Fitting and construction
Terminal (fine / single wire)
16 mm² / 25 mm² - AWG 6 / 4
Degree of protection
IP 31
Dimensions (X x Y x Z)
187 x 96 x 44 mm
Weight
350 g

  • Technical data at 25 °C / 77 °F
  • Inverters must not be connected to the load output.
