Steca PR Night

PR 0606N, PR 1010N

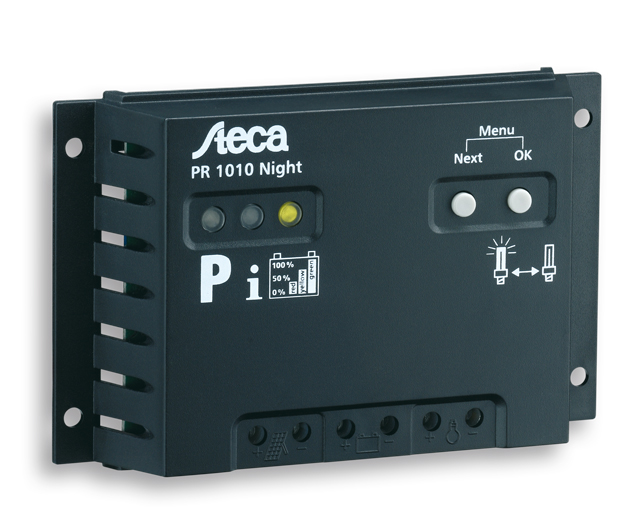

PR 1010 Night 3D.jpg
X
PR 1010 Night 3D.jpg

Description

The Steca PR Night is designed for operating automatic night light systems and is suitable for solar systems of up to 300 Wp module output.

This controller is thus especially suitable for streetlights, bus stops, advertising lighting and other similar applications. The charge controller determines the actual solar time via the solar module. This integrated clock can be used to define how long after sunset, or before sunrise, the light is to be switched on or off.

Features

Product features

  • Shunt topology with MOSFETs
  • MicroSD slot for data logging of all minute values
  • State of charge determination with Steca AtonIC (SOC)
  • Automatic detection of voltage
  • PWM control
  • Multistage charging technology
  • Load disconnection depending on SOC
  • Automatic load reconnection
  • Temperature compensation
  • Negative earthing of one or positive earthing of several terminals possible
  • MicroSD slot for data logging of all minute values
  • Integrated self test
  • Monthly equalisation charge

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of module, load and battery
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection
  • Battery overvoltage shutdown

Displays

  • Multi-coloured LED
  • 3 multi-coloured LEDs show operating states
  • for operation, state of charge, fault messages

Operation

  • Programming by buttons
  • Manual load switch

Certificates

  • Approved by the World Bank for Laos
  • Compliant with European Standards (CE)
  • RoHS compliant
  • Made in Germany
  • Developed in Germany
  • Manufactured according to ISO 9001 and ISO 14001

Downloads

Product data sheet

  •  Steca PR Night productdatasheet DE · pdf · 0,185 MB
  •  Steca PR Night productdatasheet EN · pdf · 0.185 MB
  •  Steca PR Night productdatasheet FR · pdf · 0,187 MB

Manuals

  •  Steca PR Night manual DE · pdf · 0.666 MB
  •  Steca PR Night manual EN · pdf · 0.559 MB
  •  Steca PR Night manual ES · pdf · 0.115 MB
  •  Steca PR Night manual FR · pdf · 0.571 MB
