Steca PR 03-05

PR 0303, PR 0505

  • Easy to use charge controller
  • LED display
  • Automatic battery voltage detection
  • Full load protection
  • Low self consumption

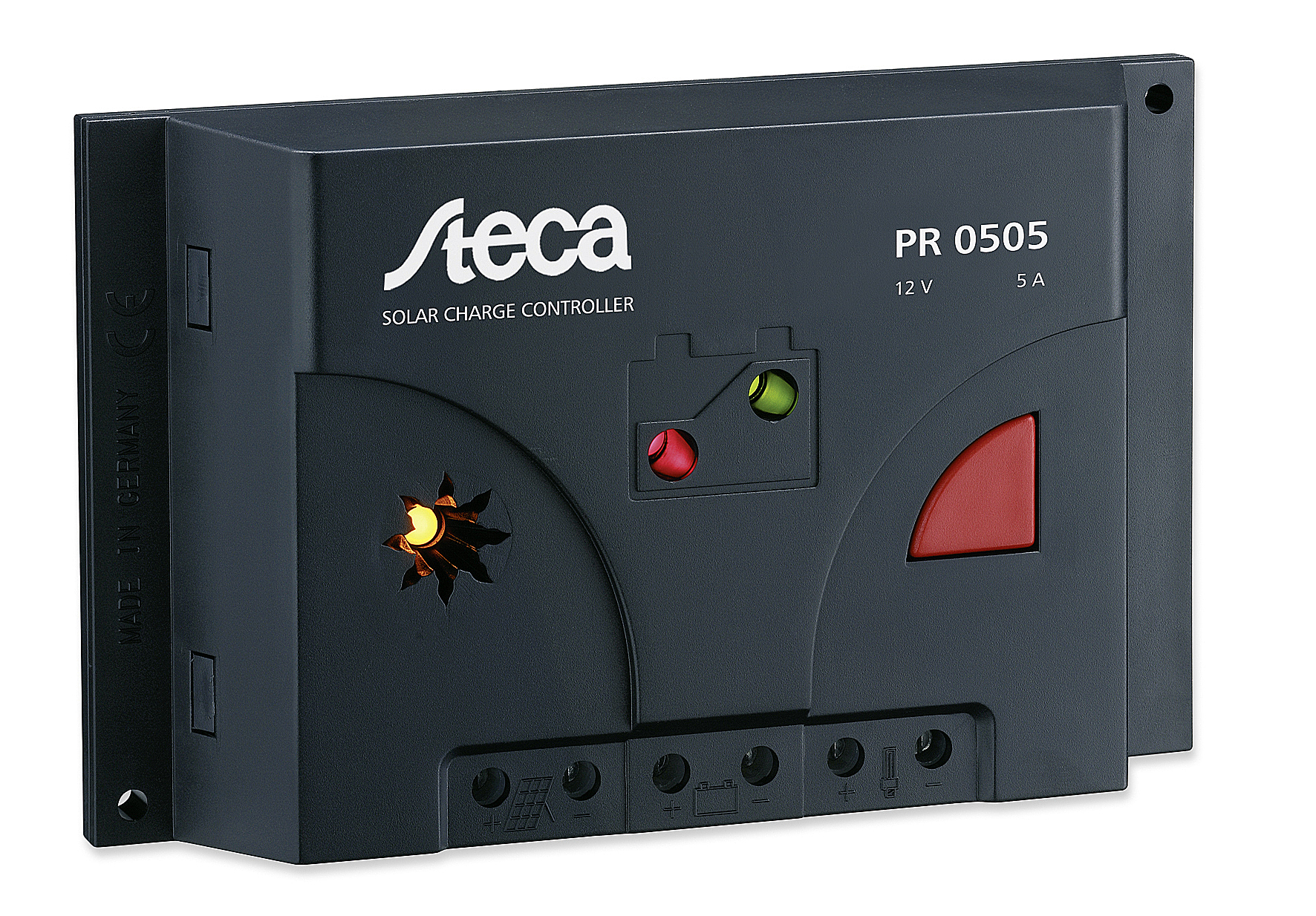

Steca PR 0303 0505 picture 3D.jpg
Steca PR 0303 0505 picture.jpg
Steca PR 0303 0505 Produktbild Homepage.jpg
X
Steca PR 0303 0505 picture 3D
Steca PR 0303 0505 picture
Steca PR 0303 0505 Produktbild Homepage.jpg

Description

The Steca PR 0303 and PR 0505 solar charge controllers are optimally suited for use in small solar home systems.
Lights, radios or small television sets, for instance, can be operated
without issue. All loads can be switched off using the manual load switch on the controller. The extremely low own consumption makes the Steca PR especially suitable for professional applications in telecommunications and traffic management technology. Since this is a serial controller, it is extremely flexible in the type of power source that can be connected. The electronic fuse makes the controller completely maintenance-free and robust.

Features

Technical drawing: Steca PR 03-05 PR 0303, PR 0505

Product features

  • Serial topology with MOSFETs
  • Voltage regulation
  • PWM control
  • Multistage charging technology
  • Current compensated load disconnection
  • Automatic load reconnection
  • Temperature compensation
  • Negative earthing of one or positive earthing of several terminals possible

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of module, load and battery
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection
  • Load disconnection on battery overvoltage

Displays

  • Multi-coloured LED
  • 3 multi-coloured LEDs show operating states
  • for operation, state of charge, fault messages

Operation

  • Manual load switch

Certificates

  • Compliant with European Standards (CE)
  • RoHS compliant
  • Made in Germany
  • Developed in Germany
  • Manufactured according to ISO 9001 and ISO 14001

Downloads

Certificates

  •  Steca PR 03-05 certificate CE · pdf · 0.828 MB

Product data sheet

  •  Steca PR 03-05 productdatasheet DE · pdf · 0,634 MB
  •  Steca PR 03-05 productdatasheet EN · pdf · 0.574 MB
  •  Steca PR 03-05 productdatasheet FR · pdf · 0,584 MB

Manuals

  •  Steca PR 03-05 manual EN · pdf · 0.505 MB

Product pics, technical drawings, etc.

  •  Steca PR 03-05 product pic 3D · jpg, 300 DPI, high quality · 1.829 MB
  •  Steca PR 03-05 product pic 3D · jpg, 72 DPI, web quality · 0.582 MB
  •  Steca PR 03-05 product pic · jpg, 300 DPI, high quality · 1.811 MB
  •  Steca PR 03-05 product pic · jpg, 72 DPI, web quality · 0.561 MB
  •  Steca PR 03-05 product pic drawing · jpg, 300 DPI, high quality · 0.265 MB
  •  Steca PR 03-05 product pic drawing · jpg, 72 DPI, web quality · 0.138 MB

Technical data

 PR 0303PR 0505
Characterisation of the operating performance
System voltage
12 V
Own consumption
3 mA
DC input side
Open circuit voltage solar module (at minimum operating temperature)
< 47 V
Module current
3 A
5 A
DC output side
Load current
3 A
5 A
Reconnection voltage (LVR)
12.5 V
Deep discharge protection (LVD)
11 V … 11.5 V
Battery side
End-of-charge voltage
13.7 V
Boost charge voltage
14.4 V
Set battery type
gel
Operating conditions
Ambient temperature
-25 °C … +50 °C
Fitting and construction
Terminal (fine / single wire)
6 mm² / 10 mm² - AWG 10 / 8
Degree of protection
IP 32
Dimensions (X x Y x Z)
146 x 90 x 33 mm
Weight
160 g

  • Inverters must not be connected to the load output.
