Steca PLI

300, 300-L60

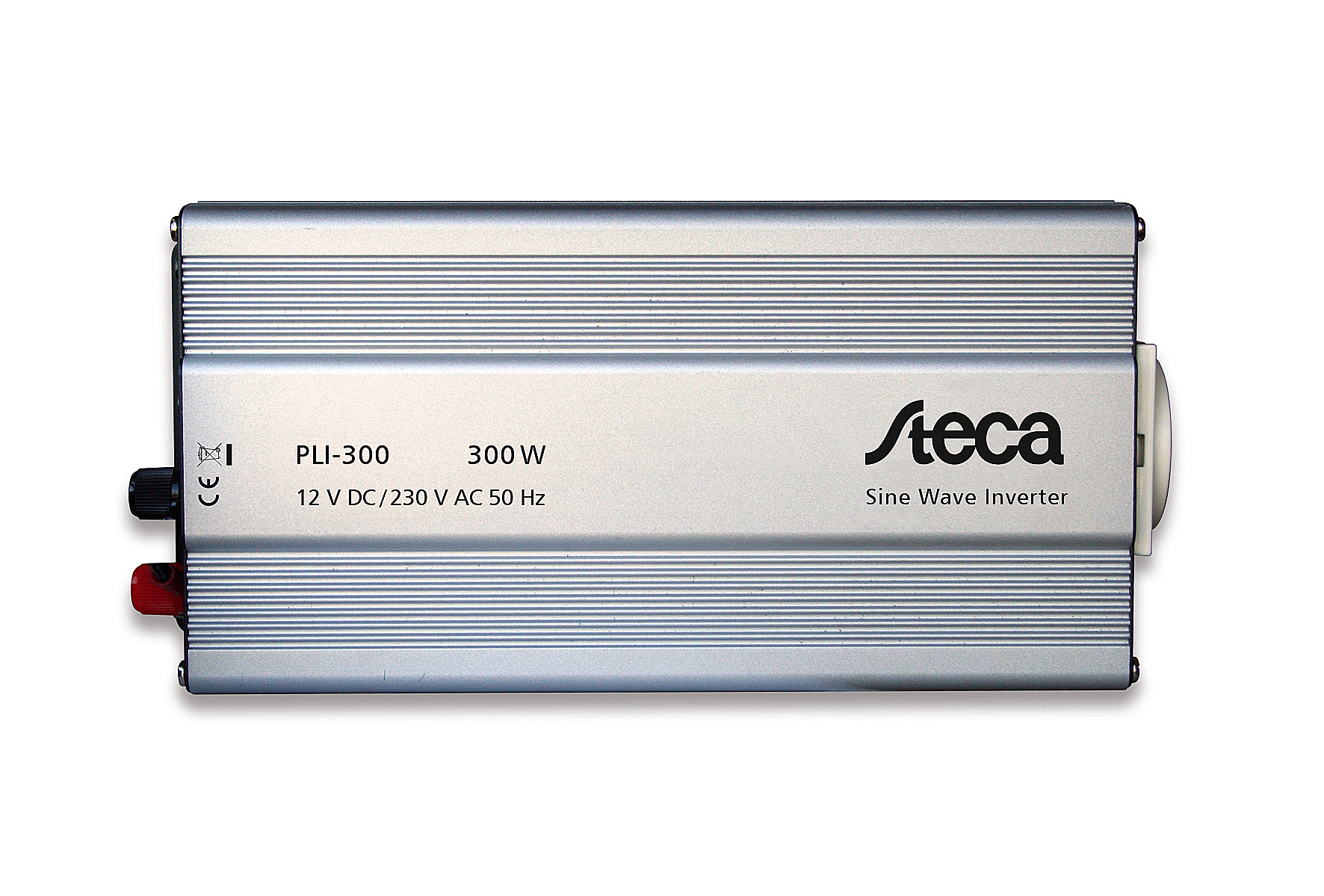

Steca PLI300 picture.jpg
X
Steca PLI300 picture.jpg

Description

The Steca PLI-300 is a low-cost 300 W sine wave inverter for supplying small AC appliances. It has a manual on/off switch allowing the inverter to be switched off to reduce own consumption. The device is especially suitable for use in solar home systems where manually switched small AC appliances are occasionally used in addition to the normal DC appliances. The device is supplied with DC cables and has a european AC power socket.

Features

Product features

  • True sine wave voltage
  • Optimal battery protection
  • Protective insulation according to protection class II

Electronic protection functions

  • Deep discharge protection
  • Battery overvoltage shutdown
  • Short circuit protection on the AC output side
  • Overtemperature and overload protection

Displays

  • 2 LEDs show operating states

Operation

  • Main switch

Certificates

  • Compliant with European Standards (CE)

Downloads

Product data sheet

  •  Steca PLI productdatasheet DE · pdf · 0,197 MB
  •  Steca PLI productdatasheet EN · pdf · 0.197 MB
  •  Steca PLI productdatasheet FR · pdf · 0,197 MB

Product pics, technical drawings, etc.

  •  Steca PLI product pic · jpg, 300 DPI, high quality · 1.328 MB
  •  Steca PLI product pic · jpg, 72 DPI, web quality · 0.430 MB

Technical data

 300300-L60
Characterisation of the operating performance
System voltage
12 V
Continuous power
300 VA
Power 30 min.
300 VA
Power 5 sec.
350 VA
Power asymmetric
250 VA
Max. efficiency
85 %
Own consumption standby
0.5 W
Own consumption ON
9.0 W
DC input side
Battery voltage
10.5 V … 15 V
Reconnection voltage (LVR)
12.5 V
Deep discharge protection (LVD)
10.5 V
AC output side
Output voltage
230 V AC ±10 %
115 V AC ±10 %
Output frequency
50 Hz
60 Hz
Safety
Protection class
II (double insulated)
Electrical protection
no reverse polarity protection for the battery, reverse polarity AC, over voltage, over current, over temperature
Operating conditions
Ambient temperature
-20 °C … +50 °C
Fitting and construction
AC output side connection
European plug
Cable cross-section battery
4 mm² (AWG 12)
Degree of protection
IP 20
Dimensions (X x Y x Z)
245 x 117 x 62 mm
Weight
1,2 kg
