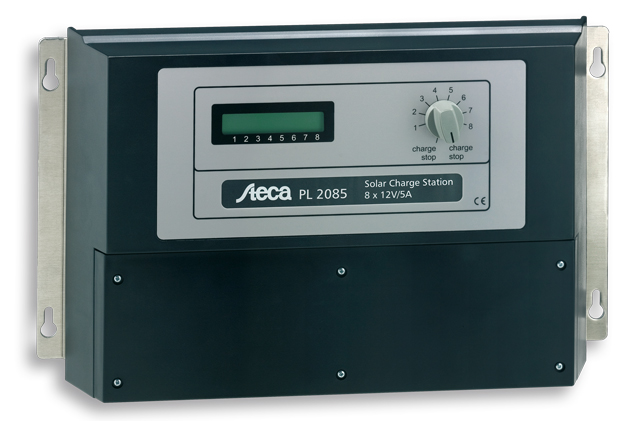

Steca PL 2085

Solar charging point

PL 2085 S.jpg
X
PL 2085 S.jpg

Description

The Steca PL 2085 solar charging point is a highly intelligent maximum power point tracker which is able to charge eight batteries with different states of charge at the same time.

On the input side, the Steca PL 2085 is fed by a 24 V module array of up to 800 Wp. Every charge channel operates fully independently; it is also possible to connect different batteries with various states of charge. The battery which is connected first is also the first to be charged. The display can show the system data for each individual battery. There is a maximum of 5 A available per charging channel, and a maximum of four channels can be connected in parallel at once, so that two batteries with 20 A each can also be charged. Thanks to the reverse polarity protection, electronic fuse and automatic detection of a faulty battery, the device is maintenance-free and user-friendly.

Features

Product features

  • Maximum Power Point Tracker (MPP tracker)
  • Temperature compensation
  • Special maintenance charge
  • Integrated energy meter for every channel
  • Charger for 8 batteries
  • Up to 4 channels can be connected in parallel

Electronic protection functions

  • Overcharge protection
  • Reverse polarity protection
  • Automatic electronic fuse
  • Short circuit protection
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection

Displays

  • Text LC display
  • for voltage, current, charged capacity, state of charge
  • for operating parameters, fault messages, self test
  • Every single battery station

Operation

  • Battery selection and charge stop via rotary switch

Certificates

  • Compliant with European Standards (CE)
  • Made in Germany
  • Developed in Germany
  • Manufactured according to ISO 9001 and ISO 14001

Downloads

Certificates

  •  Steca PL 2085 certificate CE - PL 2085 · pdf · 0.069 MB

Product data sheet

  •  Steca PL 2085 productdatasheet DE · pdf · 0,178 MB
  •  Steca PL 2085 productdatasheet EN · pdf · 0.178 MB
  •  Steca PL 2085 productdatasheet FR · pdf · 0,179 MB
  •  Steca PL 2085 productdatasheet IT · pdf · 0,178 MB

Manuals

  •  Steca PL 2085 manual DE · pdf · 1.318 MB
  •  Steca PL 2085 manual EN · pdf · 1.315 MB
  •  Steca PL 2085 manual FR · pdf · 1.325 MB
  •  Steca PL 2085 manual PT · pdf · 0.227 MB
