Steca PA Tarcom

Data logger, accessories for Steca Power Tarom

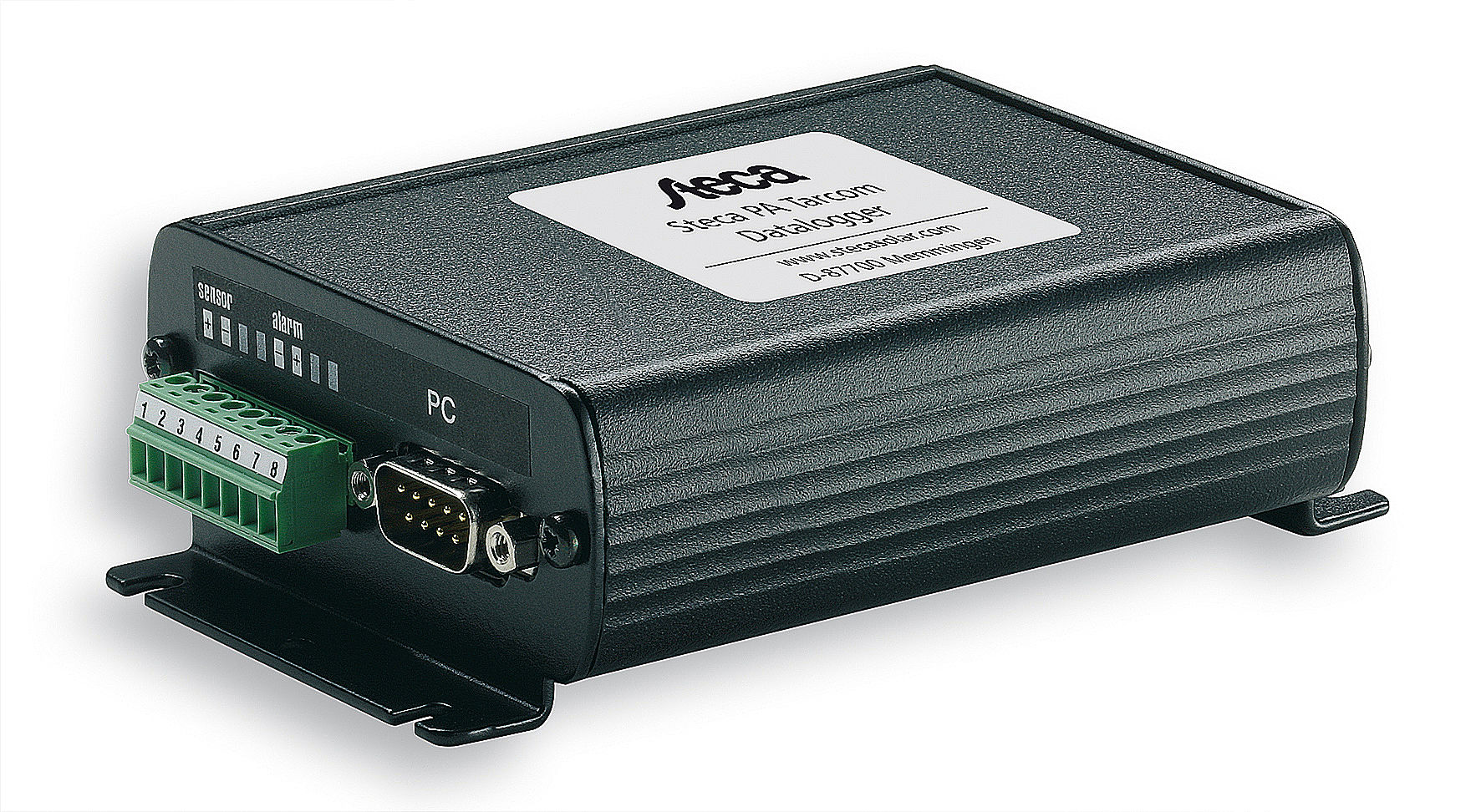

Steca PA Tarcom picture 3D.jpg
Steca PA Tarcom Produktbild Homepage.jpg
X
Steca PA Tarcom picture 3D.jpg
Steca PA Tarcom Produktbild Homepage.jpg

Description

The Steca PA Tarcom data logger is connected to the RJ45 interface of the Steca Power Tarom charge controller, or via the Steca PA HS200.
The data logger is available in several different versions: as a simple RS232 interface to directly save and read data on the PC or Laptop (Steca PA Tarcom 01), as a data logger with an integrated analogue modem (Steca PA Tarcom RMT), as a data logger with an integrated GSM modem for remote monitoring (Steca PA Tarcom GSM) and as a data logger with an Ethernet interface for connection to a PC network (Steca PA Tarcom Ethernet). The Steca PA Tarcom is delivered with its accompanying software.

Features

Product features

  • 4 years maximum storage capacity (1 Mbit)
  • Adjustable logging intervals
  • Stores 8 data sets at programmed intervals
  • Freely programmable alarm states

Displays

  • LED shows operating states

Interfaces

  • RJ45 communication interface to Steca Power Tarom
  • Open Steca RS-232 interface
  • Analogue sensor input e.g. for radiation or wind speed
  • Alarm contact

Tarcom software

  • Data transfer by modem or by text message
  • Downloads data from the logger to a PC
  • List of data sets can be exported to MS-EXCEL
  • Graphic visualisation of data sets (values/time)
  • Analyzes energy flows (Ah) within a PV hybrid system
  • Activation and selection of alarm types
  • Setting the interval for calls and for sending text messages
  • Configures the telephone number and text message recipient
  • Tells the data logger at what time it has to call
  • Alarms can be set by text message

Certificates

  • Compliant with European Standards (CE)
  • Made in Germany
  • Developed in Germany

Downloads

Certificates

  •  Steca PA Tarcom certificate CE - PA Tarcom · pdf · 0.865 MB

Product data sheet

  •  Steca PA Tarcom productdatasheet EN · pdf · 0.317 MB

Manuals

  •  Steca PA Tarcom manual DE · pdf · 1.113 MB
  •  Steca PA Tarcom manual EN · pdf · 1.128 MB

Product pics, technical drawings, etc.

  •  Steca PA Tarcom product pic 3D · jpg, 300 DPI, high quality · 1.271 MB
  •  Steca PA Tarcom product pic 3D · jpg, 72 DPI, web quality · 0.455 MB

Software

  •  Steca PA Tarcom software · zip · 0.792 MB

Technical data

 01RMTGSMEthernet
Characterisation of the operating performance
System voltage
12 / 24 / 48 V
Logger capacitiy
1 Mbit = 2 min. (11 days); 4 h (4 days)
Own consumption
< 10 mA
< 10 mA
< 10 mA
30 mA
Recorded values
relative time, total charge current, battery current, solar module current, load current, SOC, battery voltage, system status, analog sensor
System status information
night, overload, load disconnect, overvoltage, low voltage, over temperature, no module
DC output side
Battery voltage
8 V … 65 V
Safety
Alarm output
for all recorded parameters programmable
Fitting and construction
Interfaces
RS-232
analog modem
gsm modem
ethernet
Configurable analog auxiliary input
0 mV … 150 mV
Dimensions (X x Y x Z)
129 x 82 x 38 mm
Weight
150 g
