Steca PA Link1

Parallel switch box, accessories for Steca Solarix PI

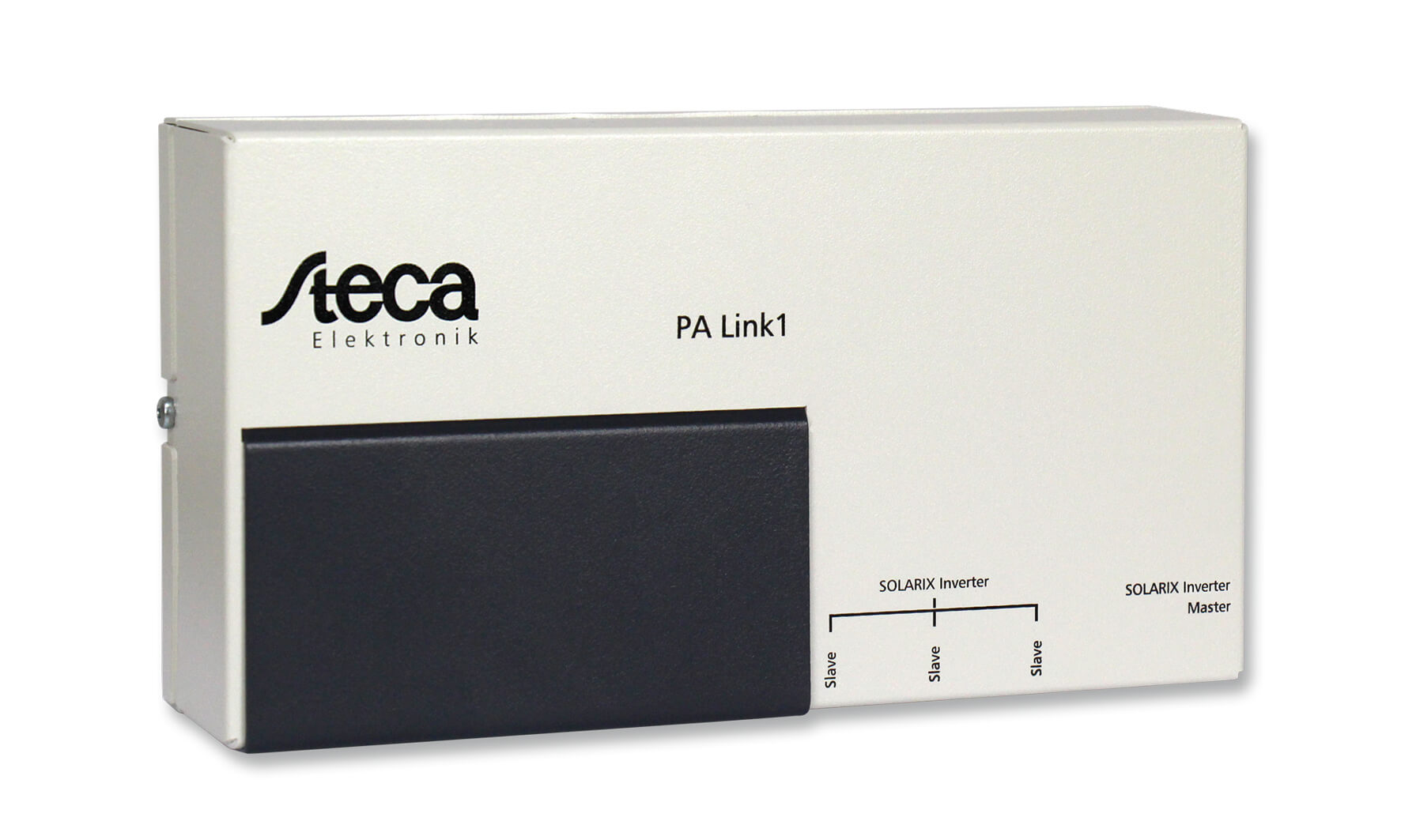

Steca PA Link1 picture 3D neu.jpg

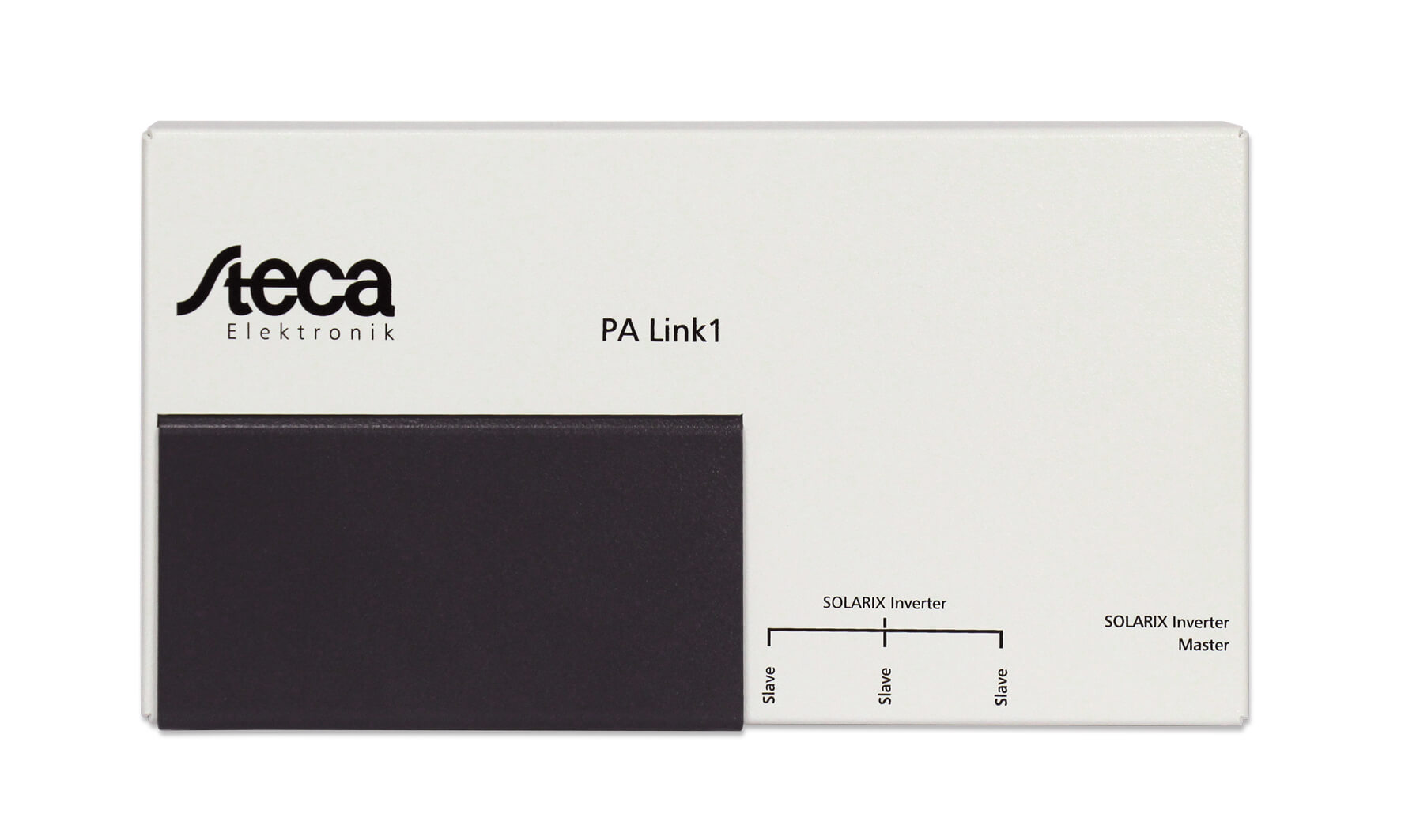

Steca PA Link1 picture neu.jpg

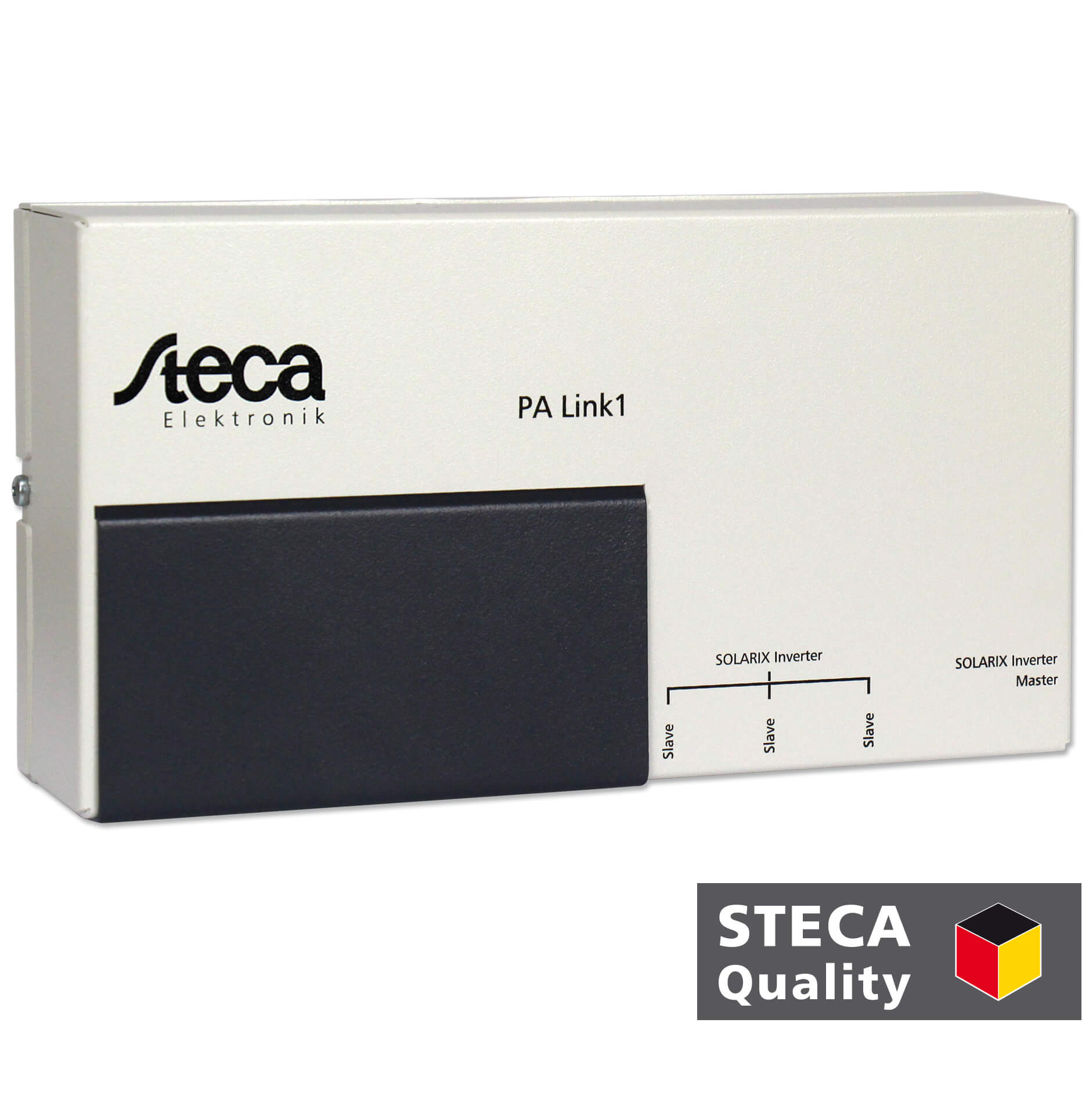

Steca PA Link1 Produktbild Homepage.jpg
X
Steca PA Link1 picture 3D neu.jpg
Steca PA Link1 picture neu.jpg
Steca PA Link1 Produktbild Homepage.jpg

Description

Up to four Steca Solarix PI can be operated in parallel. The connections are made via an external box, the Steca PA Link1.
A further innovation that has gone into the Steca Solarix PI is the communication with the solar charge controllers Steca Tarom 4545/4545-48 and Tarom MPPT 6000-M. A data connection to the charge controller can be created via the Steca PA Link1 (Software update required).

Downloads

Certificates

  •  Steca PA Link1 certificate CE · pdf · 0.684 MB

Product data sheet

  •  Steca PA Link1 productdatasheet EN · pdf · 0.184 MB

Manuals

  •  Steca PA Link1 manual DE · pdf · 1.254 MB
  •  Steca PA Link1 manual EN · pdf · 1.127 MB
  •  Steca PA Link1 manual ES · pdf · 1.128 MB
  •  Steca PA Link1 manual FR · pdf · 1.136 MB
  •  Steca PA Link1 manual IT · pdf · 1.134 MB

Product pics, technical drawings, etc.

  •  Steca PA Link1 product pic 3D · jpg, 300 DPI, high quality · 0.120 MB
  •  Steca PA Link1 product pic 3D · jpg, 72 DPI, web quality · 0.120 MB
  •  Steca PA Link1 product pic · jpg, 300 DPI, high quality · 0.079 MB
  •  Steca PA Link1 product pic · jpg, 72 DPI, web quality · 0.079 MB

Technical data

 PA Link1
Operating conditions
Ambient temperature
-20 °C … +50 °C
Relative humidity
0 % … 95 %
Fitting and construction
Cable
1 x data cable master, 3 x data cable slave
Interfaces
4 x inverter (RJ45)
Dimensions (X x Y x Z)
200 x 110 x 54 mm
Weight
830 g
