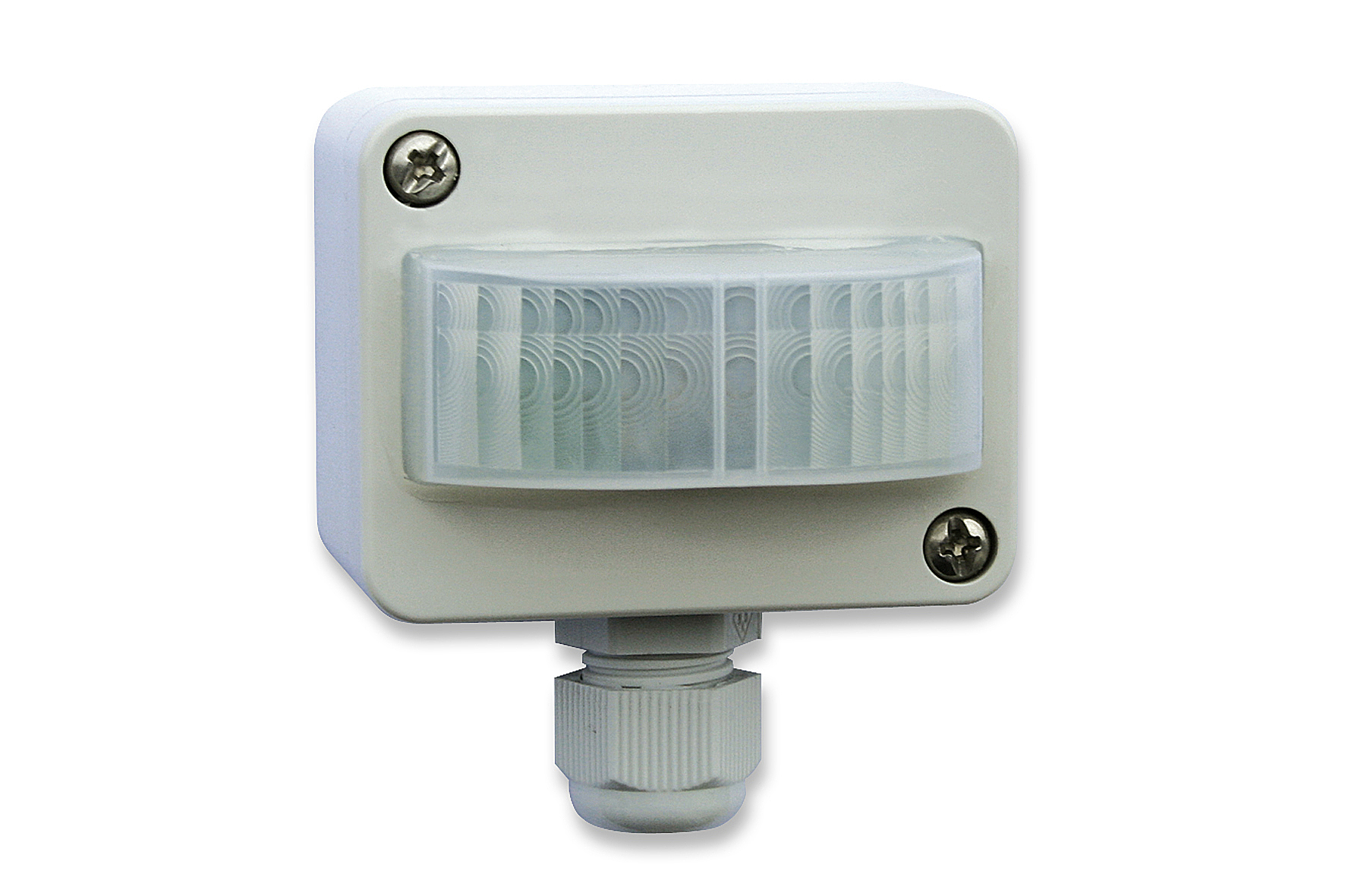

Steca PA IRS 1008/180

Motion detector

Steca PA IRS 1008 180 picture 3D.jpg
X
Steca PA IRS 1008 180 picture 3D.jpg

Description

The Steca PA IRS 1008/180 motion detector is connected to the load output of the night light charge controller. This supplies power to the light, which is then turned on for a few minutes when some movement is detected.

The Steca PA IRS 1008/180 stands out, above all, with its extremely low own consumption, and is therefore optimal for use in solar power systems.

Downloads

Certificates

  •  Steca PA IRS 1008/180 certificate CA - PA IRS 1008/180 · pdf · 0.444 MB

Product data sheet

  •  Steca PA IRS 1008/180 productdatasheet DE · pdf · 0,162 MB
  •  Steca PA IRS 1008/180 productdatasheet EN · pdf · 0.162 MB
  •  Steca PA IRS 1008/180 productdatasheet FR · pdf · 0,162 MB

Product pics, technical drawings, etc.

  •  Steca PA IRS 1008/180 product pic 3D · jpg, 300 DPI, high quality · 0.771 MB
  •  Steca PA IRS 1008/180 product pic 3D · jpg, 72 DPI, web quality · 0.200 MB

Technical data

 PA IRS 1008/180PA IRS 1008/180-24
Characterisation of the operating performance
Own consumption
6 mA
2 mA
Turn on time
1 min. … 5 min.
DC output side
Battery voltage
12 V
24 V
Load current
5 A
Fitting and construction
Reach / detection area
7 m / 180°
Degree of protection
IP 65

  • Inverters must not be connected to the load output.
