Steca PA HS 400

Current sensor, accessories for Steca Tarom MPPT 6000-M and Steca Tarom

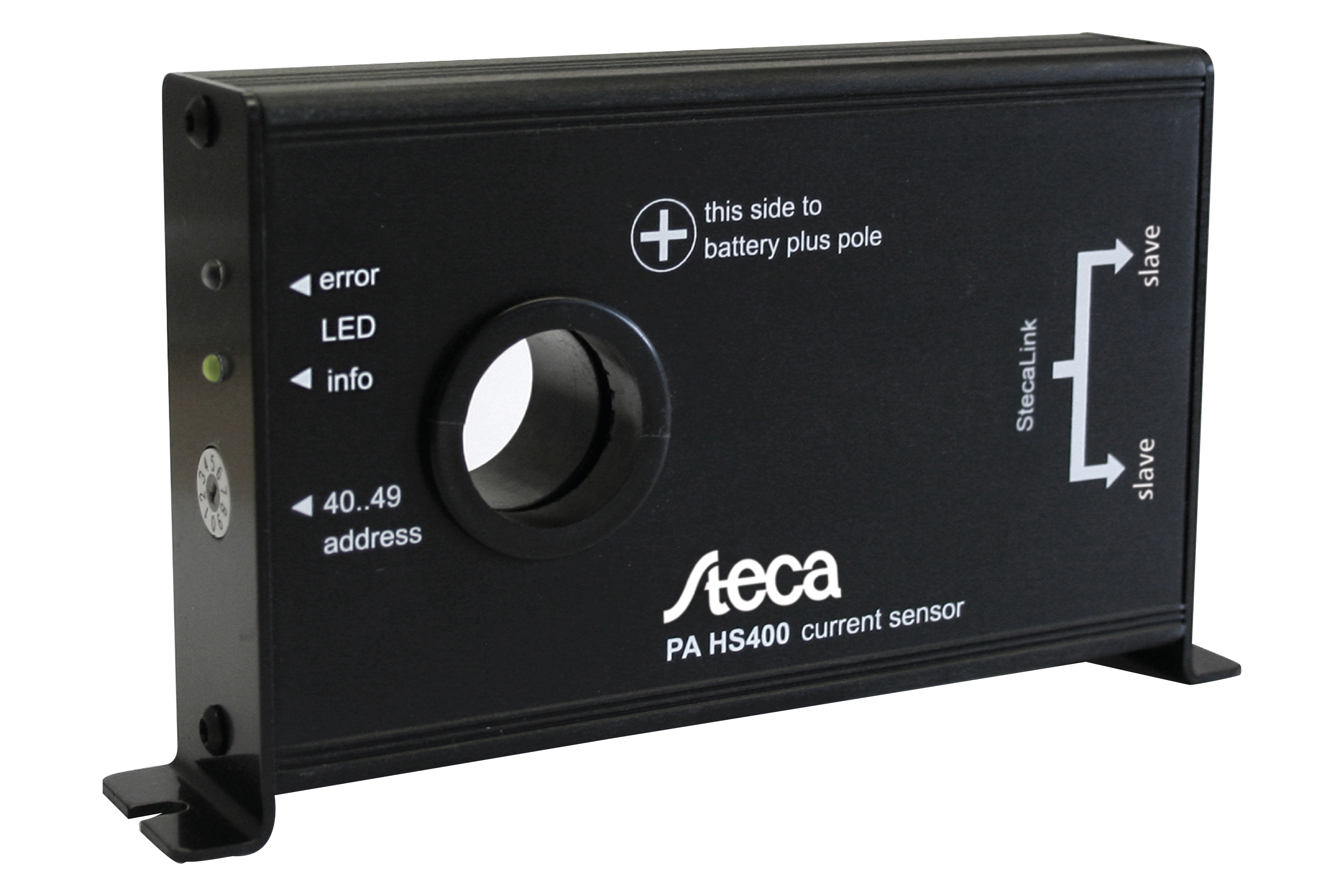

Steca PA HS400 picture.jpg
Steca PA HS400 picture 3D.jpg
Steca PA HS200 400 Produktbild Homepage.jpg
X
Steca PA HS400 picture.jpg
Steca PA HS400 picture 3D.jpg
Steca PA HS200 400 Produktbild Homepage.jpg

Description

The Steca PA HS 400 is a highly intelligent current sensor with extremely low own consumption.
The Steca PA HS400 comes into play when (e.g.) an inverter is directly connected to the battery and the charge controller cannot measure the current consumption. A shunt is also required when an additional generator (e.g. PV, wind or diesel) directly charges the battery. The current is measured contact-free via a Hall-effect sensor. The data is transmitted to the charge controller over a cable connection. All types of current flows can be detected: charge current, load current and battery and DC-side inverter current flows.
The Steca PA HS200 has been developed for applications with the Steca Power Tarom. The PA HS400 can be used exclusively with Steca Tarom MPPT 6000-M and Steca Tarom 4545/4545-48.

Features

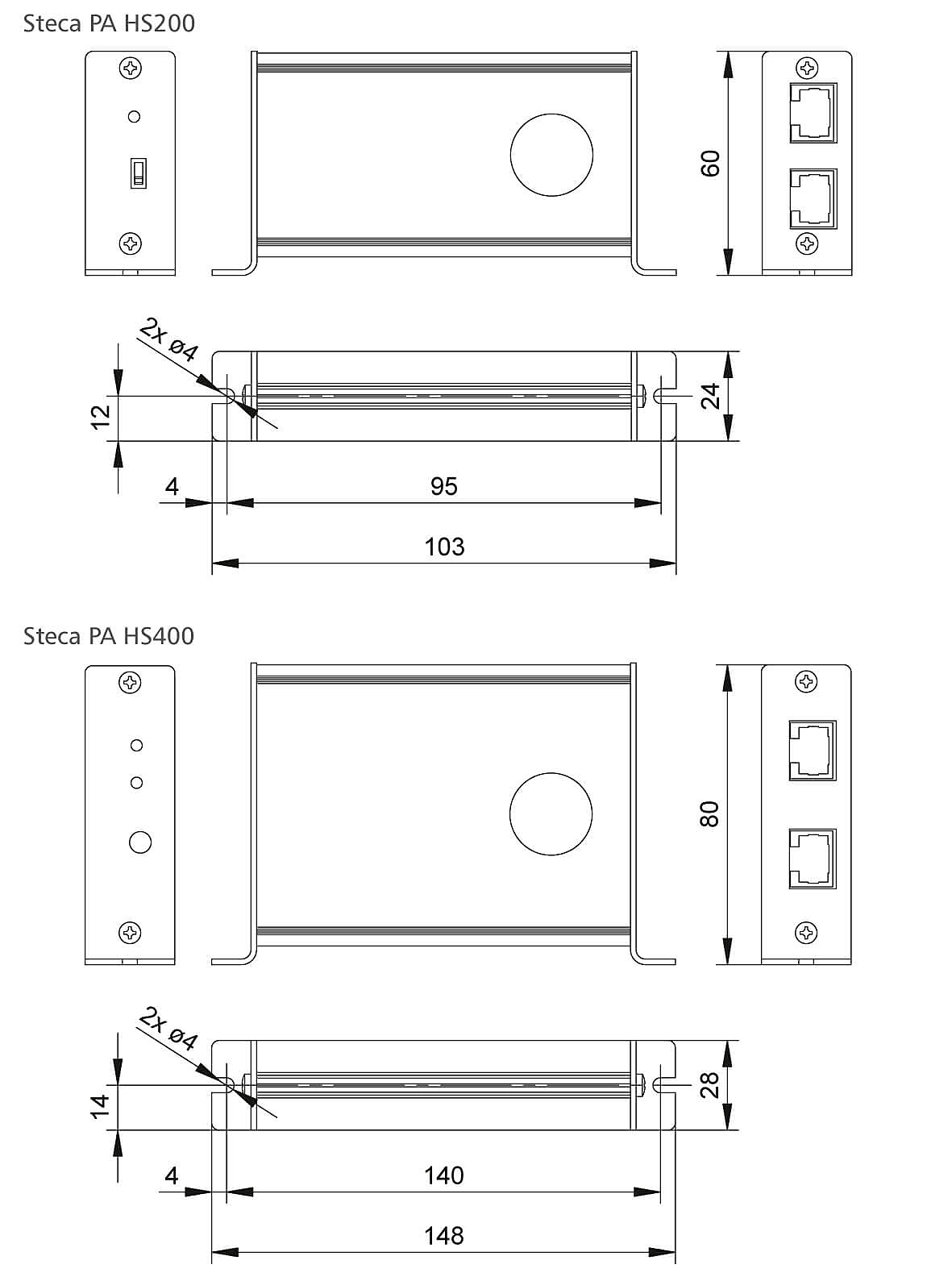

Technical drawing: Steca PA HS 400 Current sensor, accessories for Steca Tarom MPPT 6000-M and Steca Tarom

Product features

  • Automatic detection of voltage
  • Wide current measuring range
  • Potential free current measurement
  • Communicates and stores data in the Steca PA Tarcom
  • Integrated Hall sensor

Displays

  • 1 or 3 LEDs indicate operating states (Steca PA HS200/400)
  • Display via charge controller screen

Interfaces

  • StecaLink Bus (only Steca PA HS400)
  • Two RJ45 cable sockets

Modes of operation

  • "Battery": measures currents which flow through the battery cable
  • "Load": measures currents of external loads not connected to the charge controller
  • "Charge": measures currents of back-up generators
  • "Charge/discharge procedure": measures incoming and outgoing currents, e.g. for inverters with battery charger

Certificates

  • Compliant with European Standards (CE)
  • Developed in Germany

Downloads

Certificates

  •  Steca PA HS 400 certificate CE - PA HS200 · pdf · 0.860 MB

Product data sheet

  •  Steca PA HS 400 productdatasheet DE · pdf · 0,282 MB
  •  Steca PA HS 400 productdatasheet EN · pdf · 0.283 MB
  •  Steca PA HS 400 productdatasheet FR · pdf · 0,283 MB

Manuals

  •  Steca PA HS 400 manual DE PA HS200 · pdf · 0.123 MB
  •  Steca PA HS 400 manual EN PA HS200 · pdf · 0.645 MB
  •  Steca PA HS 400 manual DE PA HS400 · pdf · 0.508 MB
  •  Steca PA HS 400 manual EN PA HS400 · pdf · 0.532 MB

Product pics, technical drawings, etc.

  •  Steca PA HS 400 product pic 3D · jpg, 300 DPI, high quality · 1.299 MB
  •  Steca PA HS 400 product pic 3D · jpg, 72 DPI, web quality · 0.354 MB
  •  Steca PA HS 400 product pic · jpg, 300 DPI, high quality · 1.232 MB
  •  Steca PA HS 400 product pic · jpg, 72 DPI, web quality · 0.352 MB
  •  Steca PA HS 400 product pic drawing · jpg, 300 DPI, high quality · 0.158 MB
  •  Steca PA HS 400 product pic drawing · jpg, 72 DPI, web quality · 0.064 MB

Technical data

 PA HS200PA HS400
Characterisation of the operating performance
System voltage
10 V … 65 V
12 V … 65 V
Own consumption
< 9 mA
Measurement accuracy
(-20 A … +20 A) ±1 % (-200 A … +200 A) ±3 %
(-40 A … +40 A) ±1 % (-400 A … +400 A) ±3 %
Measuring interval
60 s
1 s
Operating conditions
Ambient temperature
-15 °C … +50 °C
-25 °C … +50 °C
Relative humidity
75 %
Fitting and construction
Interfaces
Power Tarom
StecaLink Bus (Tarom 4545/4545-48, Tarom MPPT 6000-M)
Current range "battery" mode
-200 A … +200 A
-400 A … +400 A
Current range "charge" mode
0 A … +200 A
0 A … +400 A
Current range "load" mode
-200 A … 0 A
-400 A … 0 A
Degree of protection
IP 22
Dimensions (X x Y x Z)
103 x 60 x 24 mm
140 x 80 x 28 mm
Weight
120 g
250 g
Max. diameter for battery cable
19 mm
20 mm
