Steca HPC

2800-12, 4400-24, 6000-48, 8000-48

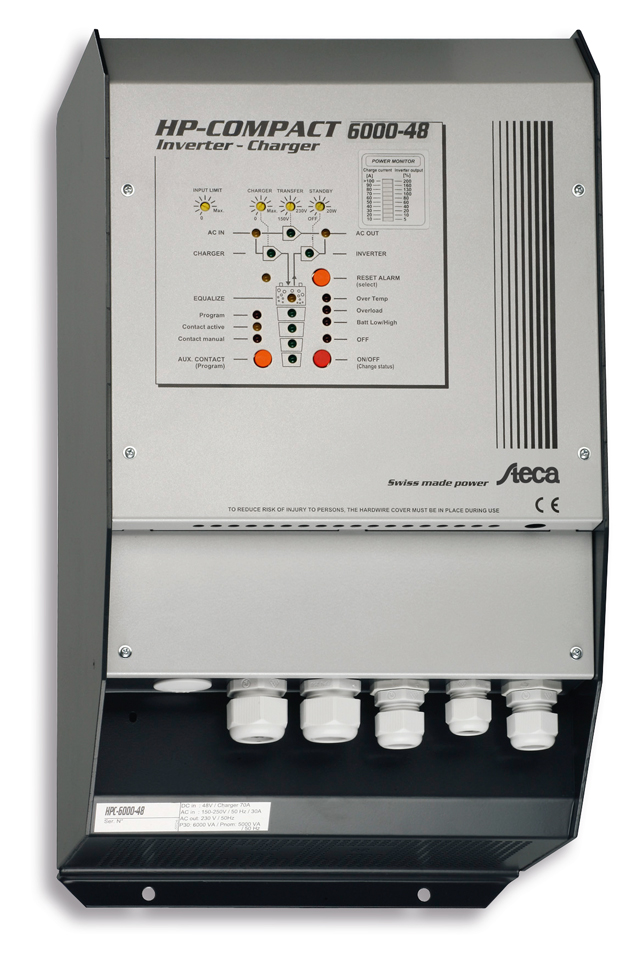

HPC6000 48 3D.jpg
X
HPC6000 48 3D

Description

The technology of the Steca HPC inverter series is based on Steca Compact devices. However, the four different types offer considerably greater power.

What’s more, Steca HPC devices are equipped with PG cable glands for strain relief and protection of all connections. The devices consist of a sine wave inverter, a battery charger, a transfer system and a potential-free multifunctional contact. They are primarily used in hybrid systems. The integrated power sharing function ensures that the transfer system always provides the connected loads with the desired power.

Features

Product features

  • True sine wave voltage
  • Excellent overload capabilities
  • Optimal battery protection
  • Adjustable integrated battery charger
  • Automatic load detection
  • Best reliability
  • Can be used as a back-up system or uninterruptible power supply (UPS)
  • Multifunction contact
  • Adjustable power sharing
  • Ultra-fast transfer relay

Electronic protection functions

  • Deep discharge protection
  • Battery overvoltage shutdown
  • Short circuit protection
  • Reverse polarity protection by internal fuse
  • Overtemperature and overload protection
  • Acoustic alarm at deep discharge or overheating

Displays

  • 17 LEDs show operating states
  • for operation, state of charge, fault messages
  • Display of power and charging current

Operation

  • Main switch
  • Adjustable load detection
  • Programming by buttons

Options

  • Type with 230 V / 60 Hz
  • Model with protective lacquered mainboard
  • Remote control RCC-01
  • Temperature sensor CT35 to correct the voltage thresholds according to the current battery temperature
  • Remote control RPS-01 for the power sharing function

Certificates

  • Compliant with European Standards (CE)
  • RoHS compliant

Downloads

Product data sheet

  •  Steca HPC productdatasheet DE · pdf · 0,240 MB
  •  Steca HPC productdatasheet EN · pdf · 0.240 MB
  •  Steca HPC productdatasheet FR · pdf · 0,240 MB
  •  Steca HPC productdatasheet IT · pdf · 0,240 MB

Manuals

  •  Steca HPC manual DE, EN · pdf · 2.895 MB
  •  Steca HPC manual FR, ES · pdf · 2.880 MB
